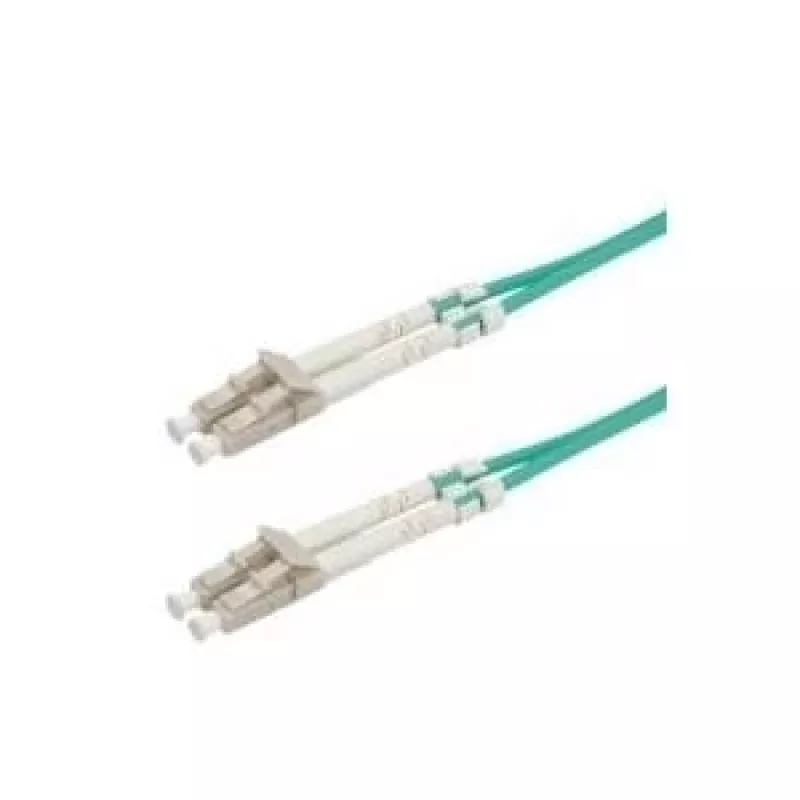

Glasvezel-jumperkabel ROLINE 50/125µm OM3 LC/LC Low-Loss 20m

FO Jumper Cable ROLINE 50/125µm OM3 LC/LC Low-Loss 20m is a duplex multimode fiber patch cord with OM3 50/125µm fiber and LC connectors on both ends. The 20 m length and low-loss LC connectors minimize insertion loss and reflections, making the cable suitable for high-bandwidth applications in data centers and office networks. The cable is manufactured to ROLINE quality standards and comes in the standard turquoise color for OM3 fibers.

Advantages

The cable uses OM3 multimode fiber and low-loss LC/LC connectors to provide very low insertion loss and improved return loss compared with standard connectors. Typical attenuation of a standard LC connector is 0.5 dB, while a low-loss LC connector typically achieves around 0.15 dB. Materials and assembly follow ROLINE quality control to ensure consistent performance and durability.

Suitable for

• High-speed short- to medium-range links within data centers
• Interconnects between network switches, patch panels and servers
• Office LAN backbone connections and structured cabling

Key specifications

• Fiber type: Multimode 50/125 µm, OM3
• Connector type: LC to LC, duplex
• Connector variant: Low-loss LC
• Length: 20 m
• Color: Turquoise
• Brand: ROLINE
• MPN: 21.15.8830
• EAN: 7611990110797

How to use

Route the duplex FO jumper between the required equipment ports, ensuring the LC connectors align with the device adapters. Avoid tight bends by respecting the minimum bend radius for multimode fiber and secure the cable to prevent strain on the connectors. Clean connector endfaces before insertion to maintain low insertion loss and reliable signal transmission.

Recommendations

For best performance, use the cable in short- to medium-range multimode OM3 links, keep connector endfaces clean and handle the cable to avoid sharp bends and mechanical stress. Match connector types and polarity when installing duplex runs.
