Glasvezel-kabelsplitter Extralink 1:2 FBT SC/UPC 25:75, 900µm, 1m

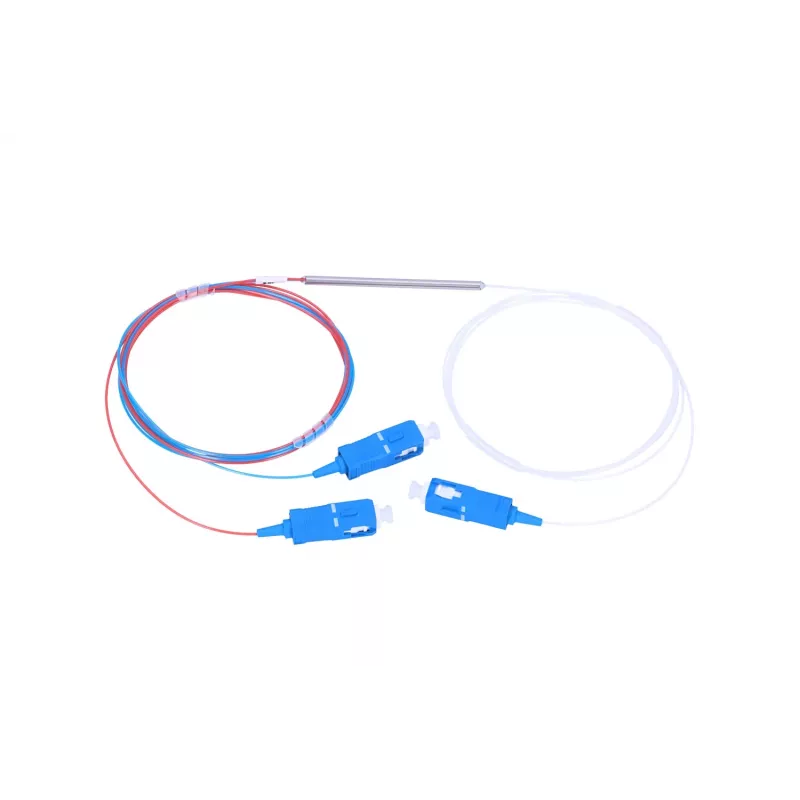

EXTRALINK Fiber Optic Splitter FBT 1:2 25:75 0.9mm with SC/UPC connectors is an FBT-type passive optical splitter designed for FTTH networks. It distributes an optical signal asymmetrically in a 1:2 ratio (25:75) and connects with SC/UPC connectors. The splitter is built on a thin 0.9 mm pigtail cable and is housed in a compact steel tube for convenient mounting in switches and fiber organizers. The product is supplied in a blister pack to prevent cable tangling.

Advantages

The EXTRALINK FBT splitter provides passive, reliable signal distribution without additional power requirements, suitable for FTTH deployments where the medium remains optical from the server to the subscriber. Its asymmetric 25:75 split enables flexible bandwidth allocation between two outputs. The thin 0.9 mm pigtail and compact steel tube housing simplify installation in fiber organizers and couplers, while SC/UPC connectors ensure standard fibre connections.

Key specifications

• Length: 1 m
• Number of splitter ends: 1x2 (one input, two outputs)
• Power distribution ratio: 25:75 (asymmetric)
• Cable diameter: 0.9 mm
• Splitter case type: Steel tube
• Cable material: Polyvinyl chloride (PVC)
• Connector type: SC/UPC, total connectors: 3
• Colors: Blue, White

How to use

Connect the input SC/UPC connector to the upstream optical source (OLT or patch panel) and connect the two output SC/UPC connectors to the downstream subscriber fibers or distribution patch panel according to the desired 25:75 allocation. Route the 0.9 mm pigtail carefully through organizers to avoid sharp bends. Secure the splitter housing within a switch or fibre organizer using appropriate clamps or mounting points. Verify optical continuity and power levels after installation.

Recommendations

Handle fiber connectors and pigtails with care to avoid contamination or bending losses. Clean SC/UPC connectors before mating and use appropriate test equipment to confirm signal levels. Store the splitter in its blister pack until installation to prevent damage and tangling.
