Glasvezel-lasbox Digitus DN-96322/9

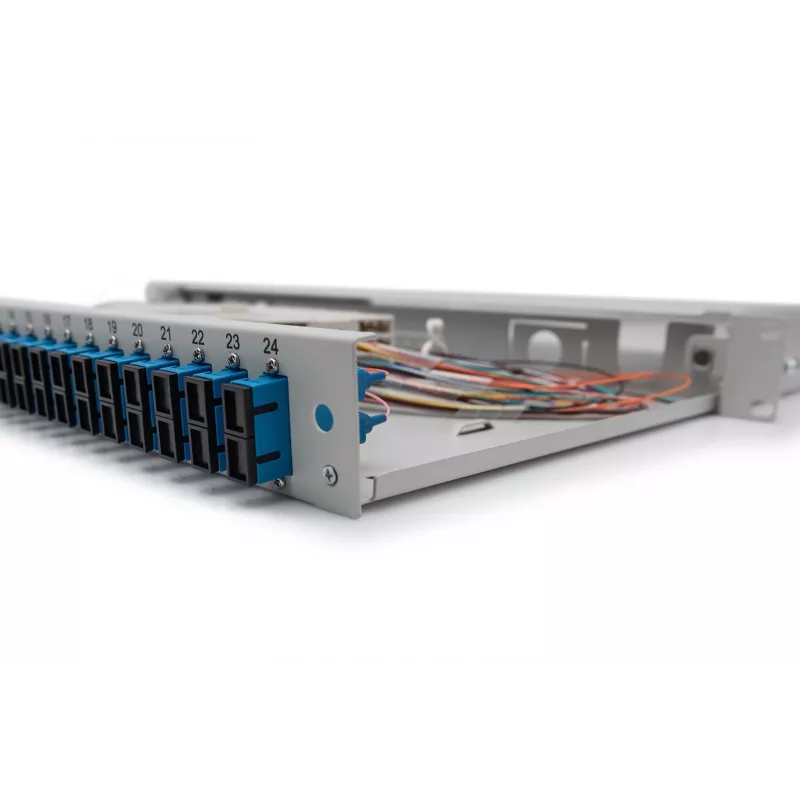

The Fiber Optic Splice Box Digitus DN-96322/9 is a prefabricated splice enclosure designed for SC connectors and fiber pigtails. It features colored, exposed fiber pigtails that are routed into splice cassette(s) and a sliding cassette design. The box has couplers with ceramic sleeves housed in polymer bodies and a sheet-steel carrier housing with varnish finish. The unit is intended for rack mounting (1U, 19") and includes PG 16 screw, cassette, cassette cover and strain relief.

Advantages

The splice box provides a pre-assembled solution that simplifies fiber termination and splicing operations. Colored pigtails aid in identification during installation and maintenance. Ceramic-sleeved couplers ensure precise fiber alignment and low insertion loss, while the steel carrier housing delivers mechanical protection and durability. Included accessories (cassette, cover, strain relief) support immediate installation.

Suitable for

• Rack-mounted fiber distribution in data centers and telecom racks
• Organizing and protecting SC fiber connections
• Fiber splicing and termination points in structured cabling

Key specifications

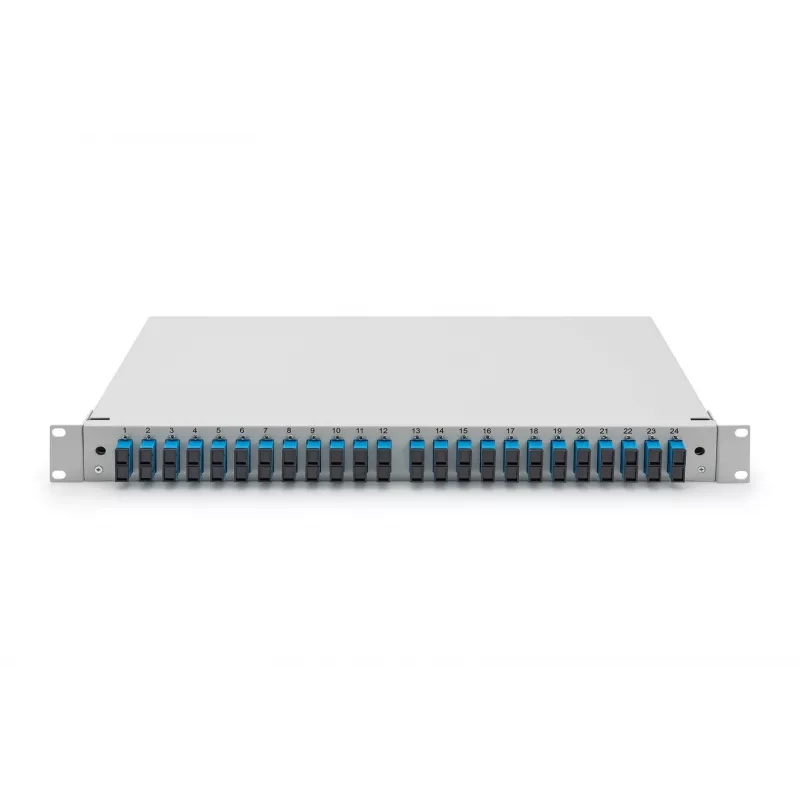

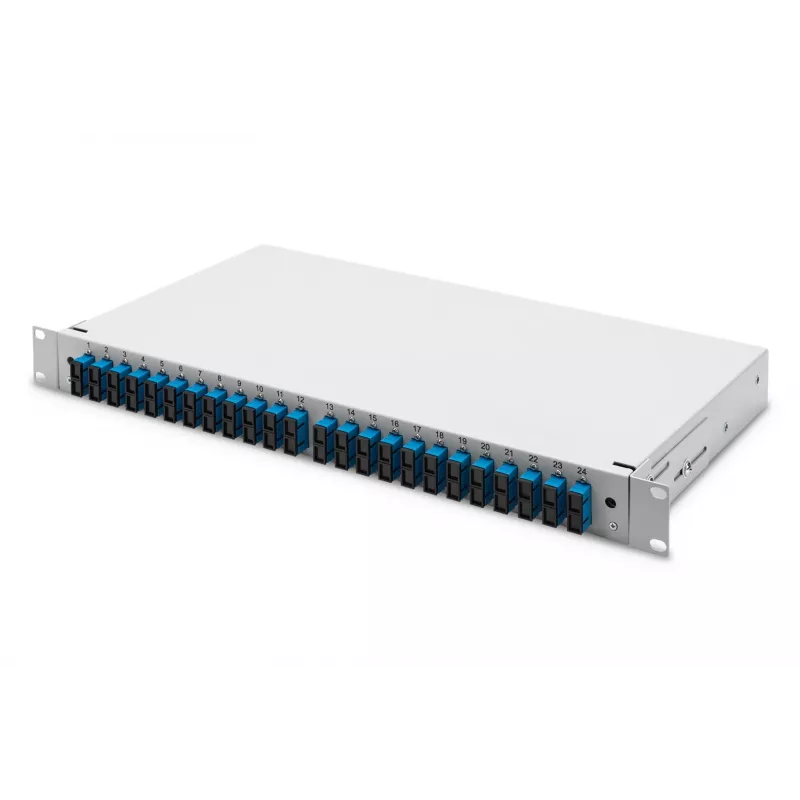

• Form factor: 1U rack-mount (19")
• Width: 483 mm (19")
• Depth: 280 mm
• Carrier housing material: 1.5 mm sheet steel, varnished

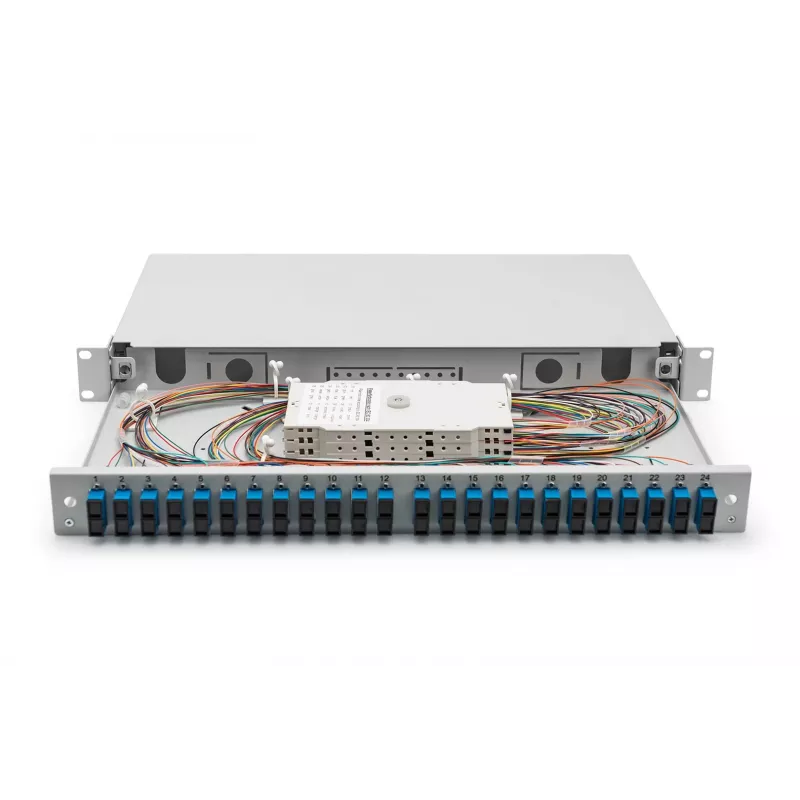

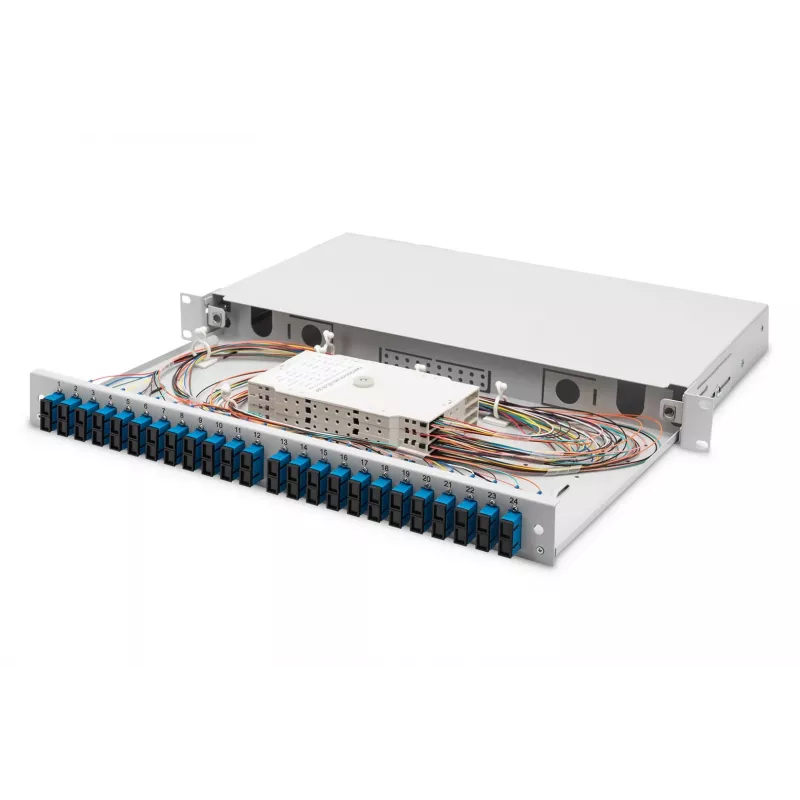

• Cassette: sliding design; supports prefabricated fiber pigtails routed into splice cassette(s)
• Couplers: ceramic sleeve in polymer housing suitable for SC connectors

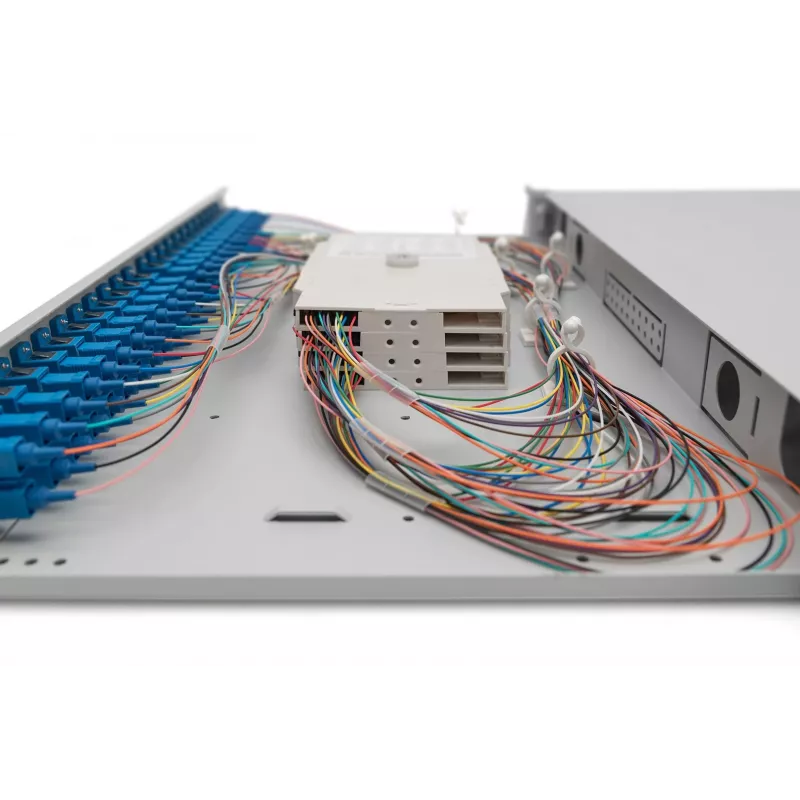

• Fiber pigtails: colored, exposed and inserted into splice cassette(s)
• Accessories included: PG 16 screw, splice cassette, cassette cover, strain relief

How to use

Mount the 1U enclosure into a 19" rack using appropriate rack screws. Slide out the cassette, route incoming fibers and prefabricated colored pigtails into the splice cassette(s), perform splicing inside the cassette, and close the cassette with the supplied cover. Insert SC couplers into the front panel openings as required. Use the included strain relief and PG 16 screw to secure incoming cable entries and prevent mechanical stress on splices.

Recommendations

Install and handle fiber pigtails and splices in a clean environment; follow standard fiber-optic safety practices. Use appropriate tools for splicing and ensure connectors and couplers are clean before mating to maintain low insertion loss.
