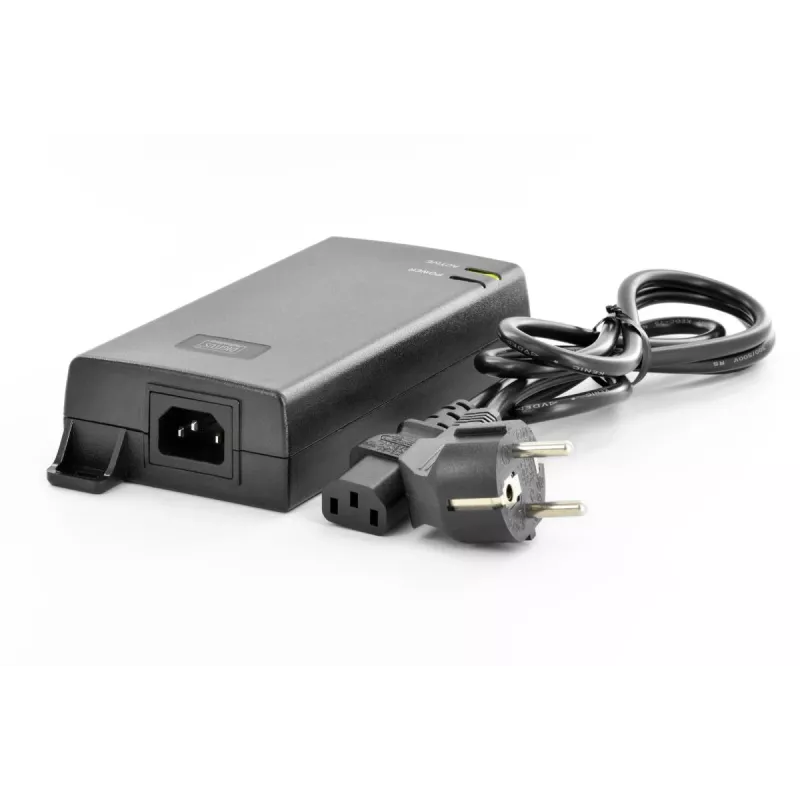

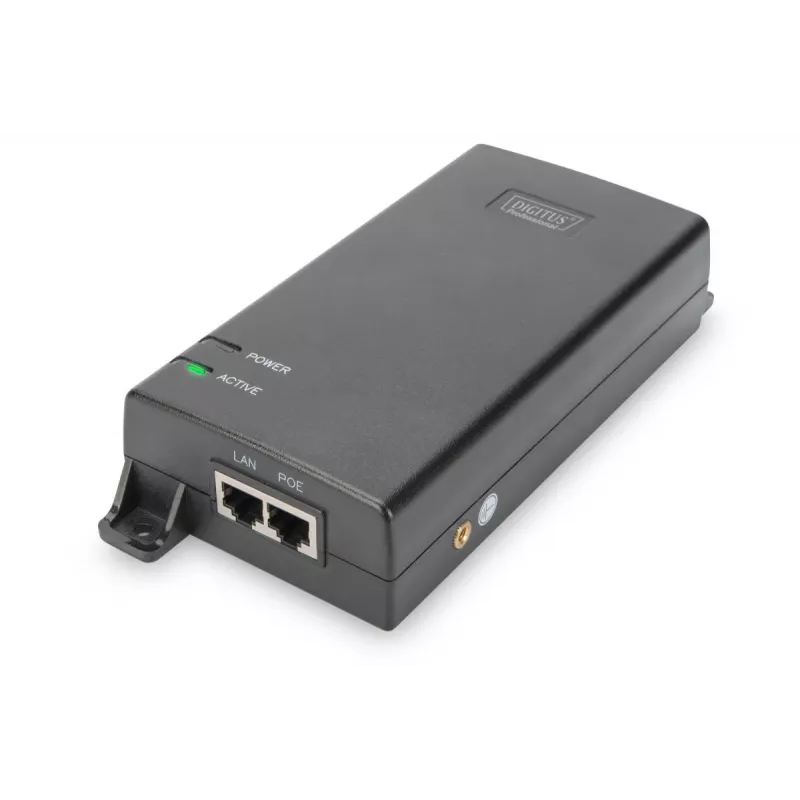

PoE-injector Digitus DN-95104

The Digitus PoE Injector DN-95104 supplies power and data over a single Ethernet cable, reducing the need for separate power cabling when installing PoE-ready devices such as wireless access points, IP phones and network cameras. It is fully compliant with IEEE 802.3af and 802.3at (Ultra PoE) standards and provides up to 60 W output while supporting Gigabit Ethernet data rates (10/100/1000 Mbit/s). The compact injector (193 x 85 x 41 mm, 0.38 kg) operates at 55 V and simplifies deployment in locations without nearby power outlets.

Advantages

The injector merges power and data into a single cable, eliminating the need for separate power wiring and enabling network extension to areas without power sockets. It conforms to 802.3af/at standards, delivers up to 60 W of output, and includes built-in protection features: current limiting, a short-circuit fuse, and automatic device recognition and classification. No special setup is required — simply connect the Ethernet cables and the unit begins delivering power and data.

Suitable for

• Powering Wireless Access Points (Wi‑Fi APs)
• Supplying IP phones
• Feeding PoE-ready network cameras
• Connecting other PoE devices such as VoIP equipment and small switches

Key specifications

• Standards: IEEE 802.3af and IEEE 802.3at (Ultra PoE)
• Output power: up to 60 W
• PoE voltage: 55 V
• Data rates: 10/100/1000 Mbit/s (Gigabit Ethernet)

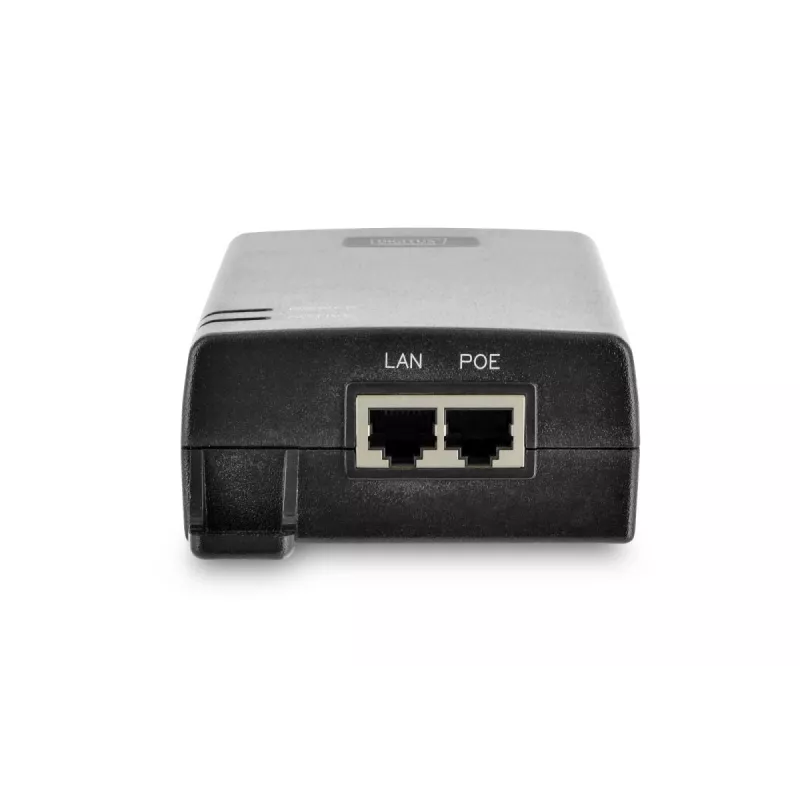

• Ports: 2 × RJ‑45 (LAN/data + PoE out)
• Maximum recommended cable distance: up to 400 m (depending on cable and device)
• Dimensions: 193 × 85 × 41 mm
• Weight: 0.38 kg
• Colour: Black

How to use

Connect the injector’s data input port to your network switch or router using a standard Ethernet cable. Connect the injector’s PoE output port to the PoE-ready device (AP, IP phone, camera) with a second Ethernet cable. Plug the injector into AC mains power. The injector will automatically recognize and classify the connected device and begin supplying power and data over the single Ethernet cable. No additional configuration is required.

Recommendations

Use quality Cat5e/Cat6 cables for optimal Gigabit performance and minimal voltage drop; verify device PoE class and power requirements to ensure the injector’s 60 W output is sufficient for connected equipment.
