Glasvezel-transceiver BlueOptics GXPVT2K-BO 100000 Mbit/s QSFP28

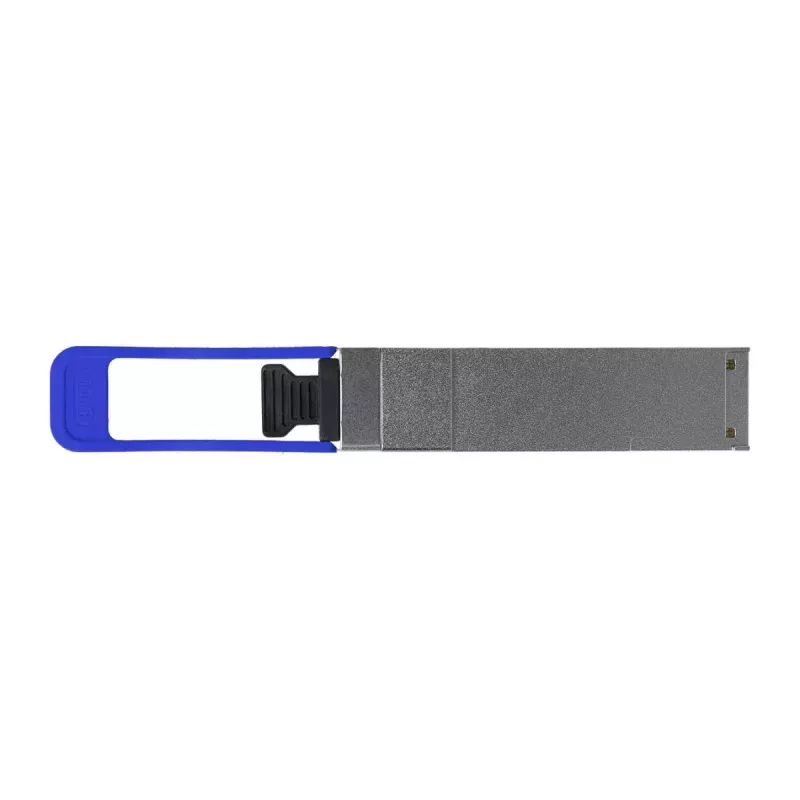

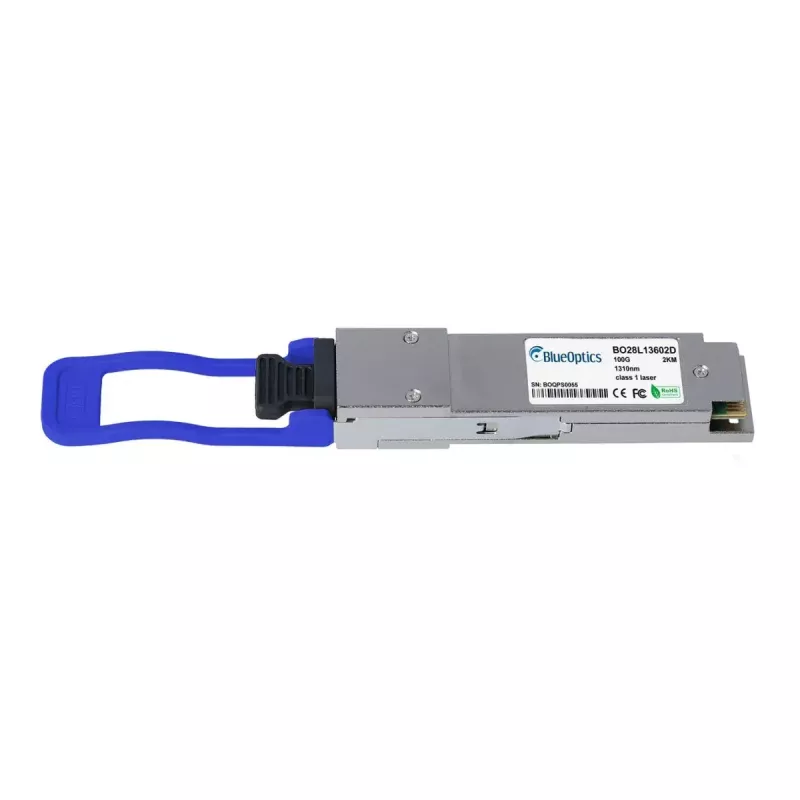

The BlueOptics GXPVT2K-BO is a QSFP28 fiber optic transceiver module designed for 100G networks. It supports a maximum data transfer rate of 100000 Mbit/s and uses LC duplex fiber connectors. The module has a silver housing, a compact QSFP28 form factor and a lightweight construction of approximately 40 g. With a specified MTBF of 3,000,000 hours and a maximum optical reach of up to 2000 m, the transceiver is intended for high-speed, reliable optical links in data center and enterprise environments.

Advantages

The transceiver conforms to QSFP28 MSA form-factor standards and provides a 100GBASE-CWDM4 optical interface with LC duplex connections, enabling interoperable installation in compatible network equipment. Its high MTBF indicates long-term operational reliability while the small QSFP28 module size allows dense port populations in switches and routers. The silver metal housing provides mechanical protection and assists with heat dissipation during continuous operation.

Suitable for

Key specifications

How to use

Install the BlueOptics GXPVT2K-BO transceiver into a compatible QSFP28 slot on the target network device following the vendor's hot-swap and handling guidelines. Connect LC duplex fiber cables to the module’s LC ports, ensuring correct polarity and secure latching. Configure the host device for 100G operation as required by the network design and verify link status and optical parameters through the device management interface. Take electrostatic discharge precautions and avoid touching the optical ferrules to prevent contamination.

Recommendations

For reliable long-term operation, use clean LC connectors and appropriate fiber types rated for CWDM4 optics, maintain proper ambient temperature and airflow around equipment, and verify compatibility with the host device firmware. Use diagnostic tools to monitor signal levels and replace the module if optical performance degrades or if the host indicates incompatibility.
