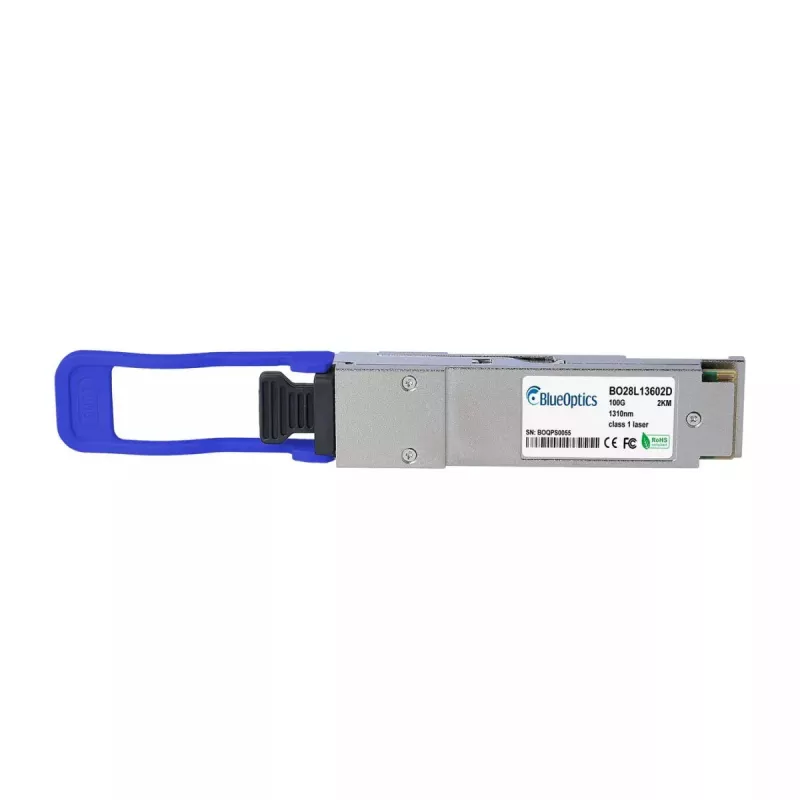

Glasvezel-transceiver BlueOptics Q28-513-BO 100000 Mbit/s QSFP28

The BlueOptics Q28-513-BO is a QSFP28 fiber optic transceiver module designed for high-speed networking environments. Supporting a maximum data transfer rate of 100000 Mbit/s, this compact module comes in a durable metal housing with a silver-and-blue finish and weighs approximately 40 g. Designed to meet MSA QSFP28 mechanical and electrical standards, the module supports single-mode fiber links and common 100G transmission protocols for short to medium reach applications.

Advantages

The transceiver offers a high data rate of up to 100 Gbit/s in a QSFP28 form factor and is built for reliability with an MTBF of 1,000,000 hours. Its metal housing provides mechanical robustness and thermal dissipation. The module implements standard-compliant optics and electrical interfaces, enabling interoperability with equipment that supports QSFP28 modules. Digital diagnostics monitoring (DDM/DOM) is supported for remote measurement of key operating parameters, simplifying maintenance and troubleshooting.

Suitable for

• 100G Ethernet aggregation and core links
• Fiber Channel over Ethernet and high-speed storage interconnects
• Data center switch-to-switch connections and spine/leaf architectures
• Telecom and enterprise router uplinks requiring QSFP28 modules

Key specifications

• Form factor: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Optical medium: single-mode fiber
• Connector type: LC duplex (CWDM optics)
• Housing: metal, silver/blue color
• Weight: 0.04 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Supports digital diagnostics monitoring (DDM/DOM)

How to use

Insert the QSFP28 transceiver into a compatible QSFP28 slot on the network switch, router or other supported hardware while following the host device vendor’s insertion and hot-swap guidelines. Connect LC duplex single-mode fiber patch cords to the module’s optical ports, ensuring correct polarity for transmit and receive channels. Verify that the host device accepts third-party transceivers and enable any required software or firmware settings for CWDM-based 100G links. Use the device management interface to monitor DDM/DOM parameters and confirm link status and optical power levels.

Recommendations

For reliable operation, use single-mode LC duplex patch cords rated for 100G CWDM applications and route fibers to minimize bending and stress. Confirm compatibility with the host hardware and keep firmware updated to ensure DDM/DOM reporting and link negotiation work correctly. For deployments in demanding environments, allow adequate ventilation around the metal housing to support heat dissipation.
