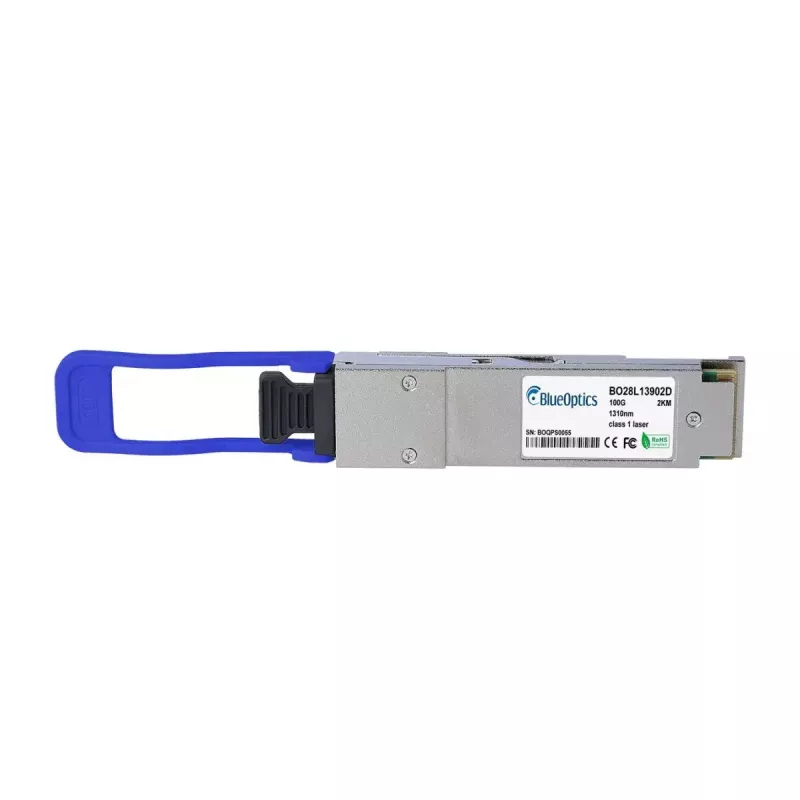

Glasvezel-transceivermodule BlueOptics 02311MNM-BO QSFP28 MTP MPO

The BlueOptics 02311MNM-BO QSFP28 MTP MPO is a fiber optic transceiver module designed for high-speed 100G data transmission over single-mode fiber. The module uses a QSFP28 interface with an MTP/MPO connector and is housed in an aluminium enclosure weighing approximately 40 g. It implements the 100GBASE-PSM4 optical format and supports transmission distances suitable for short-reach single-mode links when used with appropriate cabling and infrastructure.

Advantages

The transceiver offers a compact QSFP28 form factor compatible with standard MSA interfaces, enabling high port density in switches and routers. Its aluminium housing provides mechanical durability and thermal dissipation while maintaining a low weight for easy handling and installation. The MTP/MPO connector simplifies multi-fiber connections and reduces installation time in dense fiber environments. The module supports digital diagnostics monitoring for real-time information on operating parameters when the host hardware provides DDM/DOM support.

Suitable for

• 100G uplinks between switches and data center aggregation points
• High-speed links in enterprise and carrier networks
• Interconnects for storage systems and blade chassis requiring QSFP28
• Short to medium single-mode fiber links using MTP/MPO cabling

Key specifications

• Interface type: QSFP28
• Optical format: 100GBASE-PSM4 (single-mode fiber)
• Connector: MTP / MPO
• Housing material and colour: aluminium
• Weight: approx. 0.04 kg
• Supports digital diagnostics monitoring (DDM/DOM) when enabled by host hardware

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network equipment that supports 100GBASE-PSM4 modules. Plug an MTP/MPO single-mode patch cord into the module to connect to a patch panel, another transceiver or fiber backbone. Verify link status and diagnostics through the host hardware management interface; if Digital Diagnostics Monitoring is supported and enabled, use it to monitor voltage, temperature and optical power levels. Follow your equipment vendor’s hot-plug and ESD handling procedures during installation and removal.

Recommendations

Use high-quality single-mode MTP/MPO patch cords and proper fiber management (patch panels or trunking) to achieve optimal signal quality and range. Ensure the host platform officially supports 100GBASE-PSM4 QSFP28 modules and that firmware or software settings permit third-party transceivers if required. Handle the transceiver with ESD protection and keep connector endfaces clean to avoid signal loss.
