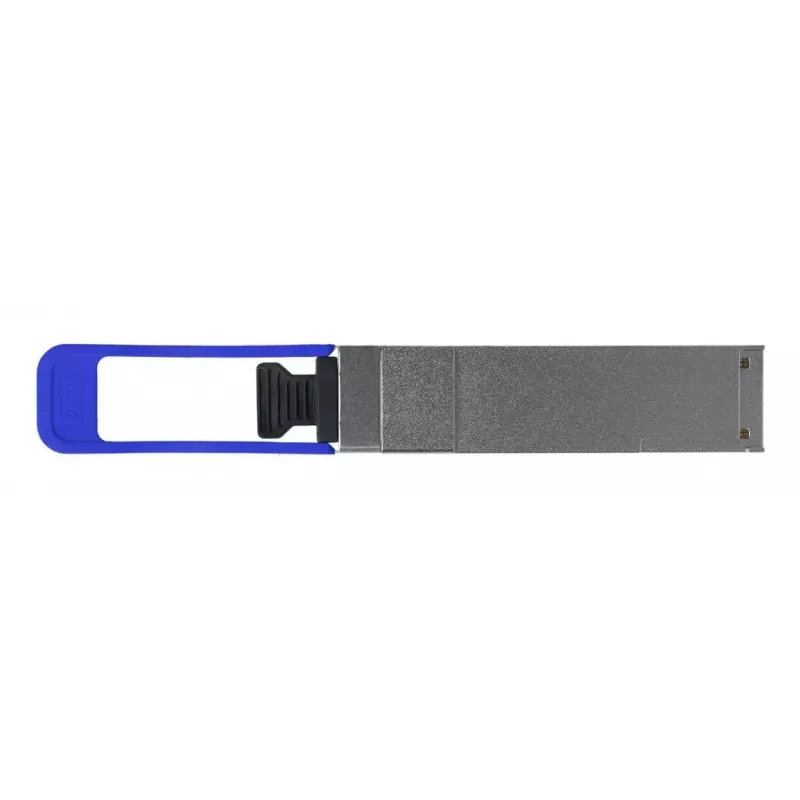

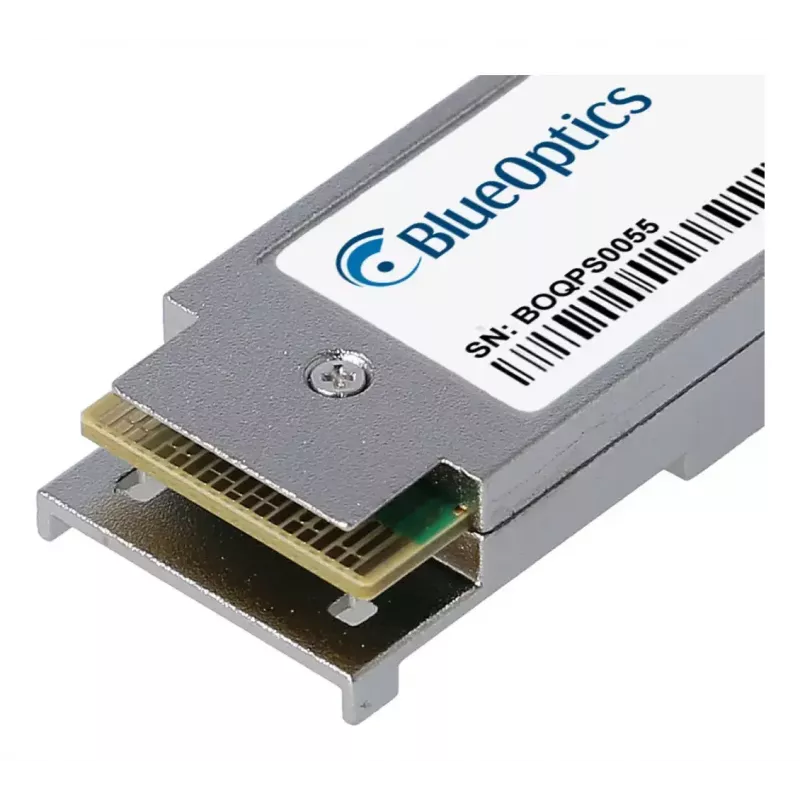

Glasvezel-transceivermodule BlueOptics Q28-506-BO 100000 Mbit/s QSFP28

The BlueOptics Q28-506-BO 100000 Mbit/s QSFP28 is a fiber optic transceiver module designed for high-speed optical links in data centers and enterprise networks. Supporting 100GBASE-PSM4 transmission over MPO/MTP multimode fiber, this QSFP28 module follows MSA-compatible form factors and provides simultaneous transmit and receive channels with CWDM functionality. The module is finished in a silver housing and weighs approximately 40 g. Tested for compatibility with common hardware platforms, it includes digital diagnostics for real-time monitoring of key optical and electrical parameters and is engineered for long operational life with an MTBF of 3,000,000 hours.

Advantages

The module delivers 100 Gbit/s aggregate throughput in a QSFP28 form factor, enabling high-density 100G links while remaining compatible with MPO/MTP cabling standards. Integrated CWDM transmit and receive functions and a Digital Diagnostics Monitoring (DDM/DOM) interface simplify installation, monitoring and troubleshooting. Components are selected to meet MSA requirements and provide long service life and stable performance in demanding network environments.

Suitable for

Key specifications

How to use

Install the BlueOptics Q28-506-BO QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network device that supports 100GBASE-PSM4 MPO/MTP modules. Connect MPO/MTP patch cables to the module and the corresponding remote transceiver or patch panel. If your hardware platform supports DDM/DOM, enable the diagnostics interface to monitor voltage, laser bias current, transmit and receive power, and temperature in real time. Ensure devices at both ends support the same transmission protocol and fiber type before commissioning.

Recommendations

Use quality MPO/MTP multimode fiber cables and matching patch panels to achieve optimal signal integrity. Verify compatibility with the host device firmware and enable DDM/DOM only if supported by both the transceiver and the chassis. For long service life and reduced failure risk, avoid mechanical strain on the connector and maintain appropriate ambient temperature and handling procedures during installation.
