Glasvezel-transceivermodule BlueOptics SPTSBP2PMCXX-BO 100000 Mbit/s QSFP28

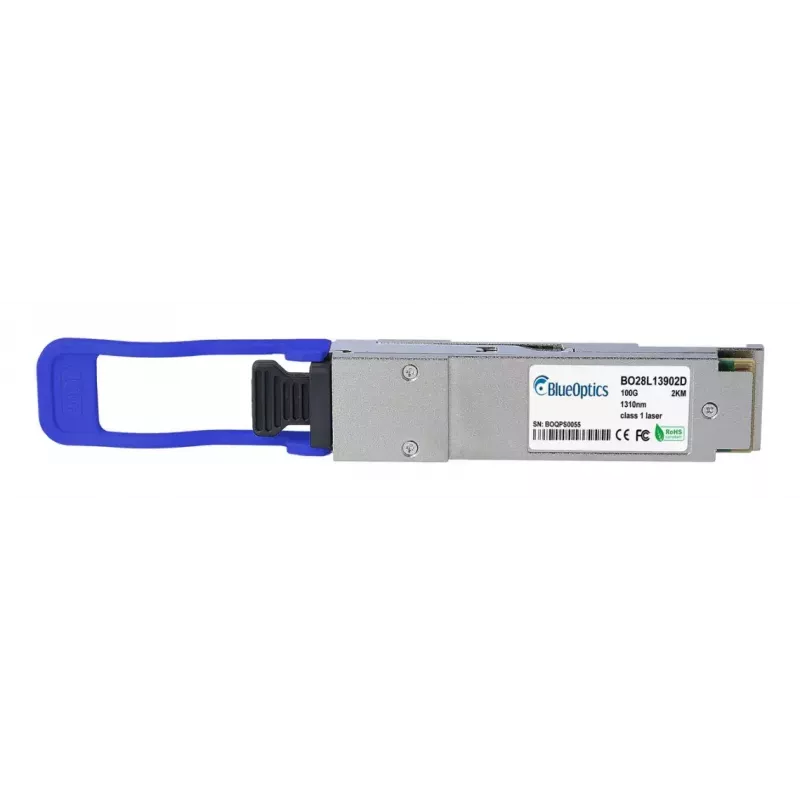

The BlueOptics SPTSBP2PMCXX-BO is a QSFP28 fiber optic transceiver module designed for high-speed optical links with a maximum data transfer rate of 100000 Mbit/s. It uses a QSFP28 form factor and an MPO/MTP connector for single‑mode fiber links, supporting 100GBASE-PSM4 transmission over short single‑mode distances. The module is silver in colour, weighs approximately 0.04 kg and is built to meet MSA-compliant form‑factor and interface standards.

Advantages

This QSFP28 transceiver supports up to 100 Gbit/s optical transmission and is compatible with systems that accept 100GBASE-PSM4 QSFP28 modules. The module integrates CWDM-based transmitter and receiver optics for single‑mode fiber and includes Digital Diagnostics Monitoring (DDM/DOM) functionality for remote measurement of supply voltage, laser bias current, transmit power, receive power and temperature. The product is manufactured to MSA standards and uses industry-grade components to deliver a long operational lifetime and a high mean time between failures.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 slot on a switch, router or other network device that supports 100GBASE-PSM4 modules. Connect a compatible MPO/MTP single‑mode fiber patch cord to the transceiver and to the corresponding port or patch panel. Ensure the host hardware supports DDM/DOM if you intend to use digital diagnostic features. Follow the equipment vendor's hot‑swap and handling guidelines to avoid ESD damage and to maintain optical connector cleanliness.

Recommendations

Use high‑quality MPO/MTP single‑mode patch cords and clean connectors before mating to achieve optimal optical performance. Verify compatibility with the host device firmware and enable DDM/DOM monitoring where available to monitor link health. Store spares in anti‑static packaging and avoid exceeding the recommended operating temperature and handling limits.
