Glasvezel-zendontvangstmodule BlueOptics SFP-GIG-BB LX+/LC EEC-BO 40000 m

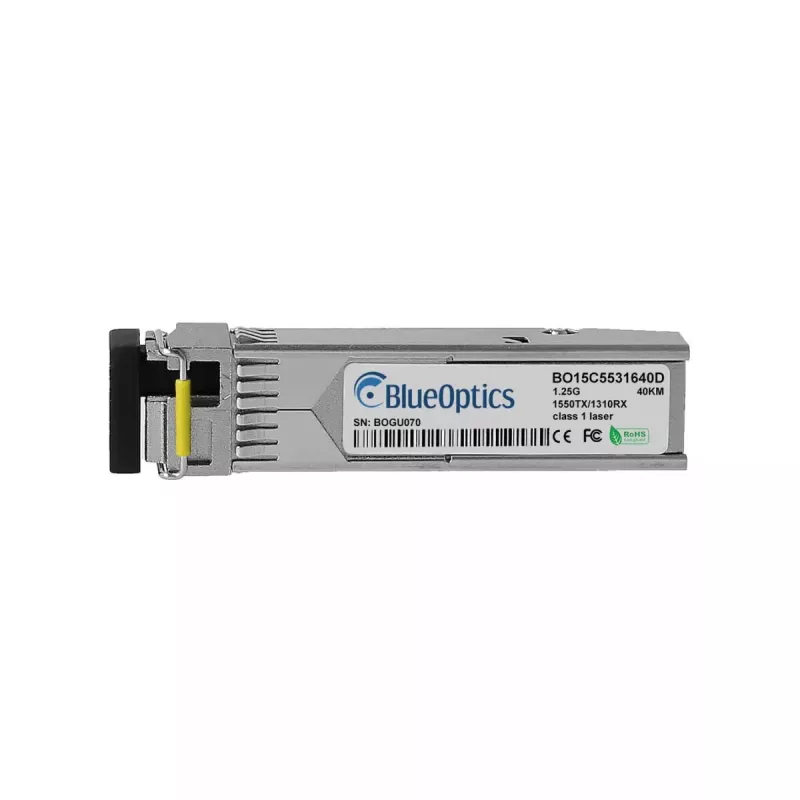

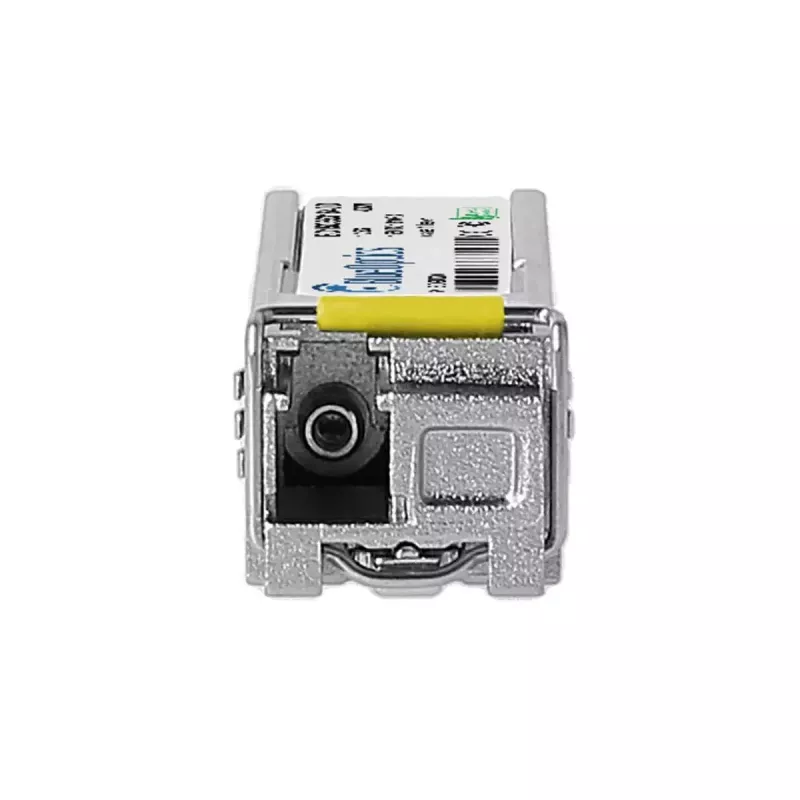

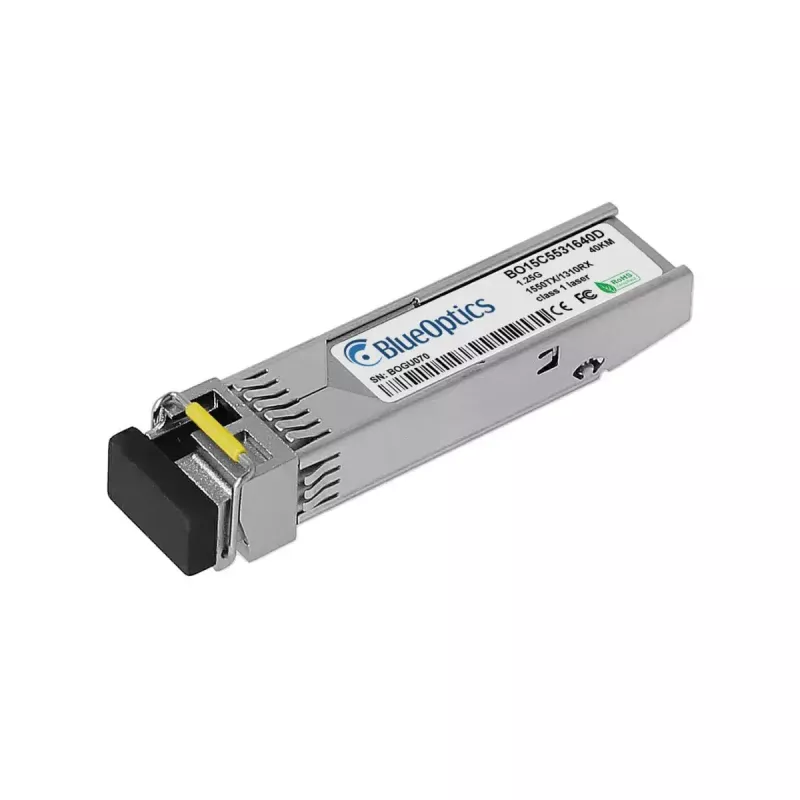

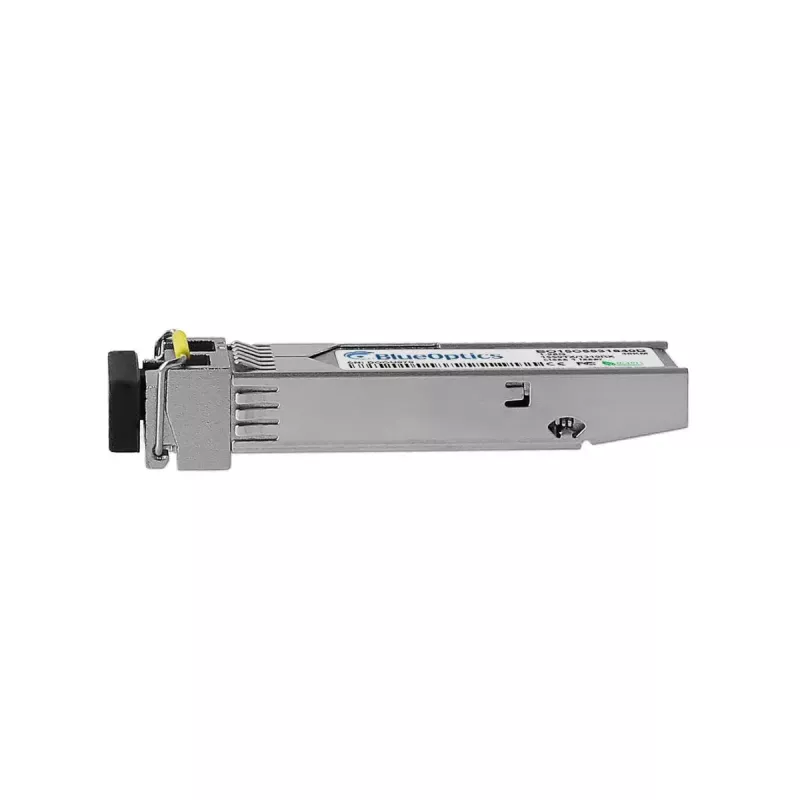

The BlueOptics SFP-GIG-BB LX+/LC EEC-BO is a single-mode fiber optic transceiver module designed for 1000BASE-BX-D optical links. It supports one transmit wavelength and one receive wavelength for bidirectional operation over a single fiber and is intended for long-reach connections up to 40,000 m. The module is housed in an aluminium body, weighs approximately 20 g and uses an LC simplex connector compatible with MSA-compliant SFP ports.

Advantages

This transceiver provides long-distance single-mode operation with support for common Ethernet and carrier-grade protocols at up to 1.25 Gbit/s. The compact SFP form factor and aluminium housing ensure lightweight installation and mechanical stability. Digital Diagnostics Monitoring (DDM/DOM) support enables remote monitoring of operating parameters such as supply voltage, laser current, optical transmit and receive power, and temperature when the host hardware supports these features. The module is manufactured to MSA standards for broad interoperability with supported networking equipment.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-GIG-BB LX+/LC EEC-BO into an SFP-compatible port on the host device following the host vendor's hot-plug procedures. Connect an LC simplex single-mode patch cable to the module and to the remote transceiver; ensure transmit and receive fibers are correctly crossed according to the BX-D topology. Verify link status on both ends and, if required, enable or read DDM/DOM parameters from the host management interface to monitor voltage, laser bias, optical power and temperature. Confirm that the host hardware supports the required protocol and diagnostic functions before deployment.

Recommendations

Use high-quality single-mode patch cords and, if deploying over many kilometers, verify end-to-end attenuation and dispersion budgets. Ensure compatibility with the host device's supported SFP transceivers and check for DDM/DOM support if remote diagnostics are needed. Store and handle the transceiver and fiber connectors to avoid contamination and mechanical stress.
