Glasvezeladapter InLine 89989O LC/LC SM bus/bus groen

Duplex LC/LC coupler with integrated shutter– for secure and clean fiber optic connections
Fits simplex SC cut-outs– maximum compatibility with common patch panels
Ceramic sleeves– ensure precise fiber routing and minimal muffling
Robust metal bracket– ensures a tight fit during assembly
UL 94V0 housing with laser safety shield– for the highest safety requirements

The InLine® fiber optic duplex coupler with LC/LC connectors in single-mode design is the ideal solution for reliable fiber optic connections in professional networks. It enables a precise and stable connection of two LC cables with minimal attenuation - ideal for structured cabling in data centers, industrial applications or telecommunications environments.The coupler is suitable for simplex SC cut-outs and can therefore be flexibly integrated into existing patch panels. A key safety feature is the permanently installed laser protection shutter, which prevents light from escaping when the port is unused. The high-quality ceramic sleeve enables optimum alignment of the fibers and ensures low-loss signal transmission. The flame-retardant plastic housing in accordance with UL 94V0 and the integrated metal bracket offer additional stability and fire protection.Additional technical specifications:

Type: Duplex LC/LC coupling
Mode: Singlemode
Color: green
Suitable for simplex SC cut-outs

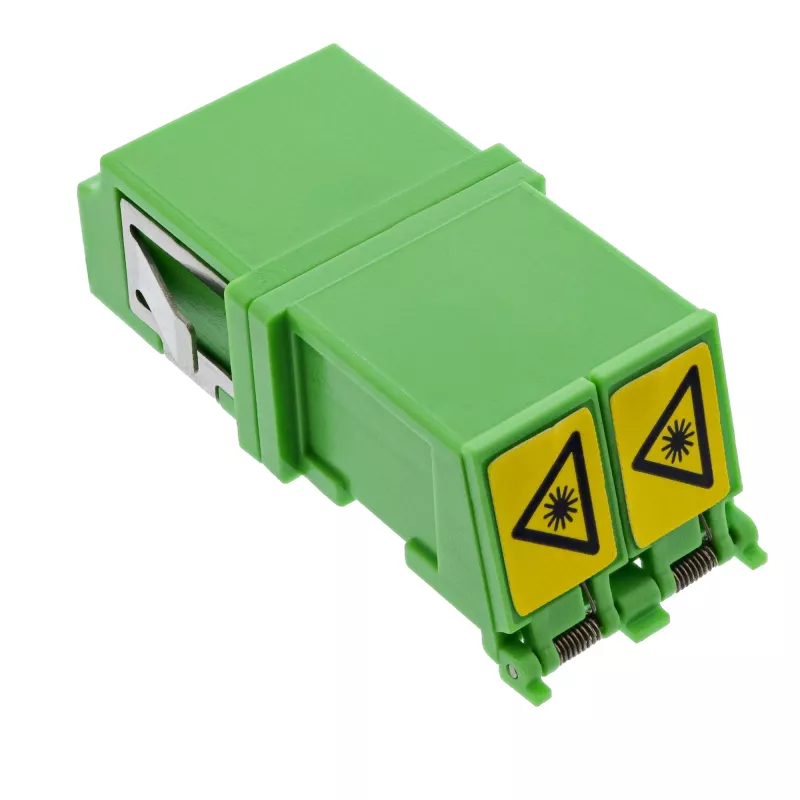

Shutter: External, non-removable laser safety shutter
Housing material: PC according to UL 94V0
Shell material: ceramic

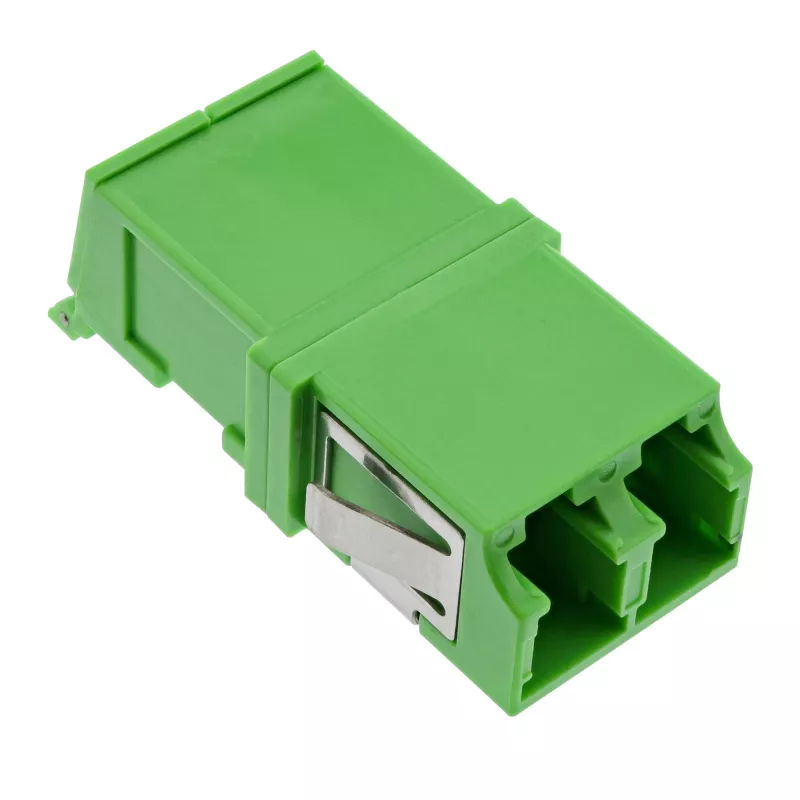

Fastening: With metal bracket

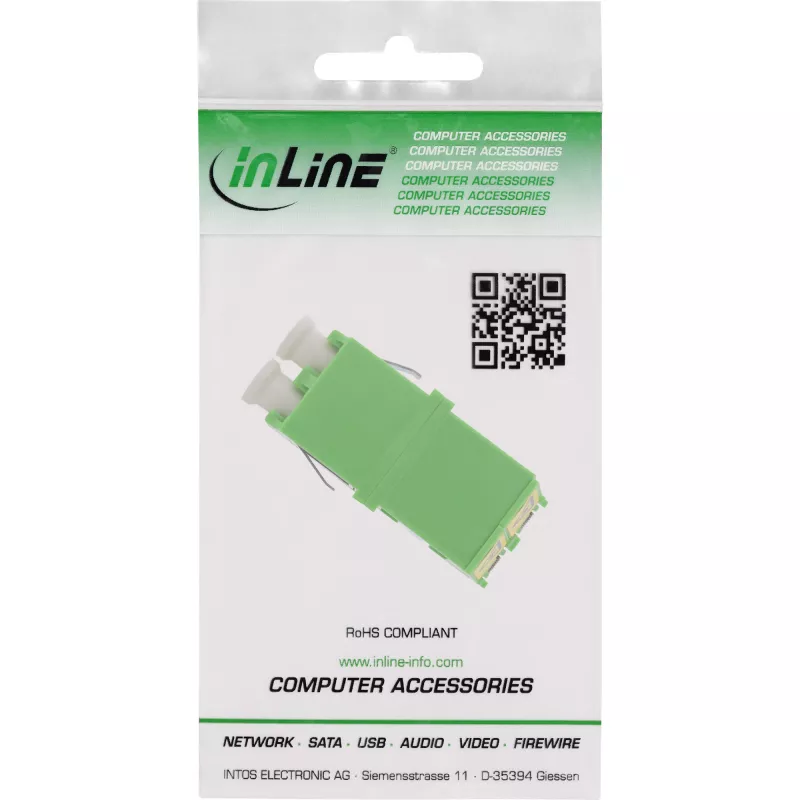

Includes: Dust protection cap (white)

InLine Fiber Optical Adapter Duplex LC/LC SM Ceramic Sleeve green ext. shutter. Connector type: LC, Product colour: Green, Fiber mode structure: Single-mode. Width: 15 mm, Depth: 30 mm, Height: 10 mm. Package width: 70 mm, Package depth: 120 mm, Package height: 10 mm. Country of origin: Germany

How to use

Align the LC plug with the adapter opening and insert until it clicks, ensuring the ferrule seats in the ceramic sleeve. For duplex connections, align both LC connectors with the adapter’s duplex openings. When removing plugs, press the latch and pull straight out to avoid damaging the ferrule or sleeve. Keep dust caps or the external shutter closed when the adapter is not in use to protect the internal sleeve.

Recommendations

Inspect fibre endfaces with a microscope before connection, clean with appropriate fibre-cleaning tools if contamination is found, and store the adapter in its polybag when not installed to maintain cleanliness and performance.
