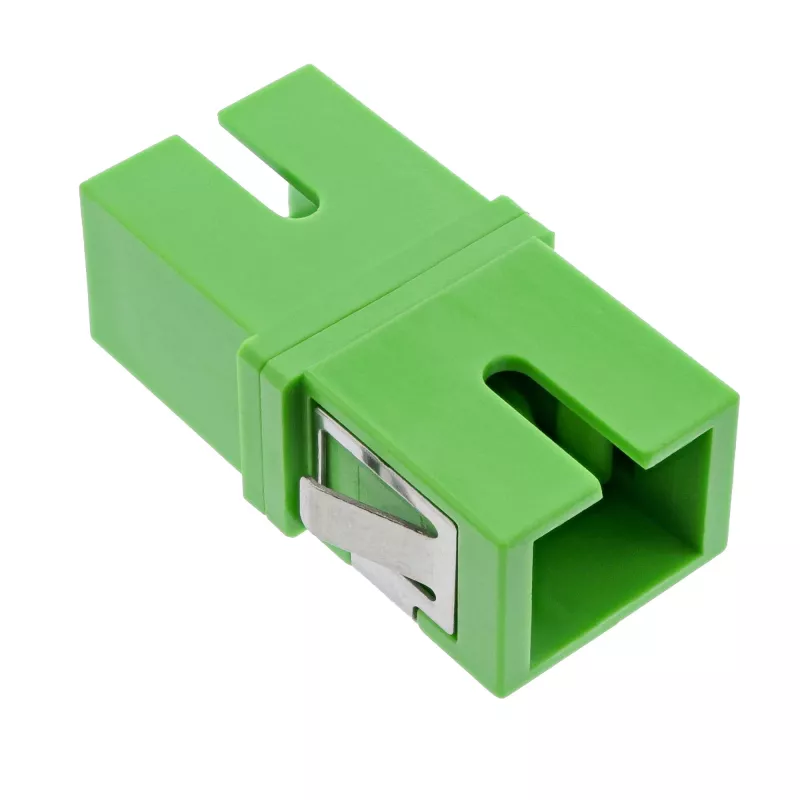

Glasvezeladapter InLine 89992G simplex SC/SC SM groen

SC/SC simplex coupler with internal laser safety shutter– for maximum safety with unused ports
Ceramic sleeve for precise alignment– reduces loss of attenuation, increases signal quality
Mounting compatible with SC simplex cutouts– easy integration into common patch panels
Metal bracket for a stable hold– even with frequent use
Compliant with UL 94V0– meets requirements for fire protection & reliability

The InLine® SC/SC simplex coupler for single-mode fiber optic cables impresses with its robust design and high safety features. The built-in ceramic sleeve ensures precise centering of the fibres for low-loss transmission, even for longer distances or demanding applications.
The integrated laser protection shield insidethe coupling, which automatically prevents light emission as soon as no plug is inserted, is particularly noteworthy - an advantage in terms of safety and durability. Installation is quick and safe thanks to the sturdy metal holder in front panels with SC simplex cut-out.
Additional technical specifications:

Type: Simplex SC/SC coupling
Mode: single mode
Laser protection: Internally integrated
Socket: Ceramic
Housing material: PC according to UL 94V0
Mounting: SC simplex cut-out
Color: green
Fastening: Metal bracket

InLine Fibre optic adapter, simplex SC/SC, SM, ceramic, internal shutter, green. Connector type: SC, Product colour: Green, Fiber mode structure: Single-mode. Compliance certificates: UL. Width: 15 mm, Depth: 35 mm, Height: 10 mm. Quantity per pack: 1 pc(s), Package width: 70 mm, Package depth: 120 mm. Country of origin: Germany

How to use

Insert the SC connector of the single‑mode fibre cable into each side of the simplex SC/SC adapter until it clicks into place, ensuring clean connector endfaces before mating to minimize loss. Secure the adapter in a panel, patch panel or faceplate as required. For disconnection, press the connector latch and gently withdraw the connector to avoid damage to the ferrule or sleeve.

Recommendations

Inspect and clean connector endfaces with approved fibre cleaning tools before each connection. Avoid bending fibres sharply near the adapter and keep the green adapter covered with protective caps when not in use to prolong service life.
