Glasvezelkabel BlueOptics 00MN508-BO 5 m LC OM3 vollduplex

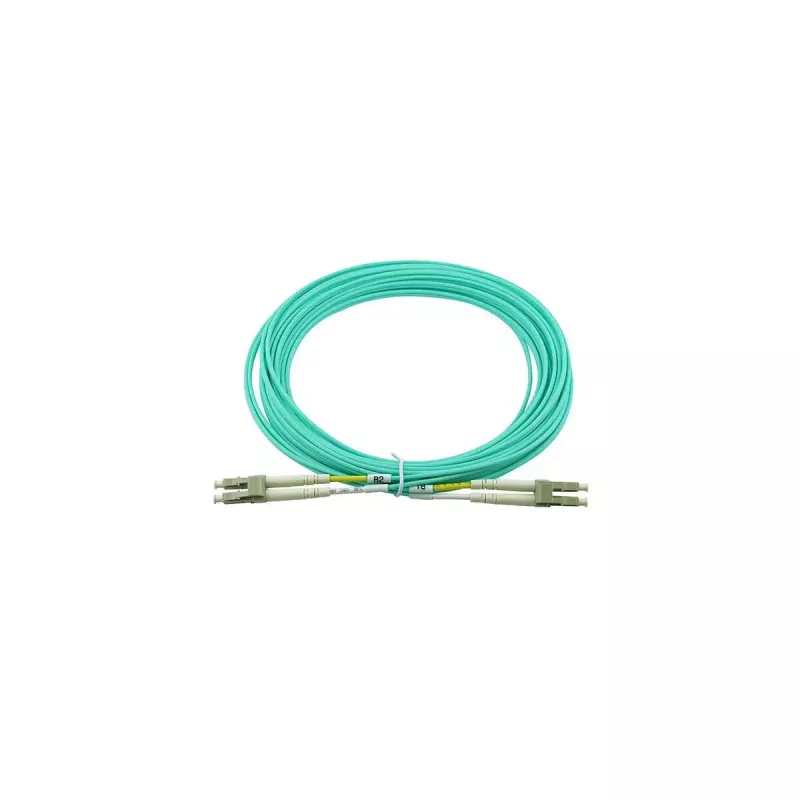

The BlueOptics 00MN508-BO 5 m LC OM3 Full duplex fibre optic cable is a 5-metre multimode patch cable with LC-to-LC connectors designed for high-speed optical connections. The cable uses OM3 laser-optimized multimode fibre with a 50 µm core diameter and supports full duplex data transmission. It is intended for linking optical transceivers, patch panels and switches where reliable short-range multimode performance is required.

Advantages

This OM3 cable offers laser-optimized multimode performance suitable for 10 Gbit/s and other high-speed multimode applications over short to medium distances. The LC connectors provide a compact form factor for high-density patching. Full duplex construction enables simultaneous two-way communication. The cable is supplied in a 5 m length which supports flexible routing in racks and data closets. A flame-retardant LSZH sheath reduces hazardous smoke and halogen emissions in case of fire, making the cable suitable for indoor installations in commercial and institutional environments.

Suitable for

• Connecting optical transceivers (SFP/SFP+/QSFP with LC interfaces)
• Patching between switches, patch panels and network equipment in data centers and server rooms
• High-speed LAN backbone links and short-range multimode connections
• Environments that require low-smoke zero-halogen (LSZH) jacketed cabling

Key specifications

• Fibre type: OM3 multimode, laser-optimized
• Core diameter: 50 µm

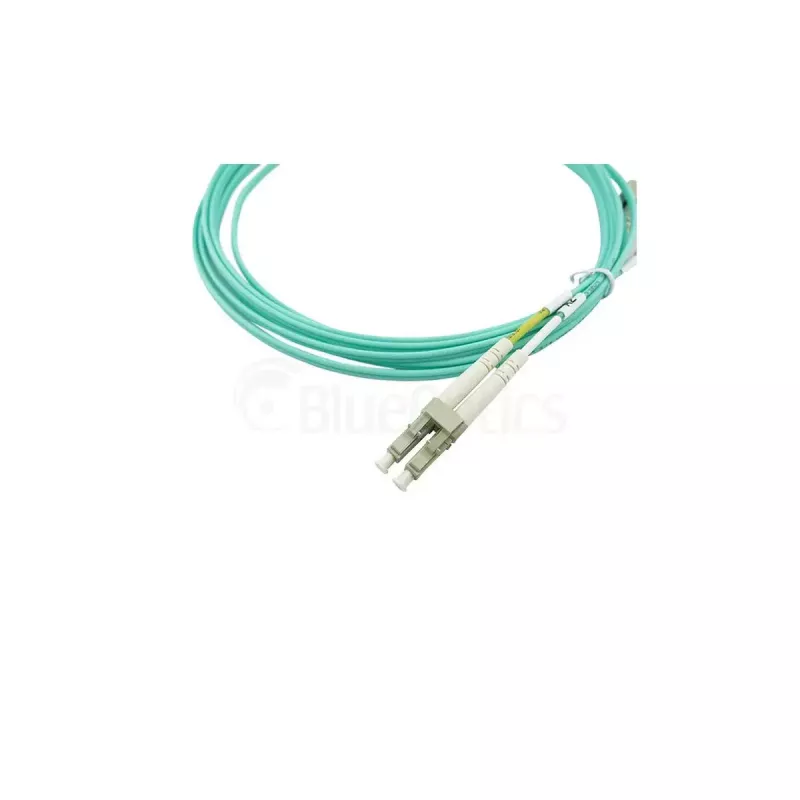

• Connector type: LC to LC
• Configuration: Full duplex
• Length: 5 metres
• Sheath: LSZH (flame retardant)

How to use

Inspect connectors for dirt and damage before installation and clean with appropriate fibre optic cleaning tools if necessary. Route the 5 m cable through cable management paths, avoiding tight bends and excessive pulling force; respect the manufacturer’s minimum bend radius for OM3 multimode fibre. Insert LC connectors into compatible LC ports on transceivers, switches or patch panels until they click into place. Ensure correct orientation for full duplex pairs and verify link status on connected devices. When removing the cable, depress the LC latch and pull straight out to avoid damaging the connector.

Recommendations

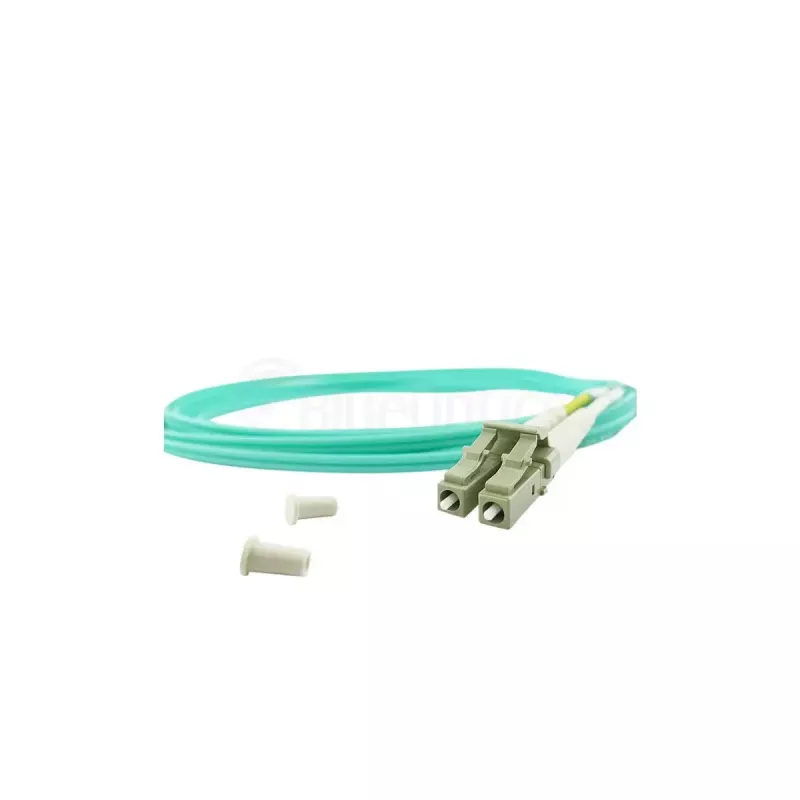

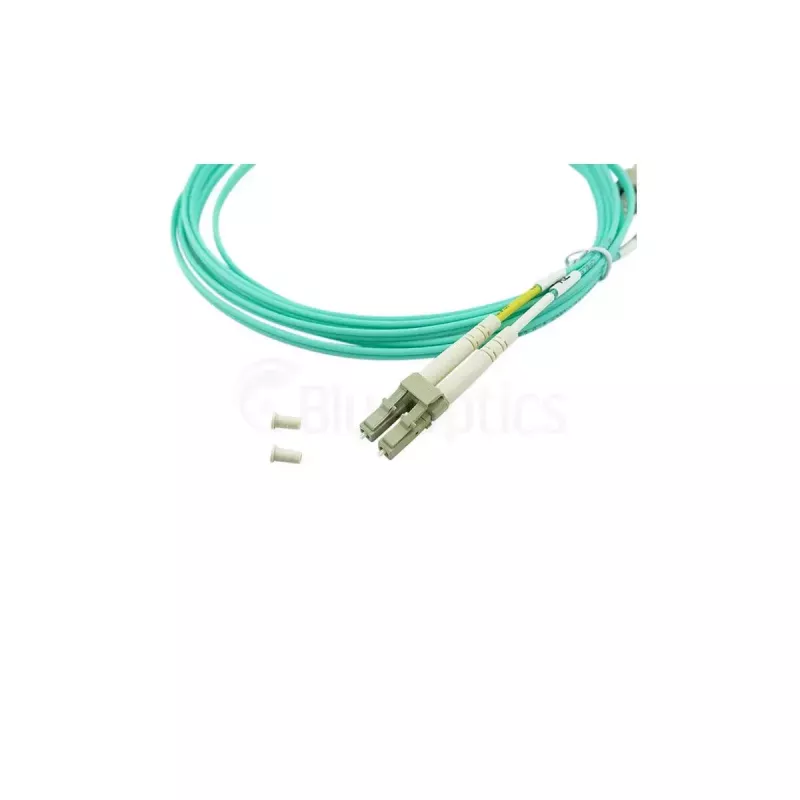

For optimal performance, use this OM3 LC-LC cable with multimode transceivers rated for OM3 and adhere to recommended distance limits for the desired data rate. Store spare cables coiled loosely and protect connector endfaces with dust caps when not in use.
