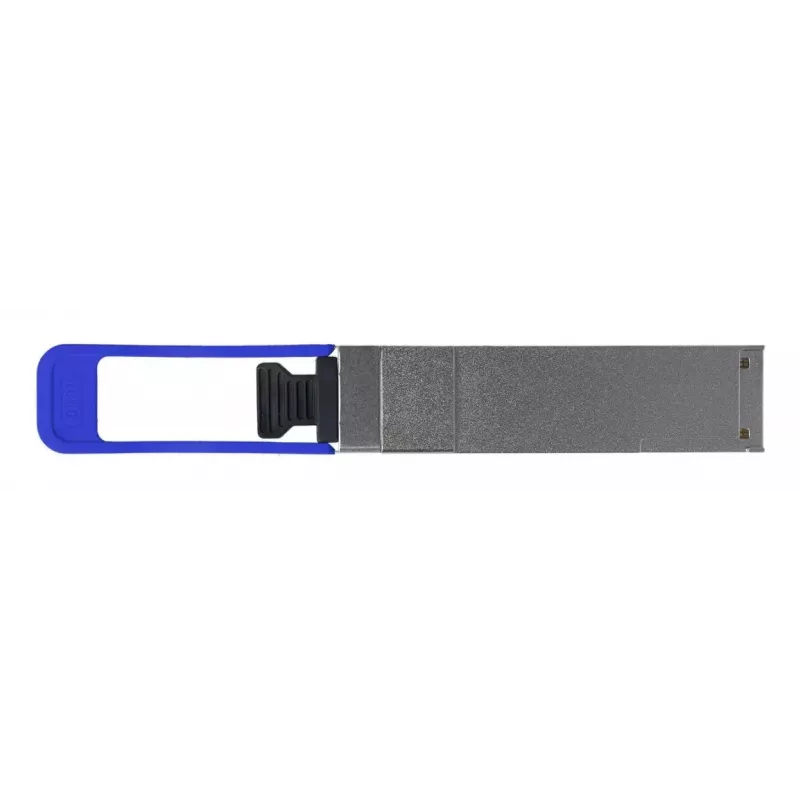

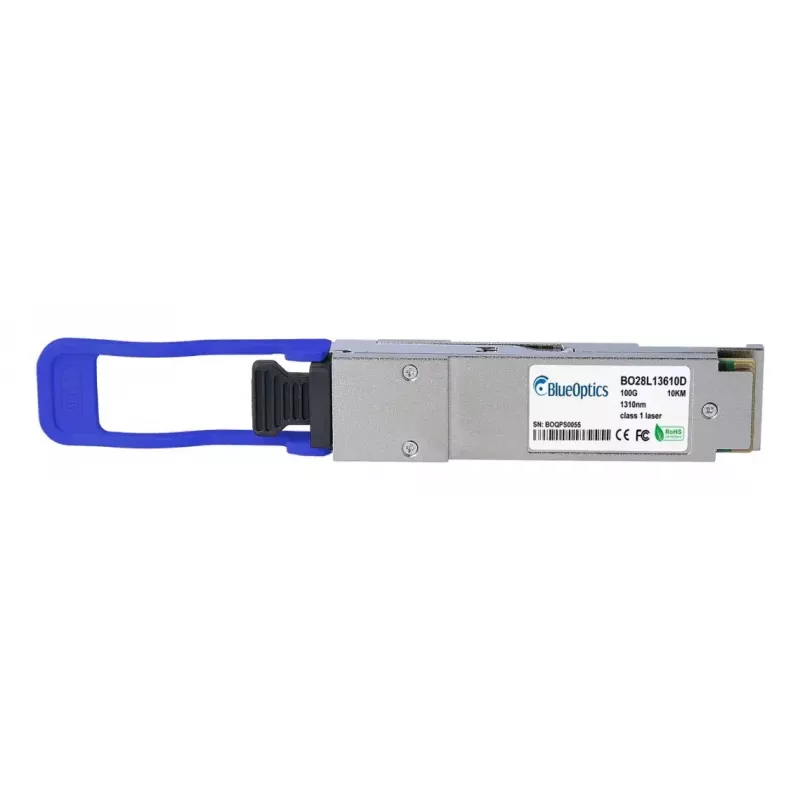

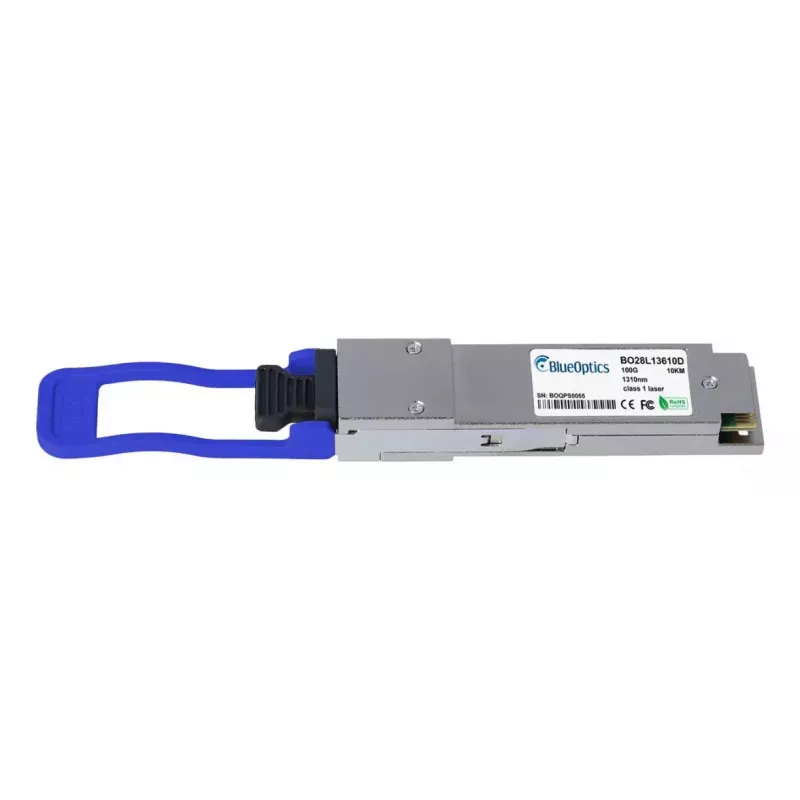

Glasvezeltransceivermodule BlueOptics 407-BBVO-BO 100000 Mbit/s QSFP28

The BlueOptics 407-BBVO-BO is a QSFP28 fiber optic transceiver module designed for high-density data center and enterprise networking environments. With a maximum data transfer rate of 100000 Mbit/s and a compact QSFP28 form factor, the module supports high-throughput links while conserving port space. The transceiver is finished in silver, weighs approximately 40 g, and is manufactured to meet CE, FCC and RoHS regulatory requirements. Mean time between failures (MTBF) is specified at 1,000,000 hours, reflecting expected long-term operational reliability under normal conditions.

Advantages

The QSFP28 form factor enables four-lane 25 Gbit/s operation or single-lane 100 Gbit/s applications in compatible switches and routers, making it suitable for scalable high-bandwidth deployments. The module’s compact design and industry-standard interface simplify integration into existing optical systems. Compliance with CE, FCC and RoHS ensures conformity with common regulatory and environmental requirements, and the 1,000,000-hour MTBF indicates a design focused on continuous operation and reduced maintenance intervention.

Suitable for

• 100 Gbit/s server-to-switch and switch-to-switch uplinks
• High-density data center interconnects
• Carrier and service provider backbone links supporting QSFP28 ports
• Optical equipment requiring QSFP28 compatible transceivers

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s
• Form factor: QSFP28 optical transceiver module
• Product colour: Silver
• Weight: ~0.04 kg
• Expected reliability: MTBF 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on networking equipment following the device manufacturer’s insertion and removal procedures to avoid damage. Ensure the equipment is powered down or the port supports hot-plugging as specified by the host device. After insertion, verify link status on the host to confirm the transceiver is recognized and operating at the expected data rate. Use appropriate single-mode or multimode fiber cabling and connectors as required by your optical link design and the transceiver’s optical specifications.

Recommendations

Store and handle the module in a clean, electrostatic-safe environment. Avoid touching optical interfaces; keep protective dust caps in place when the transceiver is not connected. Verify compatibility with the host system and confirm that the optical fiber type and connector type match the transceiver’s requirements to ensure optimal performance.
