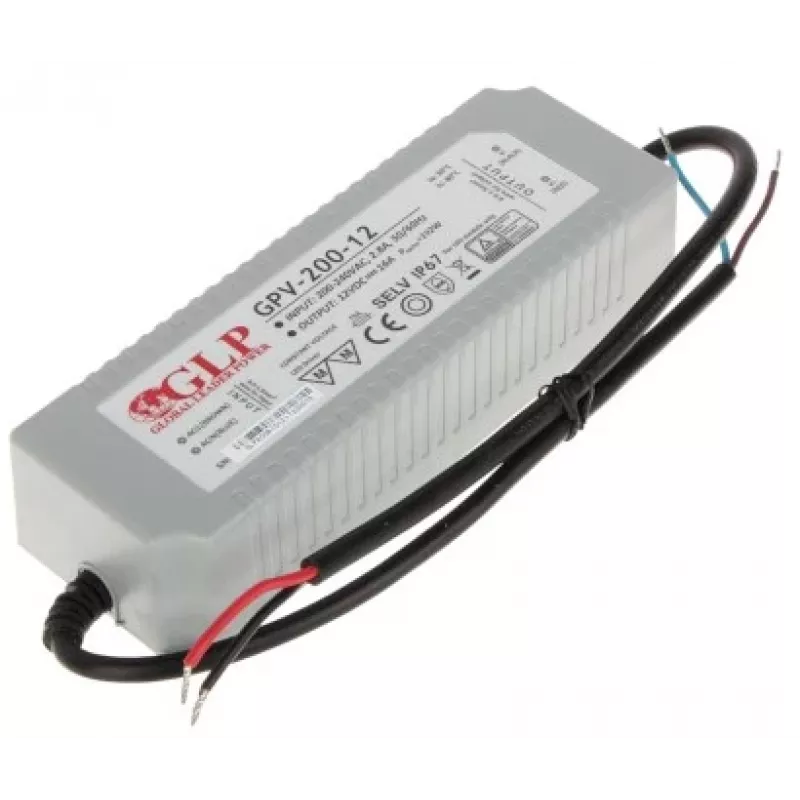

GLP schakelvoeding 12V/16A GPV - 192W industriële AC-DC voeding

For LED lighting installers, CCTV integrators, and industrial automation engineers, the GLP Switching Power Supply 12V/16A GPV provides a stable 12V DC output with a robust 192W capacity. Its fanless design ensures silent operation, while the perforated metal casing allows efficient heat dissipation, making it suitable for continuous use in demanding environments.

Key specifications

• Brand: GLP
• Model: 12V/16A/GPV
• Output Voltage: 12V DC
• Output Current: 16A
• Output Power: 192W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• Protection: Overload, Short Circuit, Over Voltage, Over Temperature
• Cooling: Natural Convection (Fanless)
• Operating Temperature: -20°C to +50°C
• Certifications: CE, RoHS
• Enclosure Material: Perforated Metal Casing
• Input Connection: Screw Terminals (L, N, GND)
• Output Connection: Screw Terminals (V+, V-)
• Ripple & Noise: <150mVp-p
• IP Rating: IP20
• MTBF: >50,000 hours

Why choose it

This power supply offers high efficiency and a fanless design, ensuring silent operation and minimal maintenance. Its comprehensive protection features safeguard your connected equipment against electrical faults, while the screw terminal connections provide secure and straightforward wiring.

Ideal use cases

• LED lighting systems and strips
• CCTV and security camera installations
• Industrial control panels and automation
• Networking equipment and routers
• Any application requiring a stable 12V DC supply

Good to know

The power supply is designed for indoor use (IP20) and can be mounted on a flat surface. Ensure adequate ventilation around the unit to maintain optimal performance.
