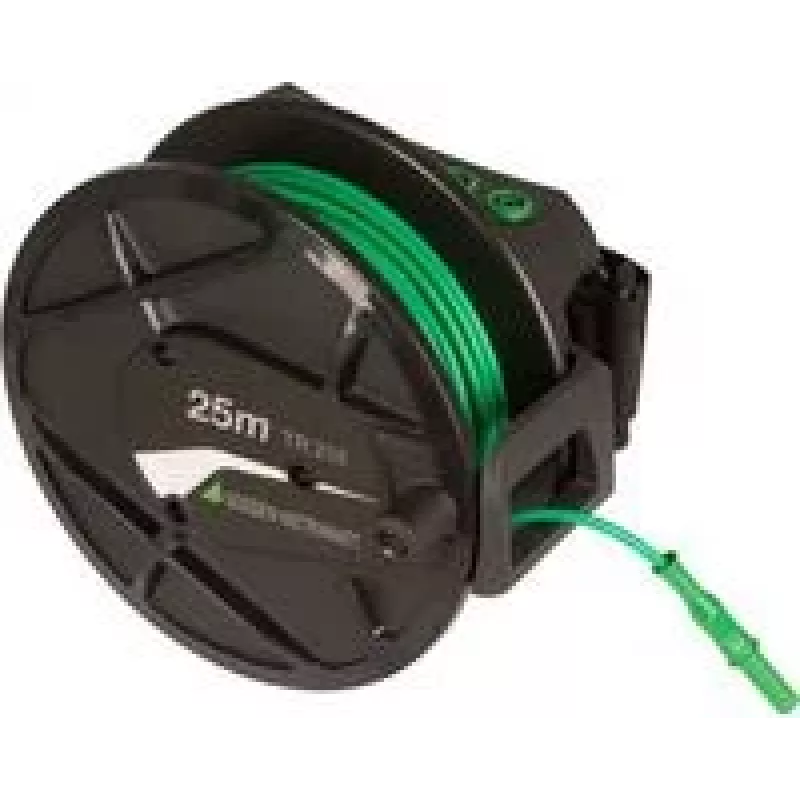

Gossen Metrawatt Z503X TR25 II kabelhaspel voor laagohmige en aardingsmeting, 25 m

Cable reel for low-resistance and earthing measurement with a 25 m single-core measuring cable. The reel is equipped with a 4 mm safety plug and a 4 mm safety socket, making it compatible with universal measuring devices that have 4 mm safety connections. The cable has a cross-section of 2.5 mm² and PVC insulation, rated for 1000 V CAT III / 600 V CAT IV and a maximum current of 32 A. The robust plastic reel protects the cable during transport and storage.

Advantages

Precise measurements over long distances, durable construction, and safe handling thanks to 4 mm safety connectors.

Suitable for

• Low-resistance measurement
• Earthing measurement
• Equipotential bonding measurement

Key specifications

• Cable length: 25 m
• Cable cross-section: 2.5 mm²
• Connector type: 4 mm safety plug and socket
• Voltage rating: 1000 V CAT III / 600 V CAT IV
• Maximum current: 32 A
• Insulation material: PVC
• Reel material: robust plastic
• Cable colour: black

Recommendations

Ideal for electricians and technicians who need reliable long-distance test leads for earthing and low-resistance measurements.
