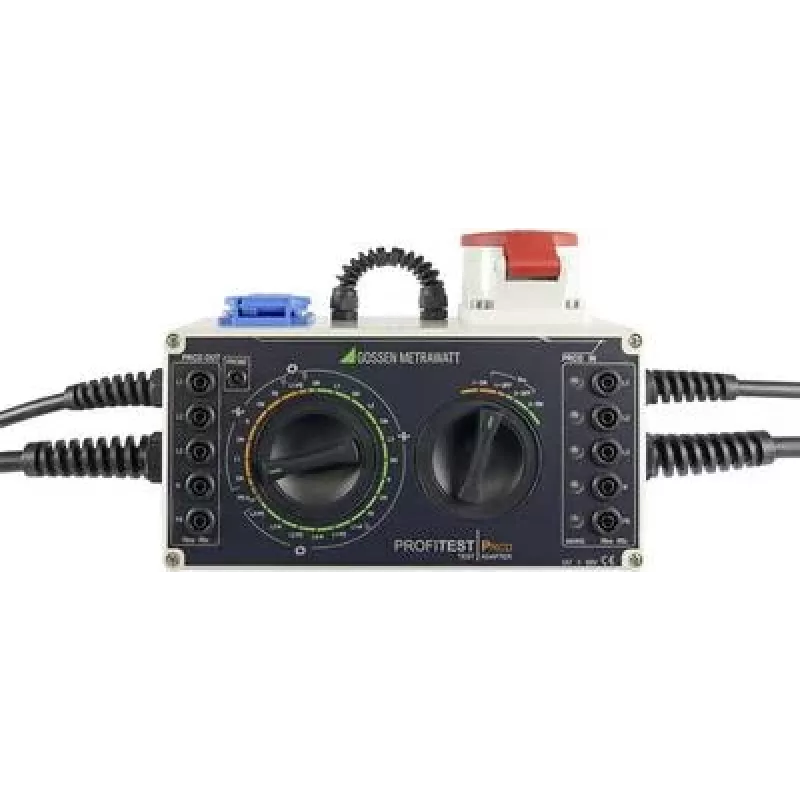

Gossen Profitest adapter voor draagbare apparaten PROFiTES (M512R)

Electricians and maintenance technicians use the Gossen Profitest Adapter M512R to safely test single-phase portable equipment with Schuko plugs. It connects between the mains and the device under test, providing measurement points for the PROFITEST series installation testers.

Key specifications

• Compatible with Gossen Metrawatt PROFITEST series testers
• Schuko plug (CEE 7/7) input and Schuko socket (CEE 7/3) output
• 4 mm safety sockets for L, N, PE connections
• Max. nominal voltage: 250 V AC
• Max. nominal current: 16 A
• Measurement category: CAT II 300V
• Protection class: IP20
• Operating temperature: 0°C to +40°C
• Housing: impact-resistant plastic

Why choose it

This adapter streamlines testing of portable electrical equipment according to VDE 0701-0702, EN 50678, and EN 50699. Its double insulation and integrated protective conductor connection ensure safe measurements.

Ideal use cases

• Testing portable tools and appliances in workshops
• Periodic safety inspections of electrical equipment
• Verifying protective conductor resistance and insulation

Good to know

The adapter is designed for single-phase equipment with Schuko plugs. It is not suitable for three-phase devices. Always follow the test instrument's operating instructions.
