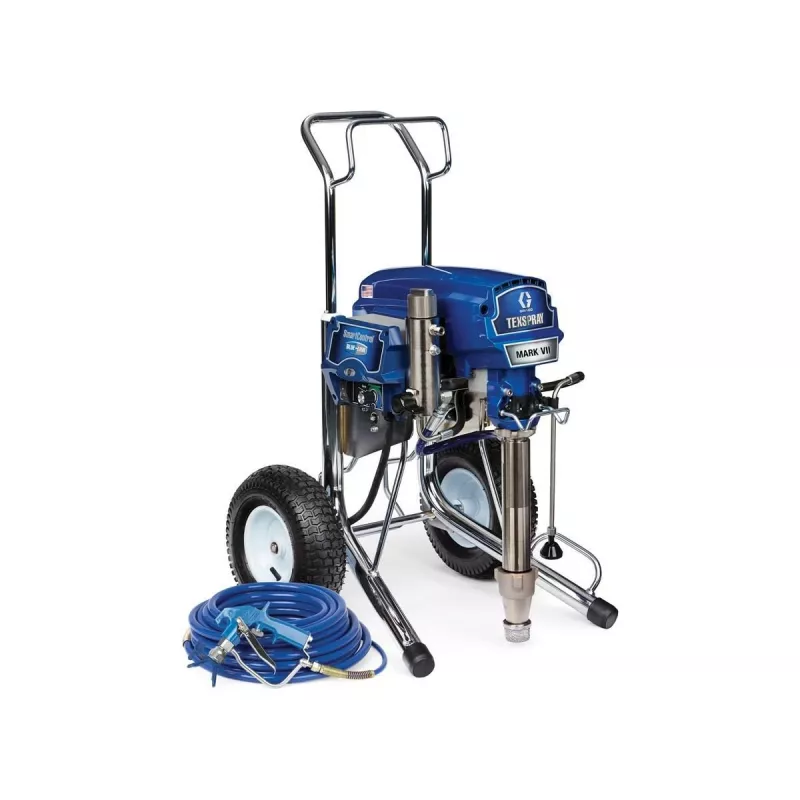

Graco Mark VII Max standaard aggregaat verfspuit

The Graco Mark VII Max Standard Aggregate is a high-performance electric paint sprayer designed for large residential, commercial, and industrial applications. Featuring a powerful 2.2 HP brushless DC motor and SmartControl 4.0 with LED display, this unit delivers consistent results with heavy architectural coatings, fireproofing, smooth texture, plaster, epoxy, and intumescent coatings. The Endurance Chromex piston pump provides a max flow rate of 6.6 LPM (1.75 GPM) and max operating pressure of 227 bar (3300 PSI).

Advantages

Equipped with the WatchDog Pump Protection system and FastFlush 2 cleaning system, the Mark VII Max ensures extended pump life and quick cleanup. The ProConnect 2 pump replacement system allows for fast, tool-free pump changes. The chromed steel cart with pneumatic tires provides excellent mobility on job sites.

Suitable for

• Large residential painting projects
• Commercial and industrial coatings
• Heavy architectural coatings and fireproofing
• Smooth texture, plaster, epoxy, and intumescent coatings

Key specifications

• Max Flow Rate: 6.6 LPM (1.75 GPM)
• Max Operating Pressure: 227 bar (3300 PSI)
• Max Tip Size (1 Gun): 0.035 inches
• Motor: 2.2 HP Brushless DC
• Power: 230V AC, 50/60 Hz
• Pump: Endurance Chromex Piston Pump
• Control: SmartControl 4.0 with LED Display
• Pump Protection: WatchDog Pump Protection System
• Cleaning: FastFlush 2 System
• Pump Replacement: ProConnect 2 System
• Filter: Easy Out Pump Filter
• Hose: 15m (50 ft) x 3/8 inch BlueMax II
• Gun: HD Blue Texture Gun
• Max Hose Length: 90m (300 ft)
• Frame: Chromed Steel Cart with Pneumatic Tires
• Weight: 68 kg (150 lbs)

Recommendations

For optimal performance, use with Graco-approved spray tips and ensure proper maintenance. Suitable for professional contractors and serious DIYers.
