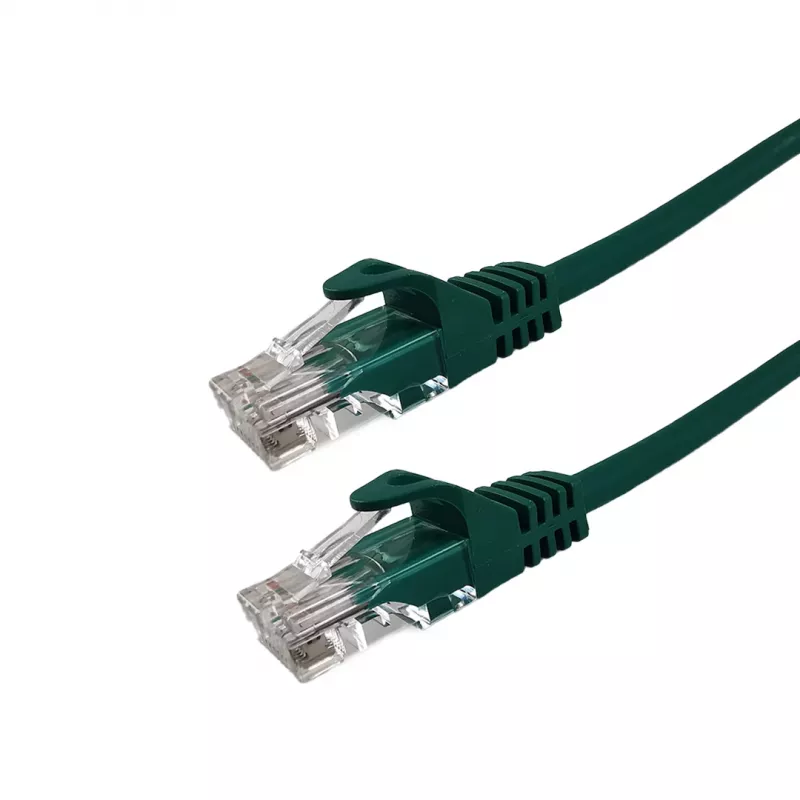

Grafenthal CAT6 U/UTP LSZH patchkabel 1,00m groen

The Grafenthal CAT6 U/UTP LSZH Patch Cable is a high-performance network cable designed for reliable Gigabit Ethernet connections. With a length of 1.00 meter and a vibrant green color, this cable is ideal for structured cabling in data centers, offices, and home networks. It features copper conductors, LSZH jacket for safety, and complies with TIA/EIA-568B wiring standard.

Advantages

This patch cable offers excellent signal integrity and reduced crosstalk thanks to its U/UTP design and 24 AWG stranded conductors. The LSZH jacket ensures low smoke and zero halogen emission in case of fire, making it safe for use in enclosed spaces. It supports 1 Gbps data transfer rate over 250 MHz bandwidth, suitable for most Ethernet applications.

Suitable for

• Connecting computers to switches, routers, or patch panels
• Structured cabling in offices, data centers, and server rooms
• Home network setups requiring reliable wired connections
• Applications where safety and low smoke emission are critical

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.0 meter
• Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Conductor Construction: Stranded
• Conductor Gauge: 24 AWG
• Bandwidth: 250 MHz
• Data Transfer Rate: 1 Gigabit Ethernet (1000BASE-T)
• Number of Pairs: 4
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible devices and avoid sharp bends or kinks during installation. Ensure proper cable management to maintain signal quality.
