Grafenthal Glasvezelkabel OM3 LC/UPC-LC/UPC LSZH 10,00m Aqua Blue

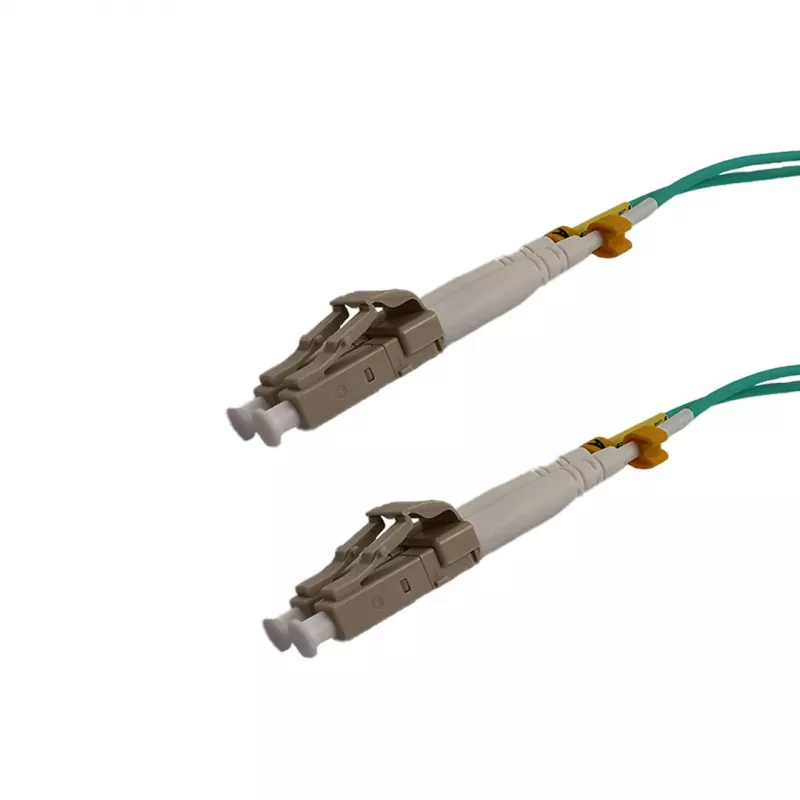

The Grafenthal Optical Fibre Cable OM3 is a high-performance duplex multimode patch cable designed for reliable high-speed data transmission in data centers, LAN, SAN, FTTx, and telecommunications networks. With LC/UPC connectors on both ends and a 10.00-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This OM3 fibre cable supports data rates up to 10 Gbps at 850 nm over 300 meters, and is also capable of 40 Gbps up to 100 meters and 100 Gbps up to 70 meters. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic and corrosive emissions during a fire. The aqua blue colour allows for easy identification of OM3 cabling.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fibre-to-the-x (FTTx) applications
• Telecommunications infrastructure

Key specifications

• Fibre Type: OM3 Multimode
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Cable Configuration: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 10.00 m
• Jacket Colour: Aqua Blue
• Core/Cladding Diameter: 50/125 µm
• Maximum Data Rate (850nm): 10 Gbps (up to 300m), 40 Gbps (up to 100m), 100 Gbps (up to 70m)
• Modal Bandwidth (850nm): 1500 MHz·km
• Modal Bandwidth (1300nm): 500 MHz·km
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to +70°C
• Standards Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is ideal for high-bandwidth applications requiring reliable, low-loss connections.
