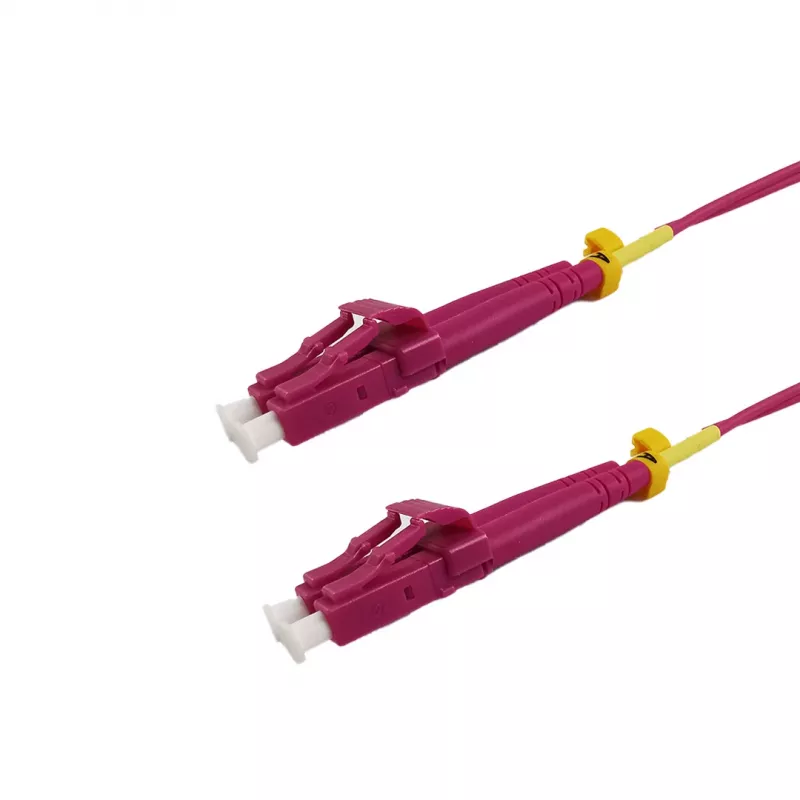

Grafenthal Glasvezelkabel OM4 LC/UPC-LC/UPC LSZH 2,00m Violet

The Grafenthal Optical Fibre Cable OM4 is a high-performance duplex multimode patch cable designed for reliable high-speed data transmission in data centers, enterprise networks, and telecommunications applications. With LC/UPC connectors on both ends and a 2.00-meter length, this cable ensures low insertion loss and high return loss, supporting 10, 40, and 100 Gigabit Ethernet. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The violet colour allows for easy identification and cable management.

Advantages

This OM4 fibre optic cable offers superior bandwidth and distance performance compared to OM3, making it ideal for high-density environments. The duplex configuration supports bidirectional communication, and the LSZH jacket ensures compliance with strict fire safety regulations. Typical insertion loss of ≤0.3 dB and return loss ≥30 dB guarantee signal integrity.

Suitable for

• Data center interconnects
• Server and storage area networks
• Telecommunications rooms
• High-speed Ethernet applications (10G, 40G, 100G)

Key specifications

• Fibre Mode: OM4 Multimode
• Connector Type: LC/UPC to LC/UPC
• Cable Configuration: Duplex
• Jacket Material: LSZH
• Cable Length: 2.00 meters
• Core/Cladding Diameter: 50/125 µm
• Bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is RoHS compliant and suitable for use in plenum and riser spaces where LSZH materials are required.
