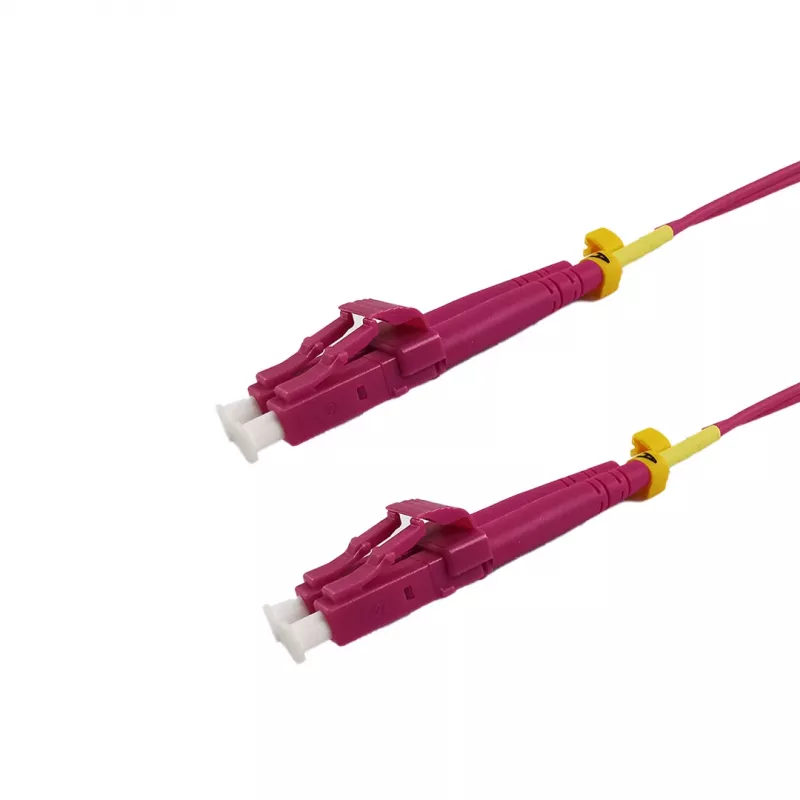

Grafenthal Glasvezelkabel OM4 LC/UPC-LC/UPC LSZH 5,00m Violet

The Grafenthal Optical Fibre Cable OM4 is a high-performance duplex multimode patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends and a length of 5.00 metres, this cable ensures low insertion loss and high return loss, making it ideal for high-speed applications. The violet LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic fumes and smoke.

Advantages

This OM4 fibre cable offers superior bandwidth and attenuation characteristics, supporting data rates up to 40 Gbps and beyond. The LSZH jacket is environmentally friendly and complies with strict safety regulations, making it suitable for use in confined spaces such as data centres and office buildings. The duplex design allows for simultaneous bidirectional communication, increasing efficiency.

Suitable for

• Data centre cabling infrastructure
• High-speed network connections (10/40/100 GbE)
• Telecommunications and server rooms
• FTTx and LAN applications
• Any environment requiring low smoke and halogen-free cabling

Key specifications

• Fibre Type: Multimode OM4
• Connector Type: LC/UPC to LC/UPC
• Number of Fibres: Duplex (2 fibres)
• Cable Length: 5.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Violet
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, pair this OM4 patch cable with OM4-compatible transceivers and patch panels. Ensure proper handling and installation to maintain low insertion loss. This cable is an excellent choice for upgrading existing network infrastructure to support higher data rates.
