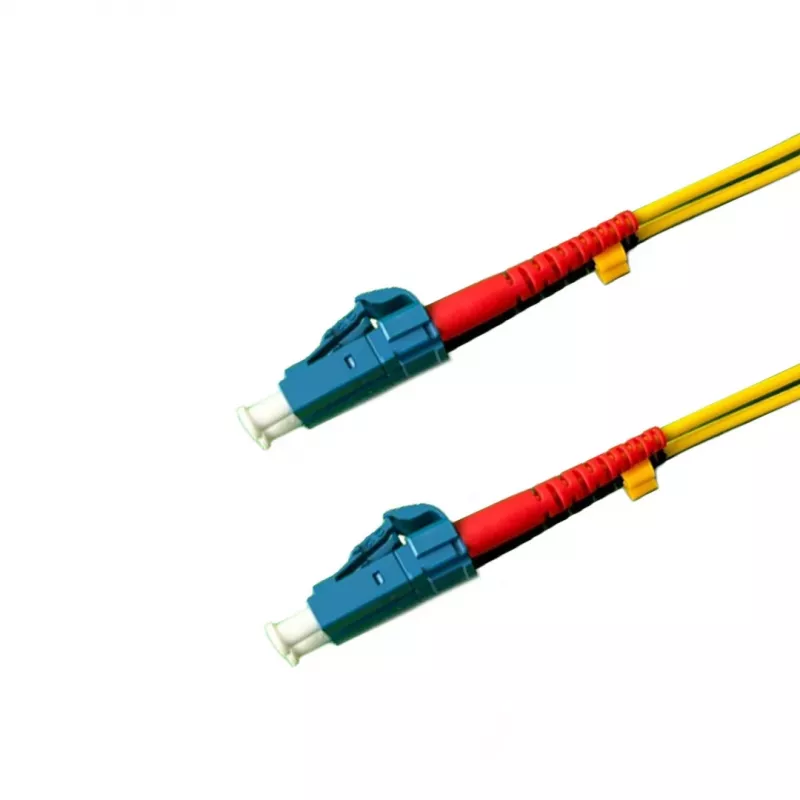

Grafenthal OS2 Single-Mode Glasvezel Patchkabel LC/UPC naar LC/UPC Duplex 15m Geel LSZH

The Grafenthal OS2 Single-Mode Fibre Optic Patch Cable is a high-performance duplex cable designed for reliable, high-speed data transmission in enterprise networks, data centers, and telecommunications. With LC/UPC connectors on both ends and a 15-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity. The yellow LSZH jacket provides flame retardancy and low smoke emission, making it safe for use in confined spaces.

Advantages

This cable offers ultra-low attenuation and bend-insensitive performance, ensuring stable connections even in tight installations. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety. Duplex design supports bidirectional communication, ideal for modern network infrastructure.

Suitable for

• Data center interconnects
• Telecommunications networks
• Enterprise LAN backbones
• FTTx deployments
• High-speed server connections

Key specifications

• Fibre Mode: Single-mode OS2 (ITU-T G.657.A1/A2)
• Connectors: LC/UPC to LC/UPC
• Cable Configuration: Duplex
• Length: 15.00 m (49.21 ft)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Core/Cladding: 9/125 µm
• Insertion Loss: ≤ 0.3 dB typical
• Return Loss: ≥ 50 dB
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC ports. Store in a clean, dry environment within -40°C to 85°C.
