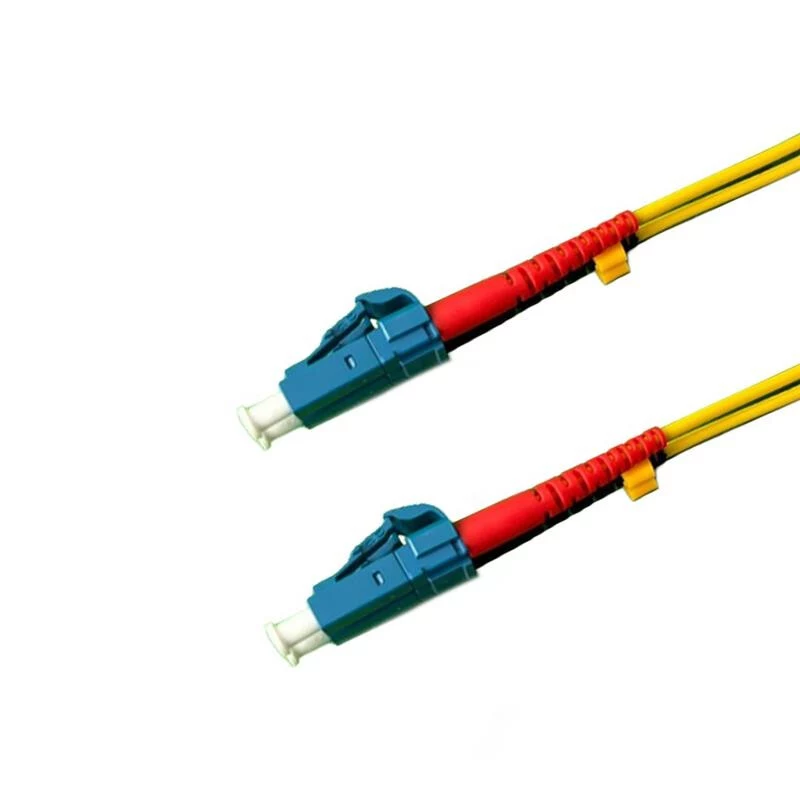

Grafenthal OS2 Singlemode Glasvezel Patchkabel LC/UPC naar LC/UPC Duplex 10m LSZH geel

The Grafenthal OS2 Single-mode Fibre Optic Patch Cable is a high-performance duplex patch cord designed for reliable data transmission in demanding network environments. Featuring LC/UPC connectors on both ends, this 10-meter cable is constructed with a LSZH (Low Smoke Zero Halogen) jacket in yellow, ensuring safety and easy identification. Compliant with ITU-T G.657.A1 / G.652.D standards, it delivers low insertion loss and high return loss, making it ideal for high-speed networks, data centers, and telecommunications.

Advantages

This fibre optic cable offers exceptional signal integrity with a maximum insertion loss of ≤0.3 dB and a minimum return loss of ≥50 dB. The LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety in confined spaces. Its duplex design supports bidirectional communication, and the 2.0 mm cable diameter provides flexibility while maintaining durability.

Suitable for

• High-speed data networks (1/10/40/100 Gbps)
• Data centers and server rooms
• Telecommunications and FTTx applications
• LAN and SAN infrastructure

Key specifications

• Fibre Mode: Single-mode OS2 (ITU-T G.657.A1 / G.652.D)
• Connector Type: LC/UPC to LC/UPC, Duplex
• Core/Cladding: 9/125 µm
• Cable Length: 10.00 m
• Jacket Material: LSZH, Yellow
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC ports and is suitable for both indoor and data center use. Pair with Grafenthal patch panels and adapters for a complete solution.
