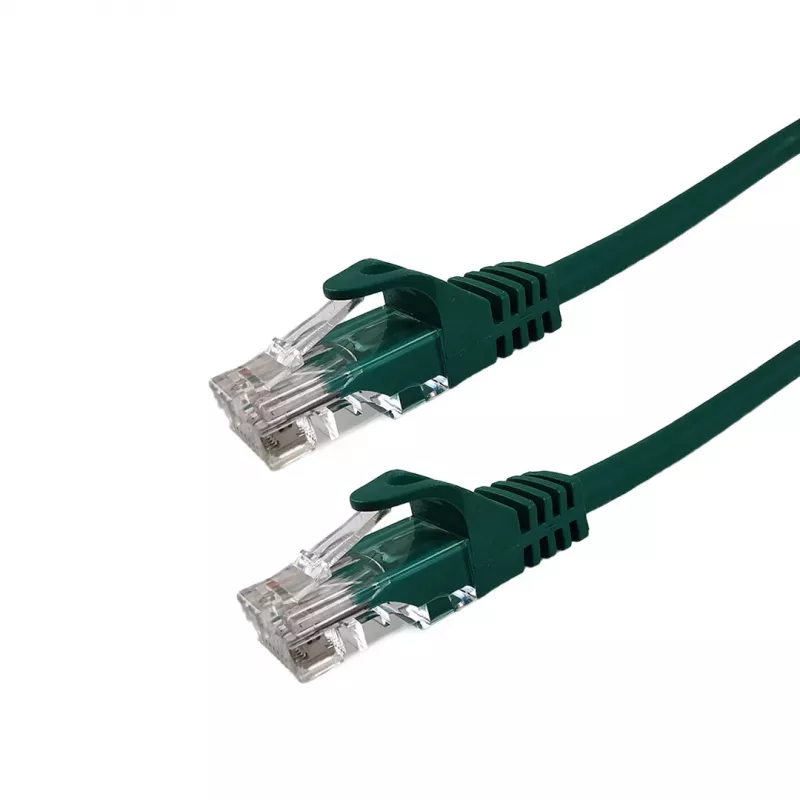

Grafenthal Patchkabel CAT6 S/FTP CU LSZH 0,25m groen

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 0.25m Green is a high-performance network cable designed for reliable data transmission in professional environments. With its S/FTP shielding and copper conductors, it ensures excellent signal integrity and minimal interference.

Advantages

This patch cable offers superior protection against electromagnetic interference (EMI) and crosstalk, thanks to its S/FTP (Screened/Foiled Twisted Pair) construction. The LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in confined spaces, reducing toxic fumes in case of fire. Gold-plated contacts guarantee corrosion resistance and optimal conductivity.

Suitable for

• Data centers and server rooms
• Network switches, routers, and patch panels
• High-speed Ethernet applications up to 10 Gigabit
• Structured cabling systems

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: S/FTP
• Conductor Material: Copper (CU)
• Jacket Material: LSZH
• Length: 0.25 m
• Color: Green
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Bandwidth: 250 MHz
• Data Transfer Rate: 10 Gbps
• Conductor Gauge: 26 AWG
• Construction: Stranded
• Contact Plating: Gold-plated (50µm)
• Number of Pairs: 4
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible equipment. Ensure proper cable management to avoid bending beyond the recommended radius.
