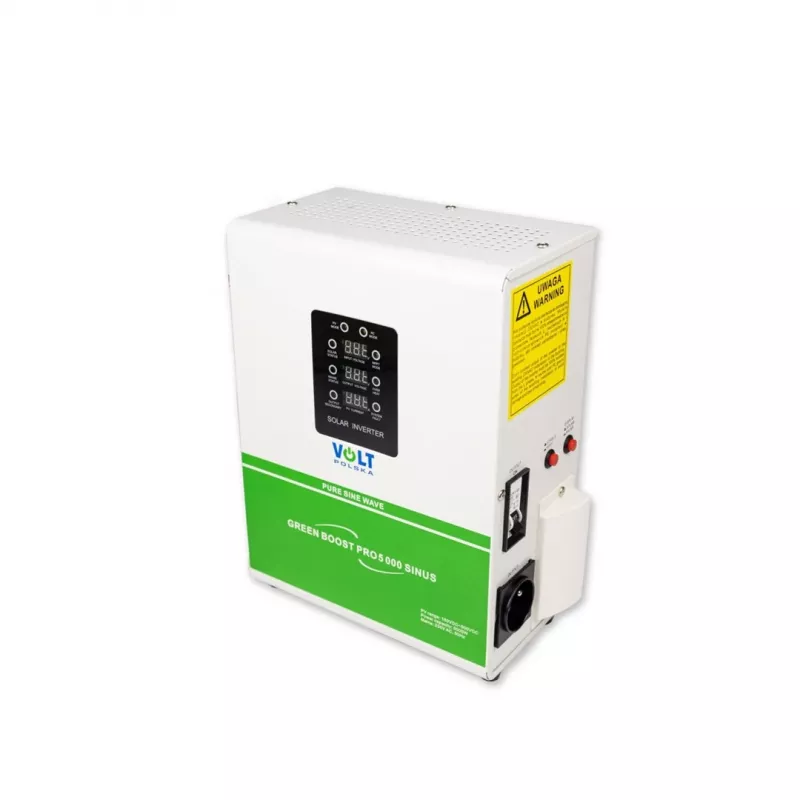

GREEN BOOST PRO 5000 SINUS BYPASS solar-omvormer 5000W zuivere sinusgolf MPPT

The GREEN BOOST PRO 5000 SINUS BYPASS is a high-performance off-grid/hybrid solar inverter designed for residential and commercial applications. With a rated power of 5000W and pure sine wave output, it ensures clean and stable power for sensitive electronics. The built-in MPPT solar charger maximizes energy harvest from photovoltaic panels, supporting up to 5000W of solar input.

Advantages

High efficiency (>93%), low transfer time (10ms in UPS mode), and comprehensive protection features (overload, short circuit, over-temperature, etc.) make this inverter reliable and safe. The LCD display provides real-time monitoring of system status.

Suitable for

• Off-grid solar power systems
• Backup power for homes and offices
• Remote areas without grid access
• Hybrid systems with battery storage

Key specifications

• Rated Power: 5000W / 5000VA
• Surge Power: 10000VA (5 seconds)
• Output Waveform: Pure Sine Wave
• Battery Voltage: 48V DC
• AC Output: 230V AC, 50/60Hz auto-sensing
• Solar Charger: MPPT, max PV input 5000W, max PV voltage 500V DC
• Max Solar Charge Current: 100A
• Max AC Charge Current: 60A
• Efficiency: >93%
• Transfer Time: 10ms (UPS), 20ms (Appliance)
• Protection: Overload, Short Circuit, Over-temperature, Over/Under-voltage, Reverse Polarity
• Communication: USB, RS232
• Operating Temperature: 0°C to 55°C
• Display: LCD

Recommendations

For optimal performance, use with a 48V battery bank and ensure proper ventilation. The inverter is suitable for continuous operation within its rated power.
