KLAU 108R10 perskabelschoen 95 mm² M10 galvanisch vertind koper

Engineered for 95 mm² copper conductors, the KLAU 108R10 compression cable lug delivers a low-resistance, corrosion-proof termination rated for continuous operation from -50°C to +150°C. Its M10 bolt hole and DIN 46235 geometry ensure a precise, durable connection in high-current power distribution.

Overview

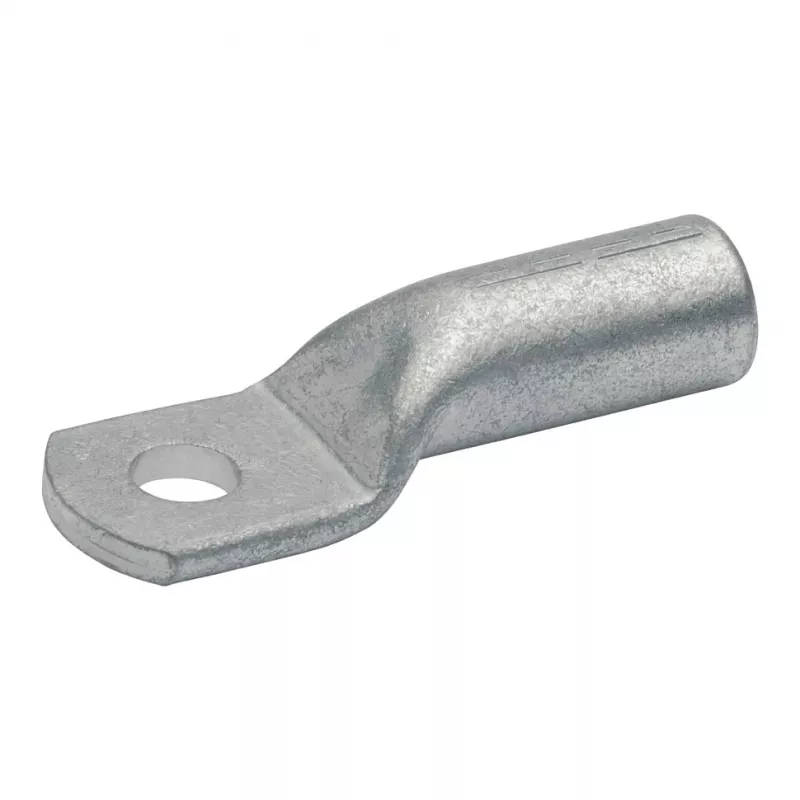

The KLAU 108R10 is a standard tubular compression cable lug from Gustav Klauke GmbH, built for stranded and fine-stranded copper conductors. Conforming to DIN 46235, it guarantees dimensional accuracy and compatibility with standard crimping tools. The lug features a straight connection angle and a single bolt hole for M10 fasteners, providing a secure and durable termination in industrial installations and switchgear.

What stands out

• Galvanically tinned copper for excellent corrosion resistance and conductivity
• Wide operating temperature range from -50°C to +150°C
• RoHS compliant for environmentally conscious projects
• Standard barrel length for reliable crimping with common tools

Technical details

• Cable cross-section: 95 mm²
• Bolt hole diameter: 10.5 mm (for M10 bolts)
• Material: Electrolytic copper, electro-tinned
• Lug type: Standard tubular compression cable lug

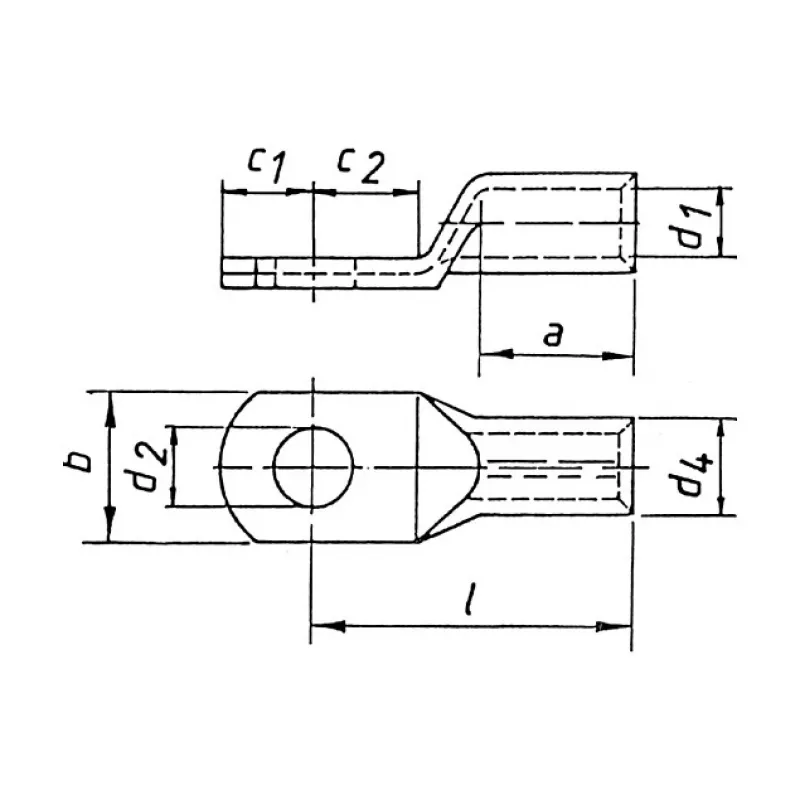

• Standard conformance: DIN 46235
• Connection angle: Straight
• Number of bolt holes: 1
• Conductor compatibility: Copper, stranded and fine-stranded
• Voltage rating: Up to 1000 V (application dependent)
• RoHS compliance: Yes
• Manufacturer series: 108R Series

Our verdict

The KLAU 108R10 is a dependable compression lug for demanding electrical connections. Its tinned copper construction and adherence to DIN standards make it a solid choice for professionals.
