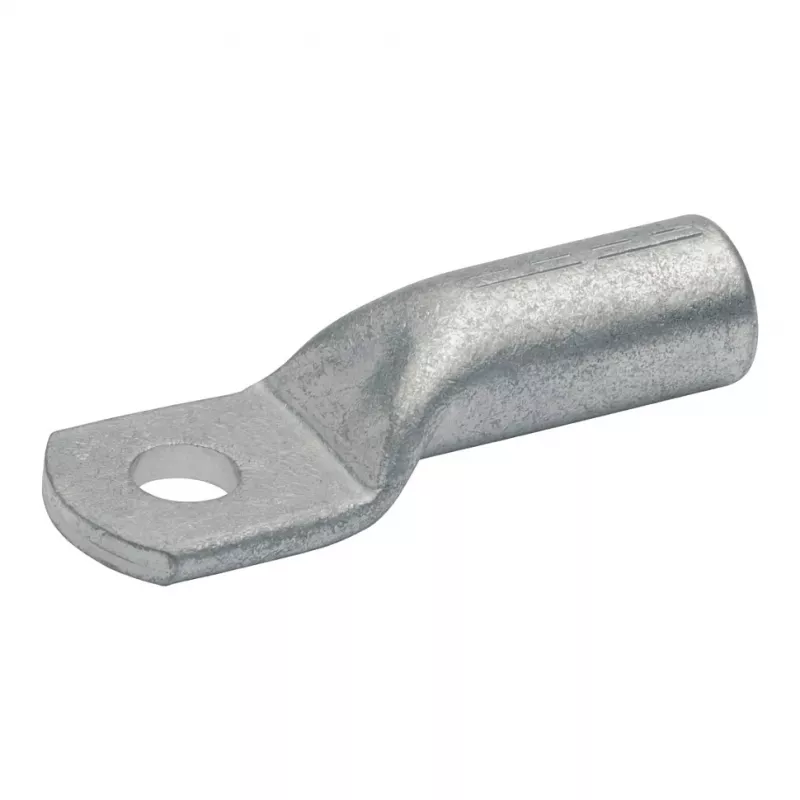

GUSTAV KLAUKE GMBH KLAU Kabelschoen 106R12 50 mm² M12 DIN 46235

High-current electrical connections demand reliability under extreme conditions. The KLAU Compression Cable Lug 106R12 is engineered for secure, low-resistance terminations on 50 mm² copper conductors, conforming to DIN 46235. Its electro-tinned electrolytic copper construction ensures excellent conductivity and corrosion resistance, making it ideal for power distribution, grounding, and industrial applications.

Who is it for

Electricians, panel builders, and maintenance professionals who need dependable crimp connections for medium-voltage systems up to 1000 V. Suitable for use in switchgear, transformers, and heavy machinery where vibration and thermal cycling are present.

Main features

• For 50 mm² copper conductors with M12 bolt hole (13 mm diameter)
• Manufactured from seamless electrolytic copper, electro-tinned for corrosion protection
• Chamfered barrel entry eases cable insertion and reduces strand damage
• Inspection hole verifies full conductor insertion before crimping
• Operating temperature range: -55°C to +150°C, non-flammable

Specifications

• Conductor cross-section: 50 mm²
• Bolt size: M12 (hole diameter: 13 mm)
• Standard: DIN 46235
• Material: Electrolytic copper (E-Cu), electro-tinned
• Connection type: Crimp / compression
• Voltage class: Up to 1000 V
• RoHS compliant: Yes
• Colour: Silver (tinned)

Tips

Use a hydraulic or mechanical crimp tool with appropriate dies for 50 mm² lugs. Ensure the conductor is fully inserted until visible through the inspection hole, then crimp at the marked positions. For outdoor or harsh environments, the tinned surface provides long-term protection against oxidation.
