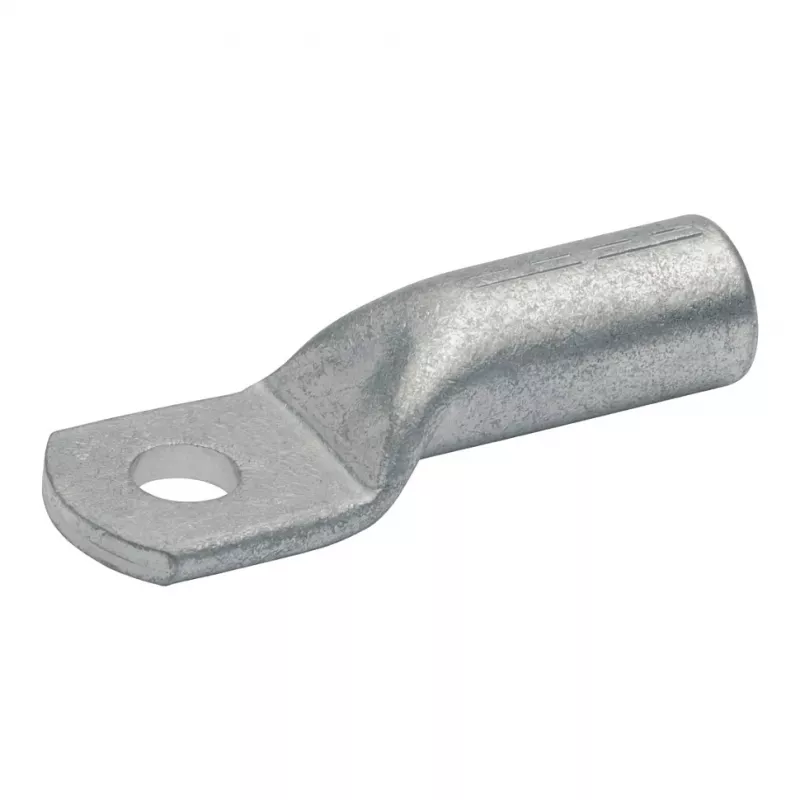

KLAU pers kabeloog 105R8 35mm² M8 galvanisch verzinkt

This crimp cable lug delivers a secure, high-conductivity connection for 35 mm² copper conductors, engineered for power distribution and electrical installations where reliability is paramount. Its galvanically tinned electrolytic copper construction offers exceptional corrosion resistance, ensuring long-term performance even in demanding environments.

Advantages

Precision-formed from high-purity electrolytic copper, the lug provides excellent electrical conductivity and mechanical strength. The galvanic tin plating enhances solderability and protects against oxidation and corrosion, extending service life. The M8 bolt hole ensures a firm, vibration-resistant connection to terminals or busbars. Compliant with DIN 46235, it meets stringent industry standards for dimensions and performance.

Suitable for

• Power distribution systems and switchgear
• Electrical installations in industrial and commercial settings
• Terminating stranded copper conductors up to 35 mm²
• Applications requiring reliable, maintenance-free connections

Key specifications

• Cable cross-section: 35 mm²
• Bolt hole diameter: M8 (8 mm)
• Material: Electrolytic copper, galvanically tinned
• Standard: DIN 46235
• Operating temperature range: -55°C to +150°C
• Uninsulated ring terminal with one bolt hole

Recommendations

For best results, use a calibrated crimping tool designed for 35 mm² copper lugs, and ensure the conductor is clean and fully inserted before crimping. Inspect the crimp for uniform compression and verify the connection torque after installation.
