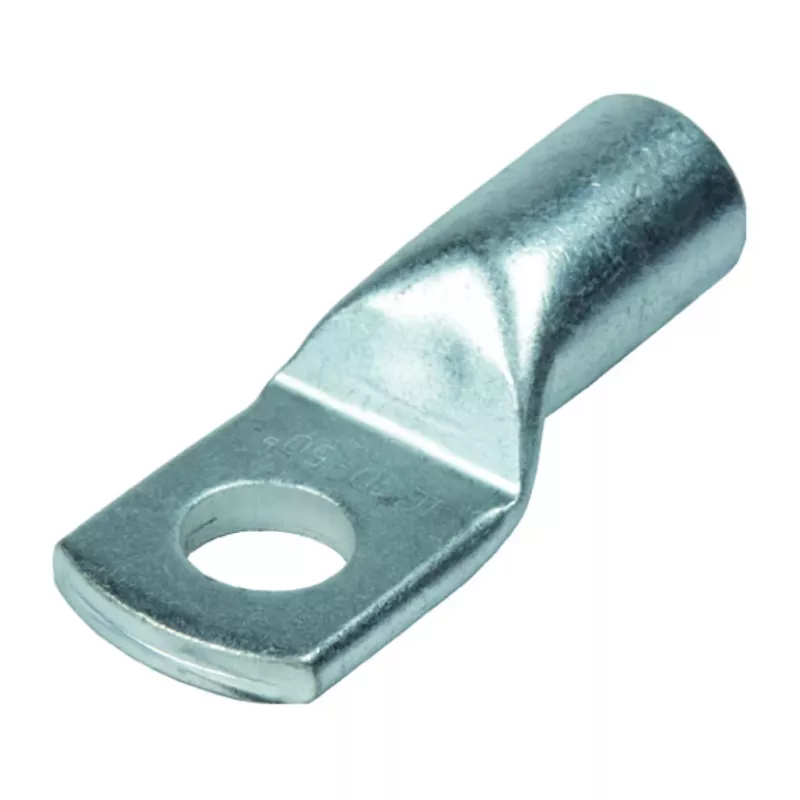

Intercable ICR15012 buiskabelschoen 150 mm² M12 vertind R-serie

Electricians and panel builders working on high-current power distribution systems often need a reliable connection for 150 mm² copper conductors. The Intercable ICR15012 tubular cable lug from the R-Series delivers exactly that, with a seamless tin-plated copper barrel and a 12 mm bolt hole for secure M12 terminations. Crimp it onto stranded copper cable and you get a durable, low-resistance joint that stands up to demanding industrial environments.

Key specifications

• Type: Tubular cable lug (DIN 46235 compliant)
• Cable cross-section: 150 mm²
• Bolt hole diameter: 12 mm (M12)
• Material: Electrolytic copper, tin-plated
• Connection method: Crimp
• Conductor compatibility: Copper
• Insulation: Uninsulated
• Operating temperature: -40°C to +120°C
• Voltage rating: Up to 1 kV
• Inspection hole: Yes
• RoHS compliant: Yes

Why choose it

The seamless tube construction eliminates weak points, while the tin plating provides excellent corrosion resistance and low contact resistance. The inspection hole allows visual confirmation of full conductor insertion before crimping, reducing installation errors. This lug is engineered for high mechanical strength and reliable performance in power distribution, industrial wiring, and automotive applications.

Ideal use cases

• Terminating large copper cables in switchgear and distribution boards
• Battery and inverter connections in renewable energy systems
• Heavy-duty automotive and marine electrical systems
• Industrial machinery with high-current power feeds

Good to know

Always use a proper crimping tool with the correct die size for 150 mm² lugs to ensure a gas-tight connection. The lug is uninsulated, so apply heat-shrink tubing or insulating tape after crimping if required. Store in a dry environment to preserve the tin plating.
