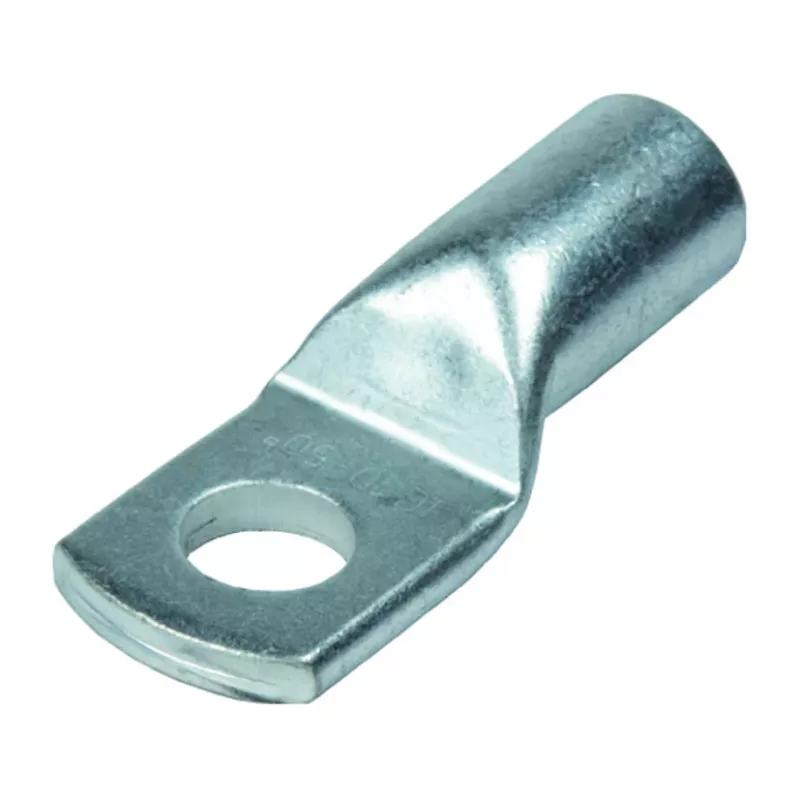

Intercable ICR356 buiskabelschoen 35mm² M6 vertind R-serie

This tubular cable lug from the R-Series provides a high-conductivity, corrosion-resistant connection for stranded copper conductors up to 35 mm². Its tin-plated electrolytic copper body and hexagonal crimp profile ensure low contact resistance and mechanical stability, making it ideal for demanding power distribution tasks.

Advantages

Electro-tin plating offers excellent protection against oxidation and aggressive environments, while the flared entry simplifies cable insertion. The lug supports fine, extra-fine, and standard stranded conductors (Class 2, 5, 6), ensuring compatibility with a wide range of cable types. A standard wall thickness barrel delivers reliable crimping performance with standard hexagonal dies.

Suitable for

• Power distribution and control panels
• Automotive and marine electrical systems
• Industrial machinery and switchgear
• High-current connections up to 1000 V AC/DC

Key specifications

• Cable cross-section: 35 mm²
• Bolt hole: M6 (6 mm)
• Material: Electrolytic copper (E-Cu), tin-plated
• Standard: DIN 46235
• Crimping type: Hexagonal
• Operating temperature: -55°C to +150°C
• Insulation: Uninsulated

Recommendations

For best results, use a hexagonal crimping tool with the appropriate die size for 35 mm² conductors. Verify the crimp depth and pull-out force according to applicable standards. The lug is suitable for indoor and outdoor use when protected from direct moisture.
