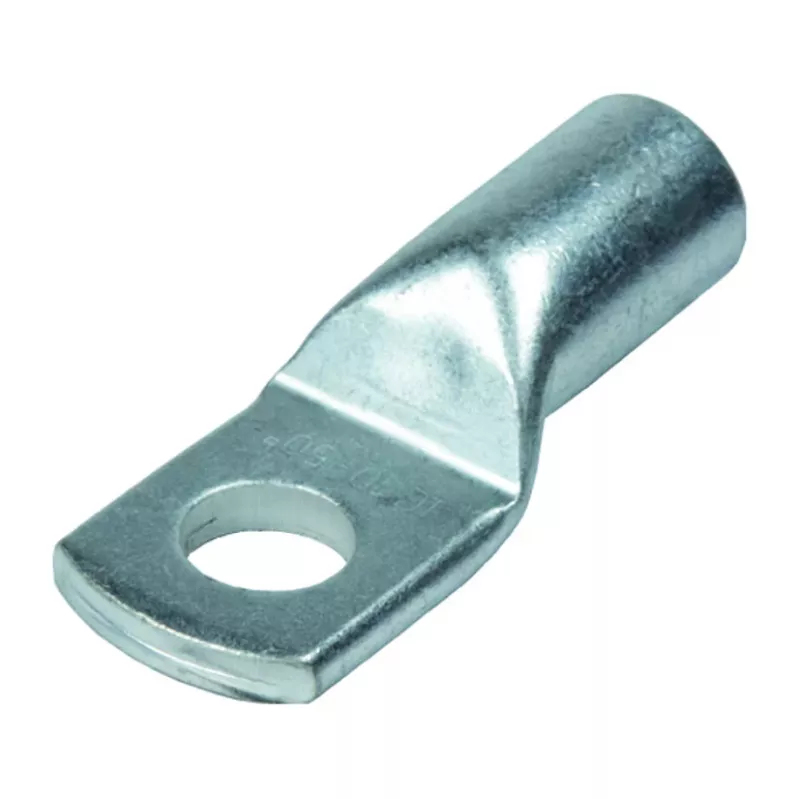

Intercable ICR708 buiskabelschoen 70 mm² M8 vertind R-serie

For high-current connections that demand uncompromising conductivity and mechanical strength, the Intercable ICR708 tubular cable lug from the R-Series stands apart. Built for 70 mm² stranded copper conductors, it combines an electrolytic copper body with a uniform tin-plated finish to resist corrosion and ensure low contact resistance over decades of service. The M8 stud hole and inspection window make installation verifiable at a glance, while the hexagonal crimp profile delivers a gas-tight, vibration-proof joint that outperforms generic lugs in industrial and energy applications.

Highlights

• Precision-formed for 70 mm² stranded copper conductors
• Electrolytic copper (E-Cu) body for maximum conductivity
• Tin-plated surface for corrosion resistance and solderability
• M8 stud hole (8.4 mm) with inspection hole for visual crimp verification
• Hexagonal crimping profile ensures a reliable, gas-tight connection
• Complies with DIN 46235 for dimensional and performance consistency

In daily use

The ICR708 is engineered for professionals who crimp in the field or on the bench. Its 58 mm overall length and 16.5 mm barrel diameter fit standard hexagonal crimping dies for 70 mm² lugs, while the 11.5 mm inner diameter accepts fine-stranded and extra-flexible conductors with ease. The inspection hole lets you confirm full conductor insertion before crimping, eliminating guesswork and reducing rework. Once crimped, the tin-plated surface maintains a stable, low-resistance interface even in humid or mildly corrosive environments, making it suitable for switchgear, motor connections, and power distribution up to 1000 V.

Full specifications

• Conductor cross-section: 70 mm²
• Stud size: M8 (hole diameter 8.4 mm)
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated
• Series: R-Series
• Lug type: Tubular cable lug
• Application: Stranded copper conductors
• Crimping method: Hexagonal crimping
• Standard: DIN 46235
• Operating temperature: -55 °C to +150 °C
• Voltage rating: Up to 1000 V
• Inspection hole: Yes
• Overall length (L): 58 mm
• Outer barrel diameter (D): 16.5 mm
• Inner barrel diameter (d1): 11.5 mm
• Eyelet width (B): 22 mm
• Material thickness (s): approx. 2.8 mm
• Colour: Silver (tin-plated)

Final note

When every milliohm matters, the Intercable ICR708 delivers the consistency and durability that critical electrical connections require.
