GUSTAV KLAUKE GMBH KLAU perskabelschoen 103R6 16mm² M6 elektrolytisch vertind

Engineered for high-current connections up to 16 mm², this ring cable lug delivers exceptional conductivity and corrosion resistance thanks to its electrolytic copper core and electro-tinned finish. The M6 bolt hole ensures a secure, low-resistance termination for industrial, automotive, and power distribution applications.

Overview

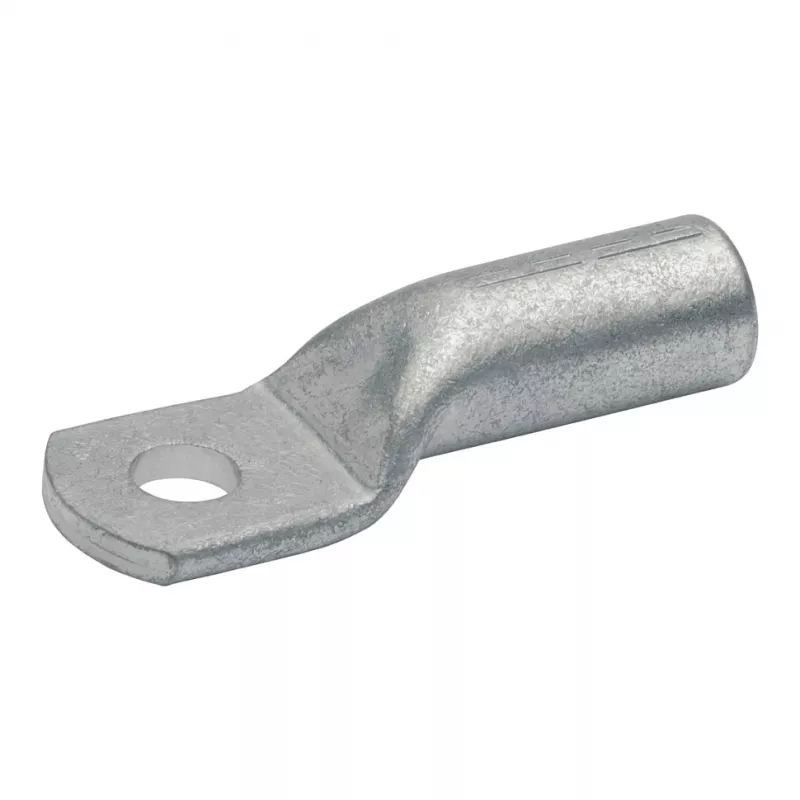

The KLAU 103R6 is a professional-grade uninsulated ring cable lug designed for crimping onto 16 mm² copper conductors. Its robust construction and precise dimensions make it a reliable choice for demanding electrical installations where durability and performance are critical.

What stands out

• High-purity electrolytic copper (E-Cu) for maximum conductivity
• Electro-tinned surface provides excellent corrosion resistance and solderability
• Wide operating temperature range from -40°C to +120°C
• RoHS compliant and suitable for copper conductors
• Single M6 bolt hole for secure bolt-on mounting

Technical details

• Product type: Ring cable lug
• Connection method: Crimp
• Cable cross-section: 16 mm²
• Bolt hole size: M6 (6 mm diameter)
• Material: Electrolytic copper (E-Cu)
• Surface finish: Electro-tinned (galvanically tinned)
• Conductor compatibility: Copper
• Insulation type: Uninsulated
• Temperature range: -40 °C to +120 °C
• RoHS compliance: Yes
• Mounting type: Bolt-on
• Number of bolt holes: 1
• Lug shape: Ring
• Colour: Silver
• Application area: Industrial, automotive, power distribution, electrical installations
• Corrosion resistance: High
• Conductivity: High

Our verdict

For professionals who demand reliable, high-performance terminations, the KLAU 103R6 delivers outstanding electrical and mechanical properties. Its tinned copper construction ensures long-term stability in harsh environments, making it a smart choice for critical connections.
