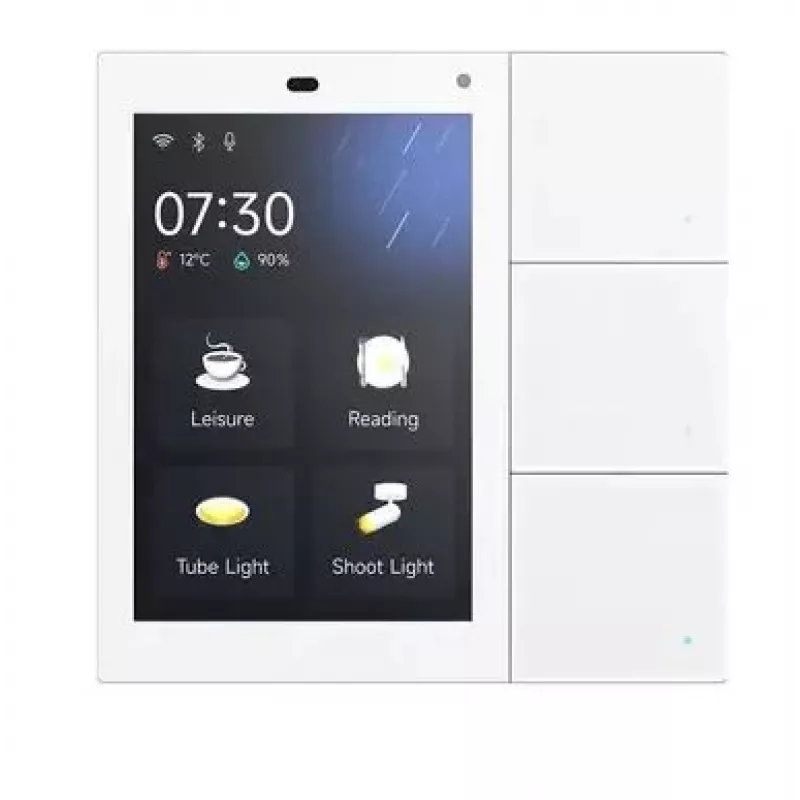

GVS touchpanel S3 KNX ruimteregelaar met intercom en app server, wit 503051170

Managing lighting, temperature, blinds, and intercom from a single wall-mounted panel can be a challenge in modern smart buildings. The GVS Touchpanel S3 solves this by integrating KNX control, SIP intercom, and a built-in app server into one elegant 7-inch touchscreen.

Who is it for

This panel is ideal for homeowners, building managers, and system integrators who need a centralized, customizable control interface for KNX installations, with added intercom functionality and remote access via the GVS Home App.

Main features

• 7-inch IPS capacitive touchscreen with 1024 x 600 resolution for crisp visuals.
• Integrated KNX TP interface for direct connection to the KNX bus.
• SIP-based audio and video intercom support.
• Built-in app server for visualization, logic, scenes, and time programs.
• Integrated sensors: temperature, proximity, and light for automation.
• Quad-core ARM Cortex-A7 processor with 2GB RAM and 8GB eMMC storage.
• Connectivity: Ethernet (RJ45) and Wi-Fi (2.4 GHz).
• Flush-mounted design with high-quality plastic housing and glass front in white.

Specifications

• Display: 7-inch IPS capacitive touchscreen, 1024 x 600 pixels
• Processor: Quad-core ARM Cortex-A7
• Operating system: Android (customized)
• Memory: 2GB RAM, 8GB eMMC storage
• KNX interface: Integrated KNX TP (Twisted Pair)
• Network: Ethernet (RJ45), Wi-Fi 2.4 GHz
• Power supply: DC 24V
• Mounting: Flush-mounted
• Intercom: SIP-based audio and video
• Integrated sensors: Temperature, proximity, light
• Audio: Built-in microphone and speaker
• Color: White

Tips

For remote access, use the GVS Home App. The panel supports customizable GUI for personalized control. Ensure a stable KNX bus connection and 24V DC power supply for optimal performance.
