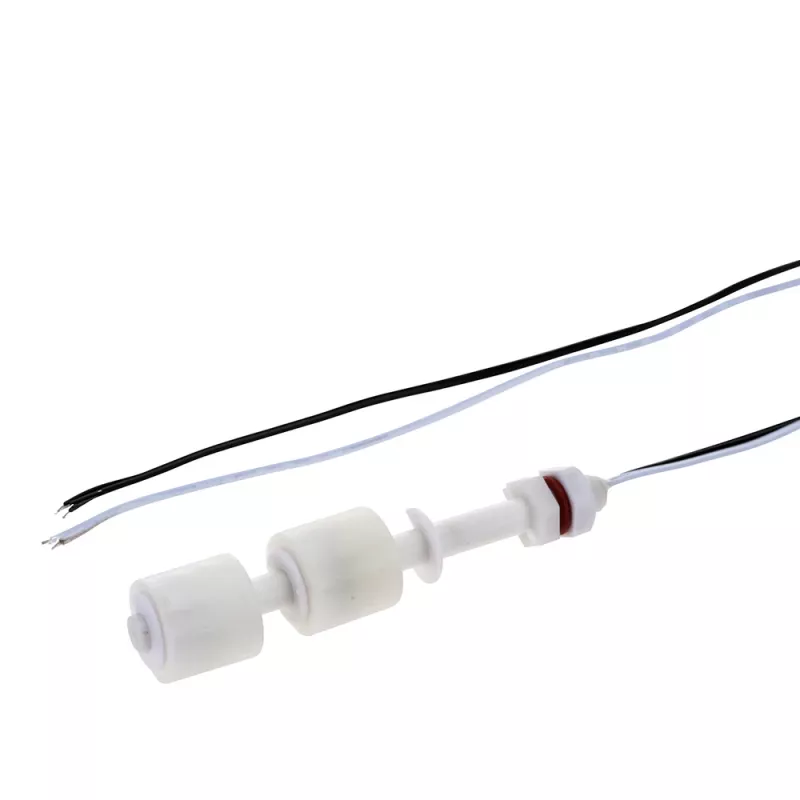

H-TRONIC SSK S2 vlotter­schakelaar 10 m kabel 1114645

Float switch with changeover contact for level control in clean water, dirty water, sewage, oils, and diesel. The switch operates at an angle of approximately 45° and handles up to 250 V AC and 10 A.

Advantages

Polypropylene housing and H07RN-F cable provide durability. IP68 protection allows submersion up to 1 bar. The 10 m cable enables installation in deep tanks.

Suitable for

• Clean water
• Dirty water
• Sewage
• Oils
• Diesel

Key specifications

• Switching function: changeover contact (SPDT)
• Cable length: 10 m
• Max switching voltage: 250 V AC
• Max switching current: 10 A
• Max switching power: 2.2 kW
• Protection class: IP68
• Operating temperature: 0 to +50 °C
• Housing material: polypropylene (PP)
• Cable type: H07RN-F
• Number of conductors: 3
• Conductor cross-section: 1 mm²
• Max operating pressure: 1 bar
• Specific gravity of liquid: 0.95 - 1.05 g/cm³
• Switching angle: approx. 45°
• Min. liquid level difference: approx. 20 cm

Recommendations

Mount suspended with a counterweight or fixed point. Suitable for level control in tanks and sumps.
