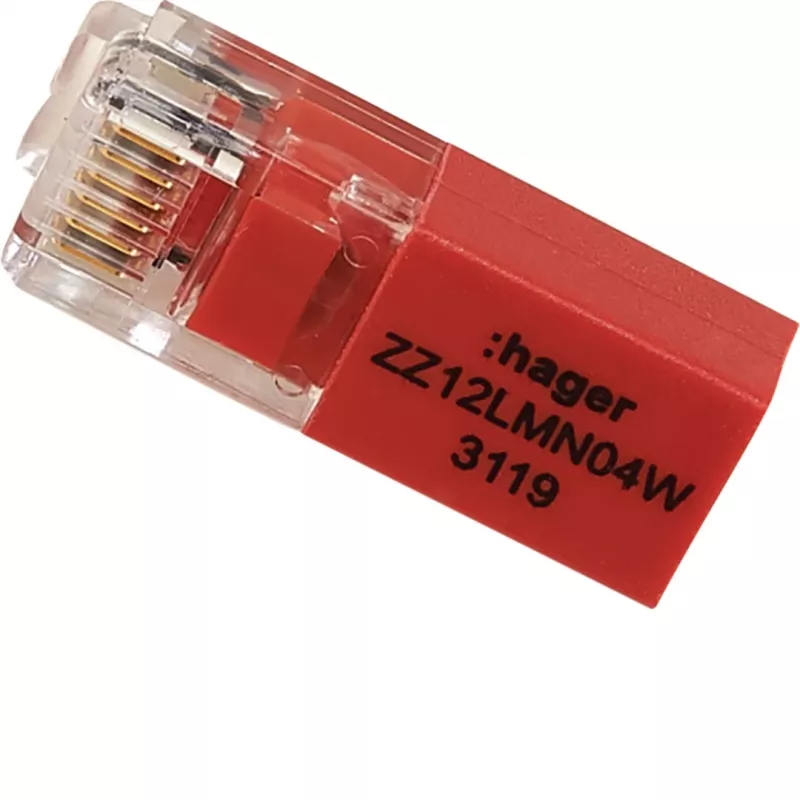

Hager afsluitweerstand ZZ12LMN04W RJ12 voor LMN-module 120 Ohm

Installers and building automation technicians use the Hager ZZ12LMN04W termination resistor to properly terminate the LMN bus in Hager building automation and energy management systems. This plug-in resistor prevents signal reflections at the end of the bus line, ensuring stable communication between LMN modules.

Key specifications

• Resistance: 120 Ohm
• Connection: RJ12 plug
• Compatibility: Hager LMN bus system
• Function: Bus termination, signal reflection prevention
• Mounting: Direct plug-in to LMN module slot
• Operating temperature: -5 to +45 °C
• Storage temperature: -25 to +70 °C
• Protection degree: IP20
• Housing material: Plastic
• Compliance: RoHS, REACH

Why choose it

This termination resistor ensures reliable data transmission on the LMN bus by eliminating signal reflections that can cause communication errors. Its plug-in design makes installation quick and tool-free.

Ideal use cases

• Terminating the end of an LMN bus line in building automation
• Preventing signal degradation in energy management systems
• Ensuring stable communication between Hager LMN modules

Good to know

The resistor is a passive component and does not require a separate power supply. It is designed for indoor use in dry environments (IP20).
