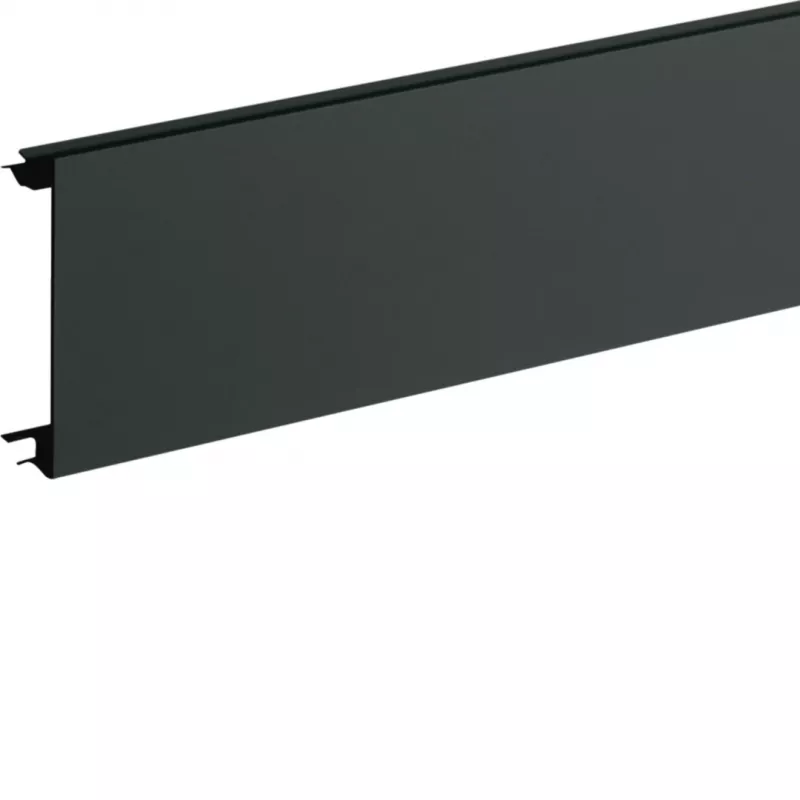

Hager BR08029011 plintgoot afdekking PVC voor BR 80mm grafietzwart

The Hager BR08029011 is a high-quality dado trunking lid designed for use with Hager BR 80mm trunking systems. Made from durable PVC in a graphite black finish (RAL 9011), this lid provides a secure and professional cover for cable management in commercial and public buildings. With a length of 2000 mm and a snap-on mounting method, it ensures quick installation and reliable protection for routed cables.

Advantages

This trunking lid offers easy snap-on installation, a self-extinguishing fire behavior for enhanced safety, and an IK07 impact resistance rating. Its structured matte surface provides a modern look while maintaining durability. The lid is recyclable and complies with EN 50085-1 and EN 50085-2-1 standards.

Suitable for

• Indoor cable routing in offices, schools, hospitals, and other commercial spaces
• Use with Hager BRN/BRS series dado trunking systems
• Concealing and protecting electrical and data cables

Key specifications

• Product Type: Dado Trunking Lid
• Material: Polyvinyl Chloride (PVC)
• Color: Graphite Black (RAL 9011)
• Length: 2000 mm
• Width Compatibility: 80 mm
• Mounting: Snap-on / Clip-on
• Fire Behavior: Self-extinguishing
• Impact Resistance: IK07
• Glow Wire Test: 850 °C
• Protection Degree: IP30 (when installed correctly)
• Operating Temperature: -5°C to +60°C
• Thickness: 7 mm
• Standards: EN 50085-1, EN 50085-2-1

Recommendations

For a complete cable management solution, pair this lid with Hager BR80 base channels and appropriate fittings. Ensure proper installation to achieve IP30 protection. This product is ideal for new installations or retrofitting existing trunking systems.
