Hager BR6510019011 Tehalit BR kabelgoot onderdeel, PVC, grafietzwart, 80mm, frontvergrendeling, 2m

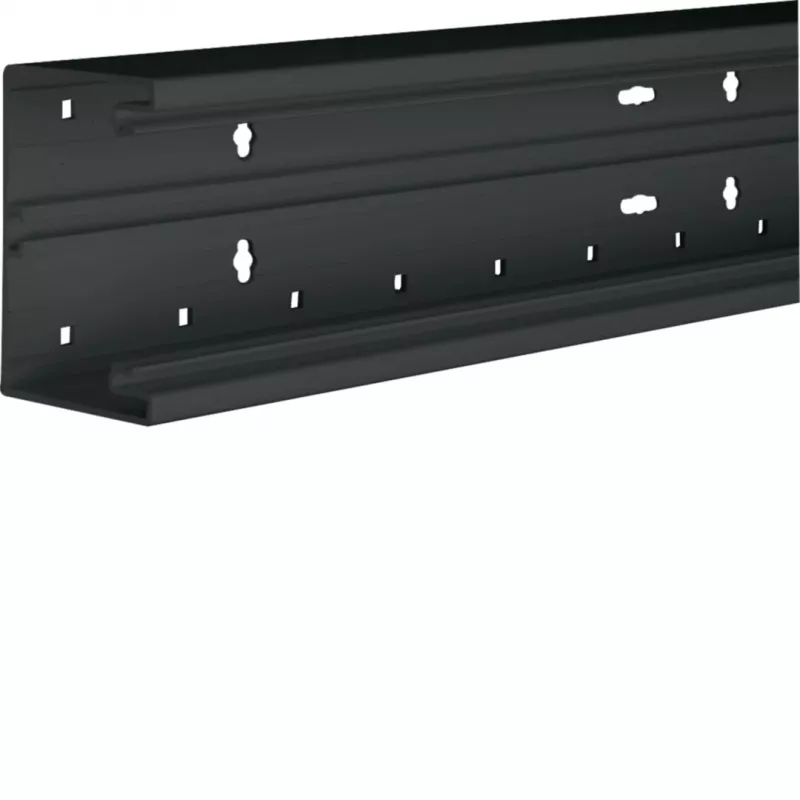

Cable trunking base part from the Hager Tehalit BR series, made of PVC in graphite black (RAL 9011). This front-locking base profile is designed for secure cable routing and protection in electrical installations, with a system width of 100 mm and a height of 65 mm. The 2-meter length provides ample coverage for linear runs, while the single compartment base accepts compatible Tehalit BR covers and accessories.

Advantages

The front-locking mechanism allows quick and secure cover attachment without tools, simplifying installation and maintenance. The PVC material offers self-extinguishing properties and resistance to temperatures from -5°C to +60°C, ensuring reliable performance in typical indoor environments.

Suitable for

• Routing and protecting cables in commercial and residential electrical installations
• Use with Tehalit BR series covers and accessories
• Surface mounting on walls or ceilings where a robust trunking base is required

Key specifications

• Material: PVC
• Colour: Graphite black (RAL 9011)
• System width: 100 mm
• System height: 65 mm
• Length: 2000 mm
• Number of compartments: 1
• Mounting type: Front-locking
• Halogen-free: No
• Self-extinguishing: Yes
• Temperature resistance: -5°C to +60°C

Recommendations

Pair with Hager Tehalit BR covers and end caps for a complete, professional cable management solution.
