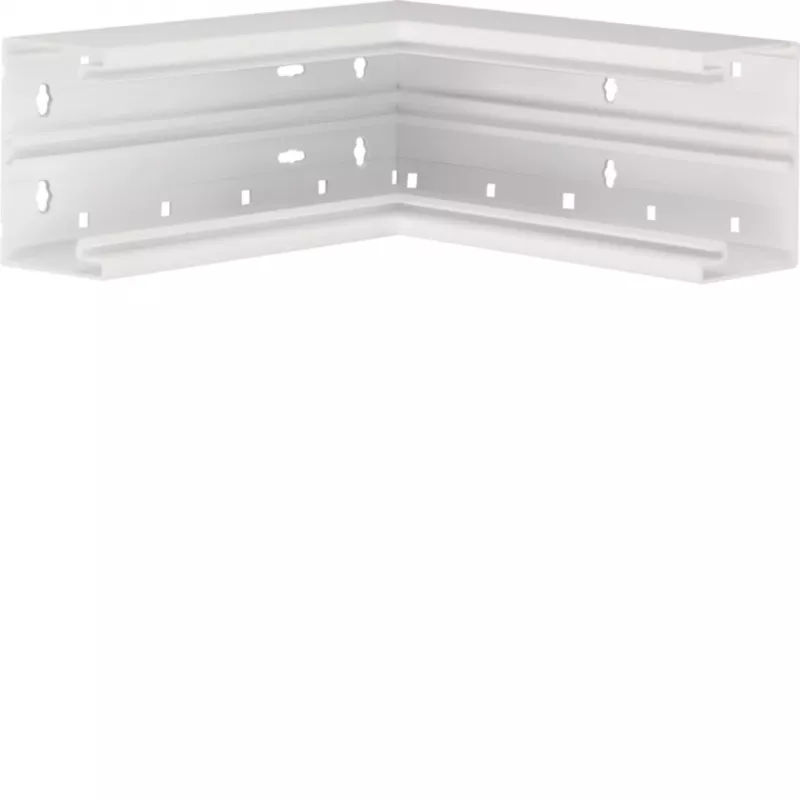

Hager BR6510049016 binnenhoek, verkeerswit (RAL 9016) voor Tehalit BR 65x100 mm goot

When surface-mounted cable trunking meets a wall corner, the joint can look unfinished and leave cables exposed. The Hager BR6510049016 inner corner solves this by providing a clean, snap-on transition for Tehalit BR trunking at internal 90° angles. It keeps the installation tidy and protects cables from snagging or damage at the bend.

Who is it for

Electricians and installers working with Hager Tehalit BR trunking in indoor environments such as offices, commercial spaces, or residential buildings. It is especially useful when routing cables around room corners where a continuous, neat appearance is required.

Main features

• Compatible with Hager Tehalit BR trunking, size 65 x 100 mm
• Traffic white (RAL 9016) colour matches standard white trunking
• Made from PVC for durability and easy handling
• Clip-on mounting for quick installation without tools
• Symmetrical design for internal corners
• Self-extinguishing material for added safety in indoor installations

Specifications

• Product type: Inner corner
• Compatible trunking system: Hager Tehalit BR
• Compatible trunking dimensions (H x W): 65 x 100 mm
• Colour: Traffic white (RAL 9016)
• Material: PVC
• Halogen-free: No
• Mounting type: Clip-on / Snap-on
• Temperature resistance: -5 to +60 °C
• Protection class: IP30
• Fire behaviour: Self-extinguishing
• Surface finish: Untreated
• Gloss level: Matt
• Application area: Indoor cable management
• Number of compartments: 1
• Design: Symmetrical
• Suitable for maintaining functional integrity: No

Tips

For a complete corner solution, pair this inner corner with the corresponding outer corner from the same Tehalit BR series. Ensure the trunking ends are cut square for a precise fit. The clip-on design allows for easy removal if cable changes are needed later.
