Hager BR6517089016 T-stuk verkeerswit voor 170x65mm kabelgoot

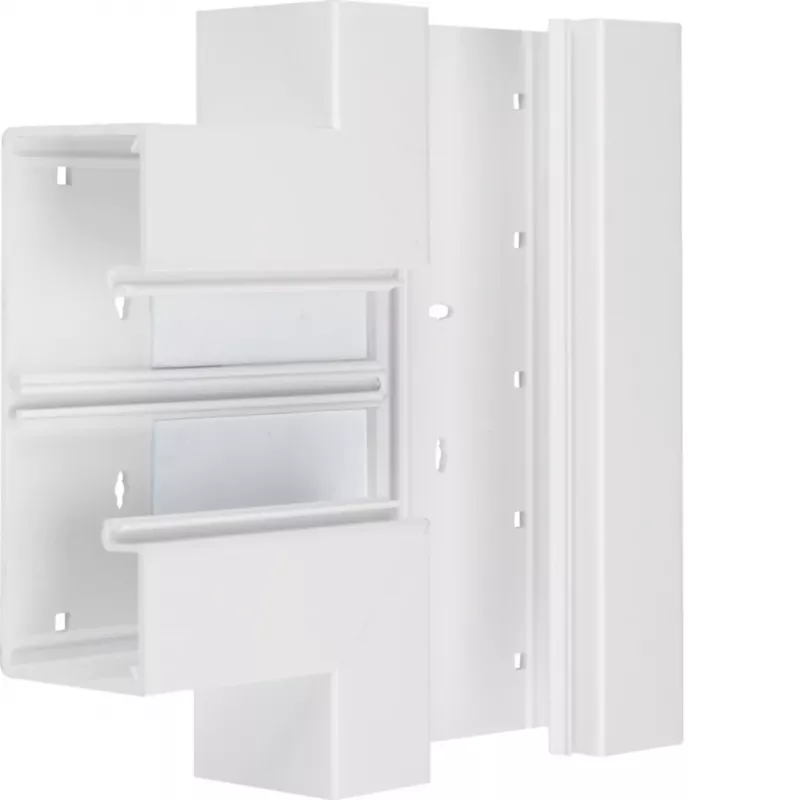

This T-piece fitting connects three sections of Hager tehalit.BR trunking at right angles, creating a clean branch point in cable management runs. Its snap-on mounting enables fast, tool-free installation on compatible 170 mm wide by 65 mm high trunking.

Advantages

The fitting is made from halogen-free PVC with a matt traffic white finish (RAL 9016), matching the trunking profile for a seamless appearance. Self-extinguishing properties contribute to fire safety in building installations.

Suitable for

• Branching cable routes in offices and commercial spaces
• Routing power and data cables along walls or under floors
• Use with Hager tehalit.BR 170x65 mm trunking

Key specifications

• Type: T-piece
• System: Hager tehalit.BR
• Compatible trunking: 170 mm width, 65 mm height
• Material: PVC, halogen-free
• Colour: Traffic white, RAL 9016, matt
• Mounting: Snap-on
• Operating temperature: -25 to +60 °C

Recommendations

For a complete installation, combine with Hager tehalit.BR trunking lengths and other fittings such as flat angles and end caps. Verify that the trunking dimensions match before ordering.
