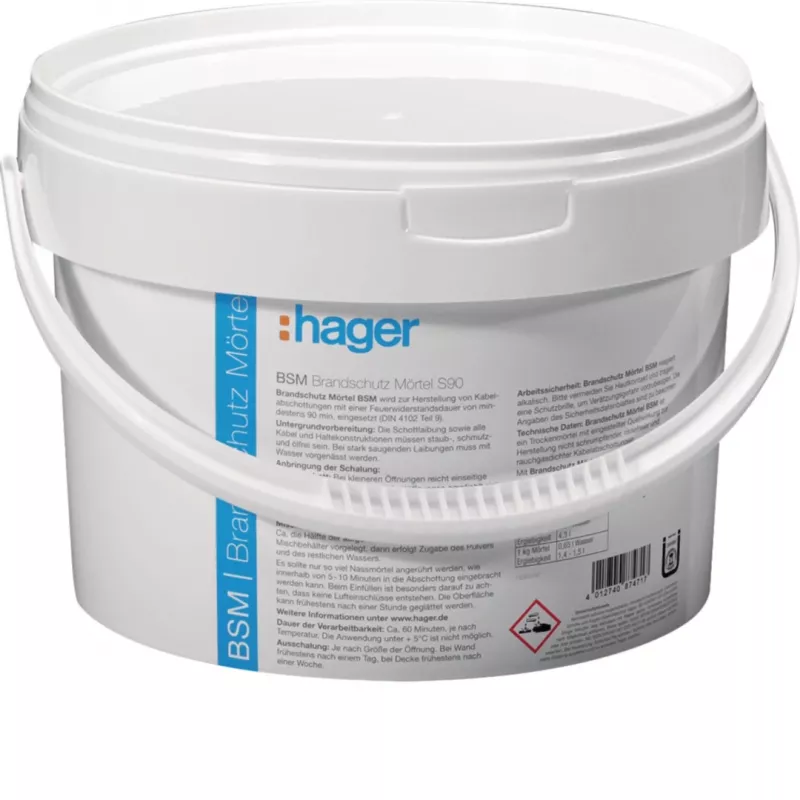

Hager brandwerende mortel S90 3kg zak BSM0003

Fire resistance class S90 for 90 minutes of cable penetration sealing in one mineral-based, cement-bound mortar.

Overview

The Hager BSM0003 is a fire protection mortar for sealing cable penetrations, cable bundles, empty conduits, and non-combustible pipes. It comes in a 3 kg bag and is applied with a trowel or spatula.

What stands out

• Fire resistance class S90 (90 minutes)
• Smoke tightness for effective sealing
• Mineral-based, cement-bound composition
• DIBt approval and compliance with DIN 4102-9
• Suitable for single cables, cable bundles, empty conduits, and non-combustible pipes

Technical details

• Product type: Fire protection mortar
• Application area: Cable penetration sealing
• Material: Mineral-based, cement-bound
• Packaging unit: 3 kg bag
• Colour (mixed): Grey
• Mixing ratio: Approx. 0.25 - 0.30 l water per kg mortar
• Processing time: Approx. 30-60 minutes at 20°C
• Drying time (initial set): Approx. 24 hours
• Full curing time: Approx. 7 days
• Density (dry): Approx. 1.2 - 1.4 kg/dm³
• Application temperature: +5°C to +30°C
• Storage conditions: Dry, frost-free, original packaging
• Shelf life: 12 months unopened
• Standards/approvals: DIBt approval, complies with DIN 4102-9
• Installation method: Trowel, spatula
• Smoke tightness: Yes

Our verdict

A reliable fire protection mortar for sealing cable penetrations with S90 fire resistance and smoke tightness, backed by DIBt approval.
