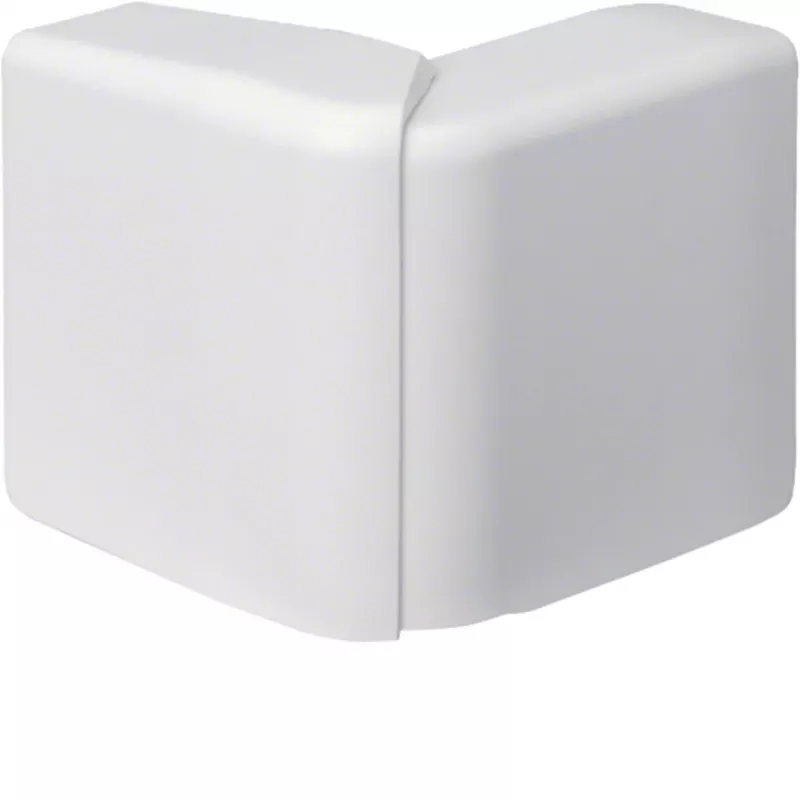

HAGER buitenhoek SL2005539016 SL 20x55mm verkeerswit (RAL 9016)

The HAGER External Corner SL2005539016 is a high-quality accessory designed for the OBO Bettermann SL series trunking system. This 90-degree external corner piece ensures a seamless and professional finish for cable management installations in commercial and residential environments. Manufactured from durable PVC, it offers reliable protection for cables while maintaining a clean aesthetic.

Advantages

This external corner simplifies the routing of cables around corners, reducing installation time and ensuring a neat appearance. Its clip-on mounting method allows for quick and secure attachment to the trunking, providing a stable and long-lasting solution. The traffic white color (RAL 9016) blends well with standard wall finishes, making it ideal for visible installations.

Suitable for

• Surface-mounted cable trunking systems in offices, retail spaces, and industrial settings
• Wall and ceiling mounting applications requiring 90-degree turns
• Use with OBO Bettermann SL series trunking (20x55mm)

Key specifications

• Accessory Type: External Corner
• Compatible Trunking Dimensions (H x W): 20 x 55 mm
• System Series: OBO Bettermann SL
• Color: Traffic White (RAL 9016)
• Material: Polyvinyl Chloride (PVC)
• Halogen-free: No
• Self-extinguishing: Yes
• Mounting Method: Clip-on / Push-fit
• Angle: 90 degrees
• UV Resistance: Limited (Standard PVC)
• Temperature Range (Operation): -5°C to +60°C
• Protection Rating: IP30
• Suitable for Wall Mounting: Yes
• Suitable for Ceiling Mounting: Yes
• RoHS Compliance: Yes
• REACH Compliance: Yes

Recommendations

For a complete trunking system, pair this external corner with compatible SL series trunking channels, internal corners, and end caps. Ensure the trunking dimensions match 20x55mm for proper fit. This product is not halogen-free, so consider alternative materials if required for specific fire safety regulations.
