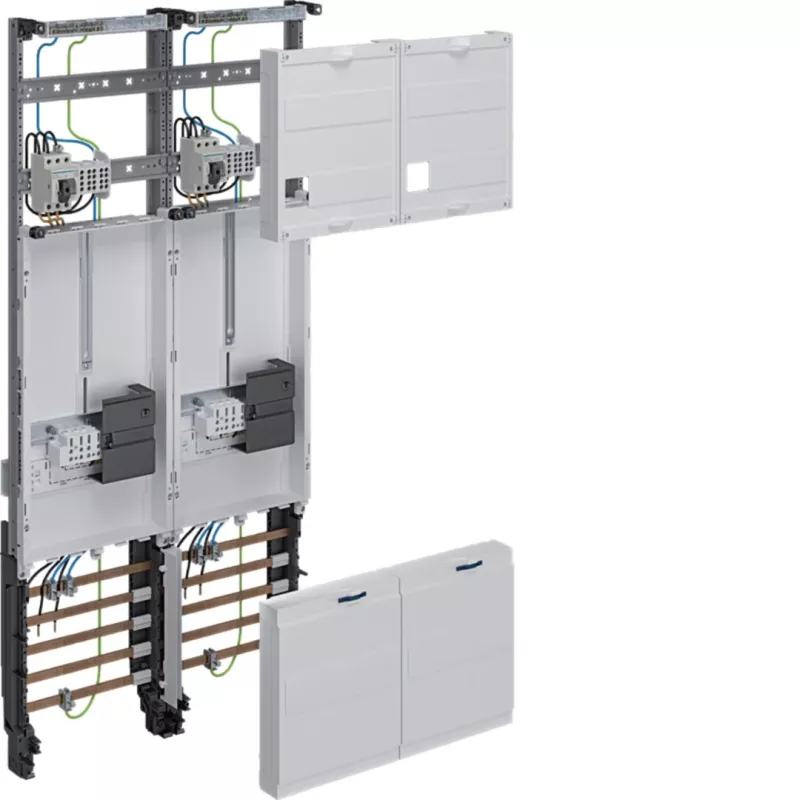

HAGER compleet meterveld 2 meterplaatsen Universal Z H1050mm 2-veld Hessen Design ZK34C3N

Complete metering field for two universal meter positions, pre-wired and pre-assembled for quick installation in residential and commercial electrical installations. The Hessen regional standard design ensures compliance with local network operator requirements.

Advantages

QuickConnect terminals enable fast, tool-free wiring. The 5-pole busbar system rated up to 63 A provides reliable power distribution. Compact dimensions (H1050 x W250 x D160 mm) fit standard meter cabinets.

Suitable for

• Residential and commercial electrical installations
• eHZ and conventional meters
• Meter cabinets and distribution enclosures

Key specifications

• Number of meter positions: 2
• Meter position type: Universal Z
• Height: 1050 mm
• Width: 250 mm
• Depth: 160 mm
• Busbar system: 5-pole, up to 63 A
• Connection technology: QuickConnect
• Number of distribution rows: 3
• Material: Sheet steel
• Protection class: IP2XC
• Regional standard: Hessen

Recommendations

Ideal for electricians needing a reliable, pre-assembled metering solution that meets Hessen network operator specifications.
