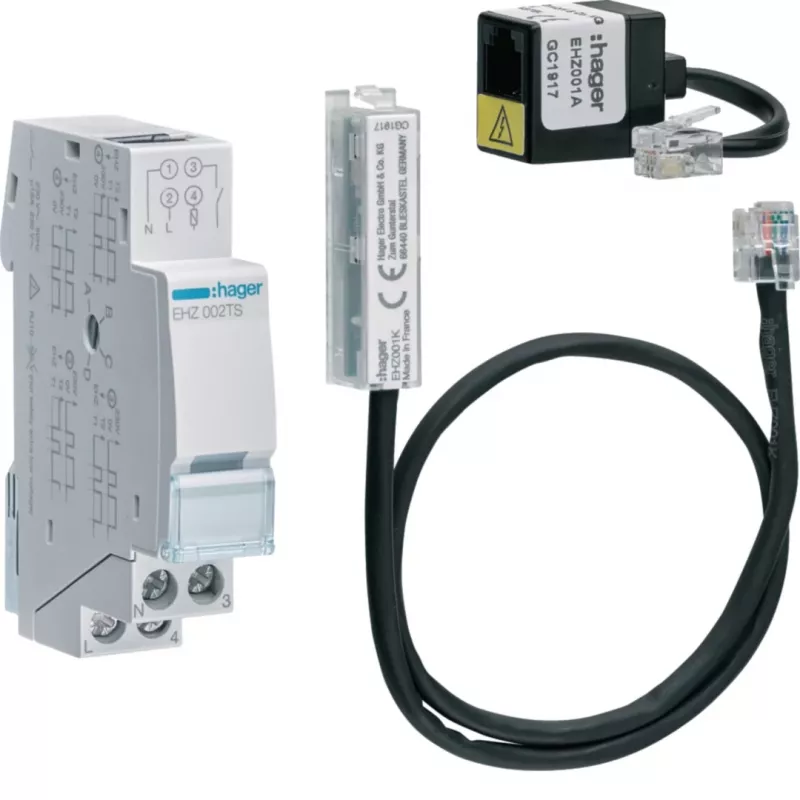

HAGER EHZ003 eHZ tariefbeheer-set (EHZ003)

The HAGER EHZ003 is an eHZ tariff management control unit that enables load control based on signals from electronic household meters (eHZ). With two potential-free relay outputs, each rated for 16 A (AC-1), it allows switching of loads according to tariff signals, supporting demand-side management in residential and commercial installations.

Overview

Designed for DIN rail mounting, the EHZ003 occupies 4 module units (TE) and operates on 230 V AC at 50/60 Hz. It receives input via an S0 interface from the eHZ meter, providing a reliable method for tariff-based load switching. The unit features screw terminals for secure connections and a thermoplastic housing for durability.

What stands out

• Two potential-free relay outputs for independent load control
• 16 A switching capacity per channel (AC-1)
• Compact 4 TE DIN rail design
• Low power consumption of less than 1 W
• Wide ambient temperature range from -5 to +45 °C

Technical details

• Product type: eHZ tariff management control unit
• Application: Load control based on smart meter signals
• Compatibility: Electronic household meters (eHZ)
• Number of control channels: 2
• Output type: Potential-free relay outputs
• Max. switching current per channel: 16 A (AC-1)
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Installation type: DIN rail mounting
• Module width: 4 TE
• Input signal: S0 interface from eHZ meter
• Protection class: IP20
• Ambient temperature range: -5 to +45 °C
• Power consumption: < 1 W
• Connection type: Screw terminals
• Housing material: Thermoplastic
• Functionality: Tariff-based load switching, demand-side management

Our verdict

The HAGER EHZ003 offers a straightforward solution for tariff-based load management in eHZ metering environments, with robust relay outputs and a compact DIN rail footprint.
