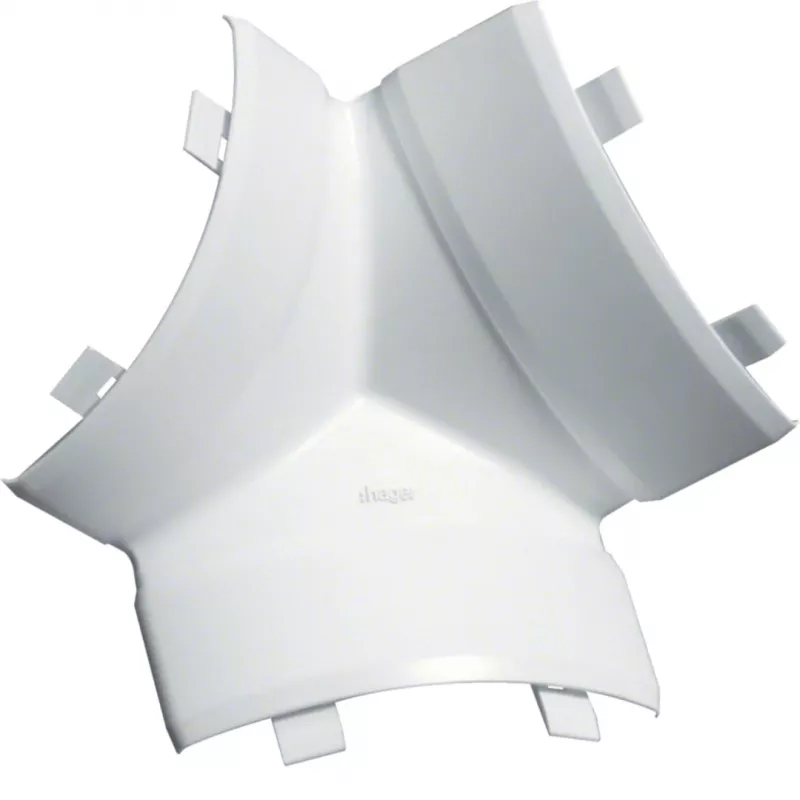

HAGER EK4004089016 T-stuk verkeerswit voor 40x40 mm kabelgoot

Routing cables through a 40x40 mm trunking system often requires a clean way to branch off in three directions without leaving exposed wiring or creating an untidy junction. The HAGER EK4004089016 T-piece solves this by providing a symmetrical, clip-on branch fitting that maintains the trunking's profile and protection.

Who is it for

Electricians and installers working on indoor cable management projects who need a reliable, flame-retardant T-junction for Hager Tehalit.BR 40x40 mm trunking. It suits commercial and residential installations where a neat, safe branch is required.

Main features

• Symmetrical T-shape with three outlets for branching cable runs
• Clip-on / push-fit mounting for quick, tool-free installation
• Made from PVC with flame retardant and self-extinguishing properties
• Traffic white (RAL 9016) finish blends with standard trunking
• Compatible with 40x40 mm cable trunking systems

Specifications

• Product type: T-piece / Branch Fitting
• System compatibility: Cable Trunking System
• Trunking dimensions (W x H): 40 x 40 mm
• Material: Polyvinyl Chloride (PVC)
• Colour: Traffic White (RAL 9016)
• Halogen-free: No
• Self-extinguishing: Yes
• Flame retardant: Yes
• Mounting type: Clip-on / Push-fit
• Application: Indoor Cable Routing
• Surface protection: Untreated
• Operating temperature range: -5 °C to +60 °C
• Number of outlets: 3
• Design: Symmetrical T-shape
• Manufacturer series: Hager Tehalit.BR

Tips

Ensure the trunking ends are cut square and deburred before clipping on the T-piece for a secure fit. For best alignment, install the T-piece after the trunking sections are fixed in place.
