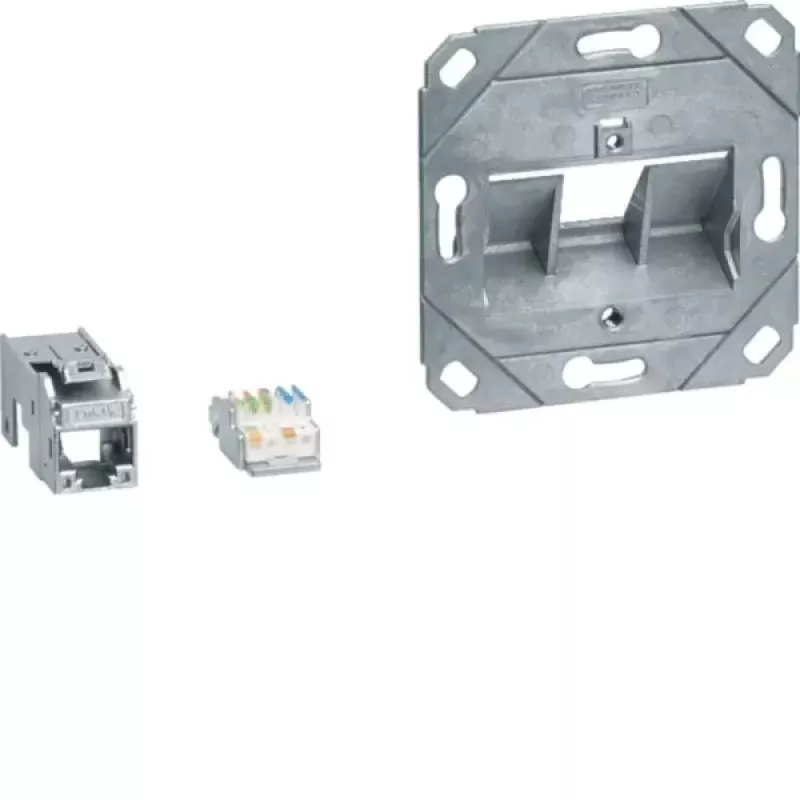

Hager GMKSRJ45C6A1 Cat.6A afgeschermde RJ45 Keystone-module

The Hager GMKSRJ45C6A1 stands out as a tool-free RJ45 keystone module engineered for Cat.6A / Class EA performance, supporting 10 Gigabit Ethernet up to 500 MHz. Its die-cast zinc housing and gold-plated contacts ensure durable, high-quality connections in Tehalit data outlets and standard keystone frames.

Highlights

• Tool-free IDC termination for fast, reliable installation
• Shielded design with die-cast zinc housing for excellent EMI protection
• Supports PoE+ (IEEE 802.3at) for powering devices
• Compatible with T568A and T568B wiring standards
• Optimized for low crosstalk and high return loss

In daily use

This module is ideal for high-speed network installations where performance and ease of installation are critical. The tool-free IDC terminals allow quick termination of solid or stranded conductors, while the shielded construction maintains signal integrity in noisy environments. With over 750 insertion cycles, it is built for long-term reliability.

Full specifications

• Connector type: RJ45
• Category: Cat.6A (Class EA)
• Shielding: Shielded
• Transmission speed: 10 Gigabit Ethernet (10GBase-T)
• Frequency range: Up to 500 MHz
• Connection technology: Tool-free IDC
• Wiring standard: T568A / T568B
• Housing material: Die-cast zinc
• Contact plating: Gold-plated
• Number of ports: 1
• Compatibility: Tehalit data outlets and standard keystone frames
• PoE support: PoE+ (IEEE 802.3at)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Insertion cycles: >750
• Operating temperature: -10 to +60 °C
• Mounting type: Keystone module

Final note

A robust and future-proof choice for demanding network infrastructures, combining high performance with straightforward installation.
