Hager hoofdansluitkast ZAN334KL K3 transparant 137x245x415

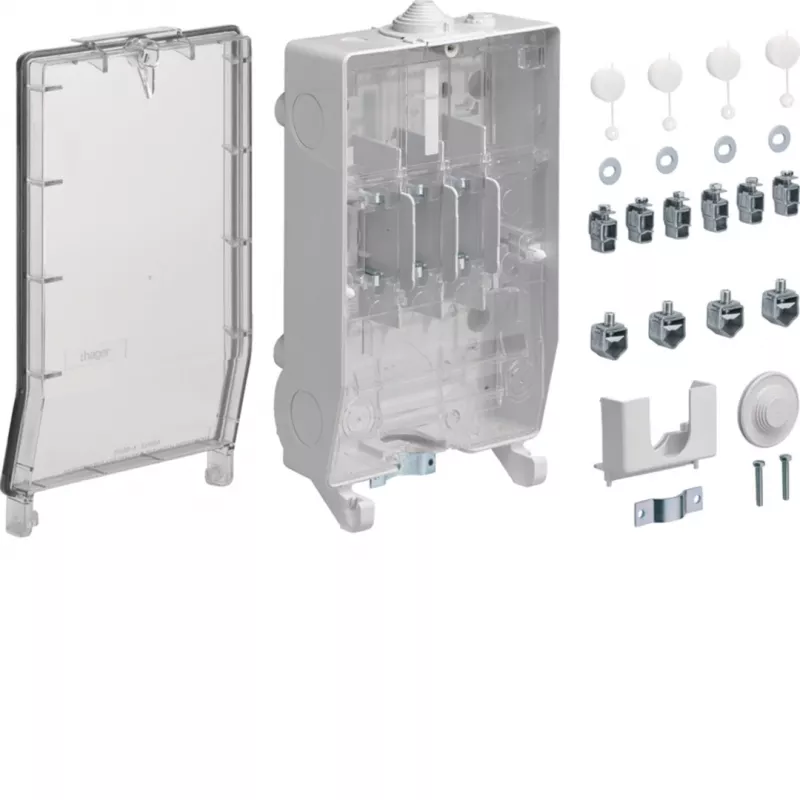

Residential power supply connections need a secure, clearly inspectable interface between the utility feed and the building's internal distribution. The Hager ZAN334KL main connection box provides a 3-pole NH00 fuse-compatible enclosure with a transparent cover for visual verification, surface-mounted in a compact thermoplastic housing.

Who is it for

Electricians and electrical contractors installing or upgrading residential service entrances where a DIN VDE compliant main connection point is required. The transparent cover allows quick inspection of fuse links and terminal connections without opening the enclosure.

Main features

• Transparent cover for direct visual inspection of NH00 fuse links and terminals
• 3-pole main line branch terminal with cross-sections from 1.5 to 50 mm² for the main line and 1.5 to 16 mm² for branch lines
• Pre-punched cable entries on top and bottom for flexible wiring
• Thermoplastic housing in light grey (RAL 7035), surface-mounted
• Rated voltage 400 V AC, maximum current 160 A

Specifications

• Product type: Main connection box
• Number of poles: 3
• Fuse type: NH00
• Cover: Transparent
• Material: Thermoplastic
• Colour: Light grey (RAL 7035)
• Mounting: Surface-mounted
• Rated voltage: 400 V AC
• Rated current: 160 A
• Main terminal cross-section: 1.5 - 50 mm²
• Branch terminal cross-section: 1.5 - 16 mm²
• Cable entry: Top and bottom, pre-punched
• Dimensions (H x W x D): 137 x 245 x 415 mm

Tips

When installing, ensure the enclosure is mounted on a flat, stable surface and that all cable entries are properly sealed to maintain the IP54 protection. The transparent cover allows periodic visual checks without interrupting the power supply.
