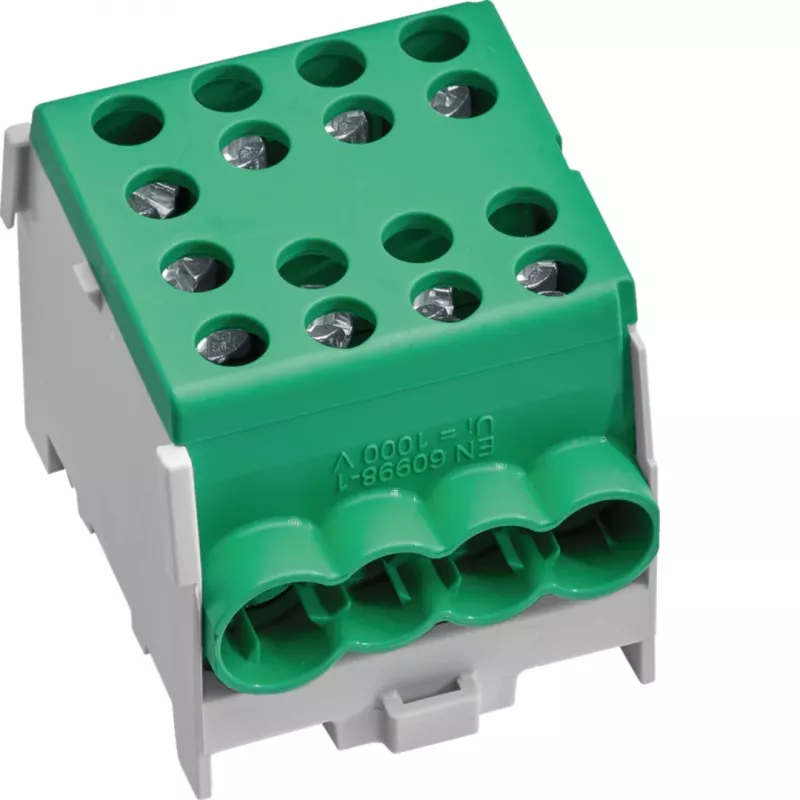

HAGER KH35E8 1-polige hoofdleiding-aftakklemmenblok, 10-35 mm², 125 A, groen

Rated for 125 A and 1000 V AC/DC, the HAGER KH35E8 main line branch terminal block handles main conductors from 10 to 35 mm² and branch conductors from 1.5 to 16 mm². Its screw connection system provides secure, maintenance-free terminations in distribution boards and industrial panels.

Overview

The KH35E8 is a 1-pole branch terminal block designed for main line distribution. It features two main connections (input and output) for through-wiring and four branch connections for tapping off to smaller conductors. The green housing is made of polyamide, offering durability and electrical insulation. With an IP20 rating, it is intended for use in enclosed electrical installations where protection against solid objects larger than 12 mm is sufficient.

What stands out

• High current capacity: 125 A rated current for demanding applications.
• Wide conductor range: accepts rigid and flexible conductors from 10 to 35 mm² on main side and 1.5 to 16 mm² on branch side.
• Robust construction: polyamide housing and brass/copper terminals ensure long-term reliability.
• Versatile mounting: direct or screw mounting for flexible installation.

Technical details

• Number of poles: 1
• Rated voltage: 1000 V AC/DC
• Rated current: 125 A
• Main conductor cross-section (rigid/flexible): 10 - 35 mm²
• Branch conductor cross-section (rigid/flexible): 1.5 - 16 mm²
• Connection type: screw
• Number of main connections: 2
• Number of branch connections: 4
• Mounting type: direct / screw
• Housing material: polyamide (PA)
• Terminal material: brass / copper
• Operating temperature: -25 to +70 °C
• Standards: EN 60947-7-1

Our verdict

The HAGER KH35E8 is a reliable and efficient solution for main line branching in electrical distribution. Its high current rating, wide conductor acceptance, and robust build make it suitable for professional installations where space and performance matter.
