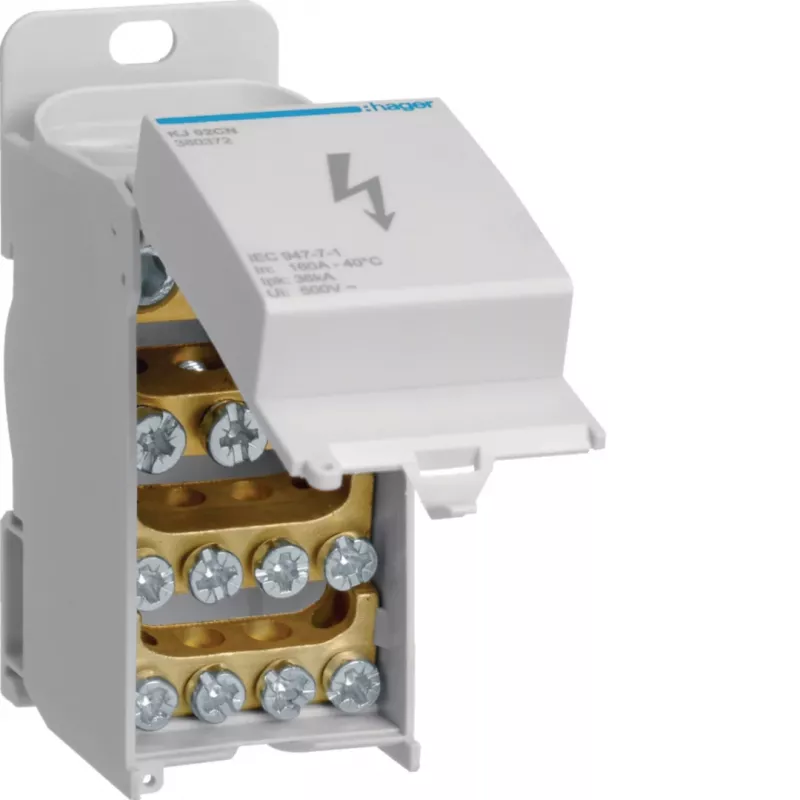

Hager KJ02CN 160A 1-polige gesloten verdeelklem

Managing high-current power distribution in industrial and commercial panels often requires a reliable, safe, and compact solution. The Hager KJ02CN distribution block addresses this need by providing a robust 160A, 1-pole connection point that consolidates power from a single large conductor to multiple smaller outgoing circuits. Its closed design protects against accidental contact, ensuring safety and compliance in demanding electrical installations.

Who is it for

This distribution block is ideal for electricians, panel builders, and maintenance professionals working in industrial control panels, switchgear, and building electrical systems. It suits applications where a main supply must be split into several branch circuits without the clutter and risk of improvised connections. Whether upgrading an existing panel or designing a new one, the KJ02CN offers a dependable and space-efficient solution.

Main features

• High current rating of 160A for demanding power distribution tasks.
• 1-pole configuration with one input and six outputs for flexible circuit branching.
• Accepts input conductors from 16 to 70 mm² and output conductors from 1.5 to 16 mm², accommodating a wide range of cable sizes.
• Closed, insulated housing prevents accidental contact and enhances safety.
• Robust screw terminals ensure secure, low-resistance connections.
• Versatile mounting options: DIN rail or screw mounting for easy integration.
• IP20 protection rating suitable for indoor panel environments.
• High short-circuit withstand capability of 20 kA for reliable operation under fault conditions.

Specifications

• Brand: Hager
• Model: KJ02CN
• MPN: KJ02CN
• EAN: 3250613803728
• Rated current: 160 A
• Number of poles: 1
• Input conductor cross-section: 1 x 16-70 mm²
• Output conductor cross-section: 6 x 1.5-16 mm²
• Connection type: Screw terminal
• Mounting type: DIN rail / Screw mounting
• Degree of protection: IP20
• Rated voltage: 1000 V AC/DC
• Short-circuit withstand current: 20 kA
• Housing material: Insulating material
• Product colour: Grey
• Number of inputs: 1
• Number of outputs: 6
• Design: Closed
• Product type: Distribution block

Tips

Ensure all connections are tightened to the manufacturer's recommended torque to prevent overheating. When selecting cable sizes, consider the maximum current of each branch circuit and derate as necessary. Mount the block in a location with adequate ventilation and away from direct moisture, despite its IP20 rating. For DIN rail mounting, verify compatibility with your rail type (e.g., 35mm top-hat rail). Always de-energize the panel before installation or maintenance.
