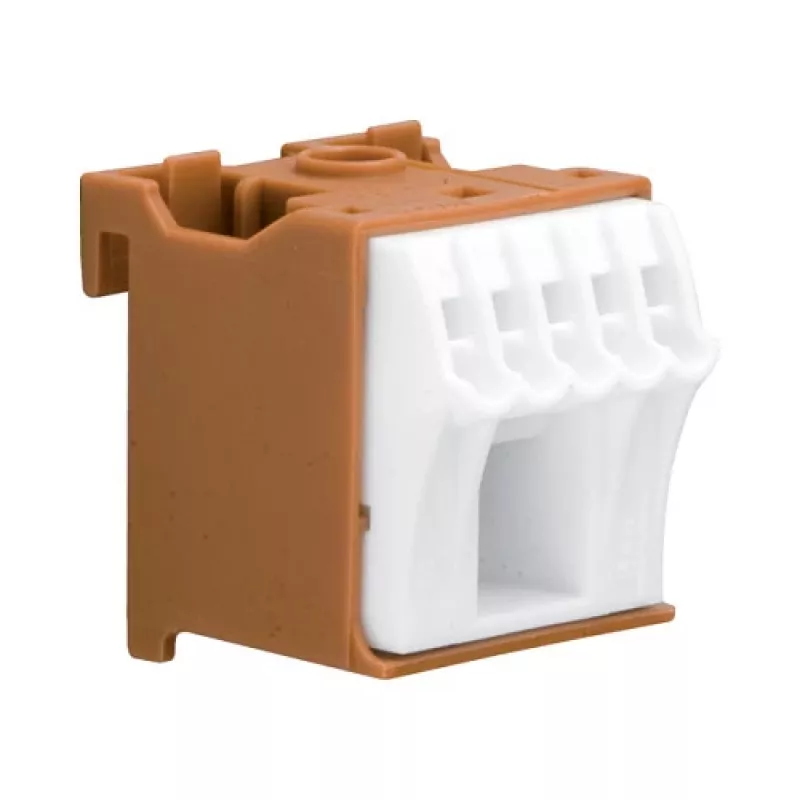

Hager KN06P 6-polige rijgklem 63A 230V bruin

The Hager KN06P is a high-quality 6-pole terminal block designed for reliable electrical connections in industrial and commercial installations. With a rated current of 63A and voltage of 230V AC, it ensures safe and efficient power distribution. The brown housing (RAL 8016) is made from durable thermoplastic, and the screw terminals accept rigid conductors up to 25 mm² or flexible up to 16 mm². Suitable for DIN rail (TS35) or screw mounting, this block offers IP20 protection and is rated for impulse withstand voltage of 4 kV.

Advantages

Robust screw terminal connection ensures secure and maintenance-free wiring. Compact 6-pole design saves space in distribution boards. High current rating of 63A supports demanding applications. Easy installation on standard DIN rail or direct screw mounting.

Suitable for

• Electrical distribution panels
• Industrial control cabinets
• Building automation systems
• Power supply connections

Key specifications

• Number of Poles: 6
• Rated Current: 63 A
• Rated Voltage: 230 V AC
• Connection Type: Screw Terminal
• Max. Conductor Cross-section (Rigid): 25 mm²
• Max. Conductor Cross-section (Flexible): 16 mm²
• Mounting Type: DIN Rail (TS35) / Screw Mounting
• IP Protection Rating: IP20
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Pollution Degree: 2
• Housing Material: Thermoplastic
• Conductor Material: Brass
• Color: Brown (RAL 8016)
• Operating Temperature: -5 to +40 °C
• Short-circuit Current Rating (Icw): 1.5 kA (1s)

Recommendations

For optimal performance, use with appropriate fuses or circuit breakers rated for 63A. Ensure conductors are properly stripped and tightened to the specified torque. This terminal block is ideal for new installations or retrofitting existing panels.
